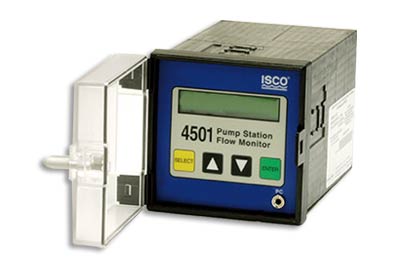

4501 Pump Station Monitor
- Portable, compact and easy to install
- Never needs calibration, and there are no level sensors to install
- Simply connect the inputs to anything that turns on or off when the pumps are activated, such as elapsed timers, indicator lights, or pump motor starters.
|
Overview
Specifications
Downloads
|
|
|
The 4501 pump station monitors lift station pumps as the wet well is filled and emptied. It then uses patented algorithms and the known volume between the levels in the wet well to calculate the flow into and out of the pump station and the rate of each pump. The 4501 measures pump capacity and influent flow at most pump stations to an accuracy of 1% by using drawdown calculations rather than the manufacturers pump curves Statistics show that intermittent electrical problems develop before the situation can be detected by an operator at over 30% of pump stations. The 4501 pump station flow monitor can uncover these problems as they occur and while repair is still simple and inexpensive. This can prevent sewer backups and other problems. The 4501 pump station monitoring system can detect abnormal activity such as:
Recorded data is stored in the 4501's memory for analysis on a PC running Isco Pumplink Software. Standard Features of the 4501
Services offered for this product
Applications
|
|
