SDI-12 Pressure / Temperature Sensor
- Water Level & Temperature
- All-in-One Device
- Ideal for Telemetry and Dataloggers
- Digital Accuracy
- Reading taken at the sensor - no analogue signals
|
Overview
Specifications
Downloads
|
|
|

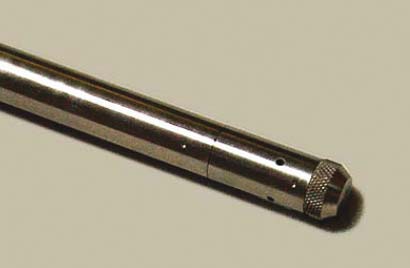

The AquiStar SDI-12 submersible pressure transmitter is capable of measuring temperature and pressure. It is an industry standard SDI-12 v1.3 water level sensor which is easy to interface to SDI-12 recorders. This makes it an ideal choice for applications which already have existing SDI-12 systems. The SDI-12 submersible pressure sensor is available in absolute and gauge versions in a variety of ranges from 5psi to 300psi. A variety of cable options are also available - polyethylene, polyurethane or PTFE/FEP. The SDI-12 submersible pressure transducer offers thermal performance, great noise immunity and transient protection. Enhanced calibration is an option on the 15 psig unit for improved accuracy. The sensor has an end cone which is interchangeable with a ¼" NPT inlet which allows for increased application use and easy hook up. It can be factory serviced and repaired saving on future upgrade and repair costs. Services offered for this product
Applications
|
|
