SITRANS 3100P Magflo Meter

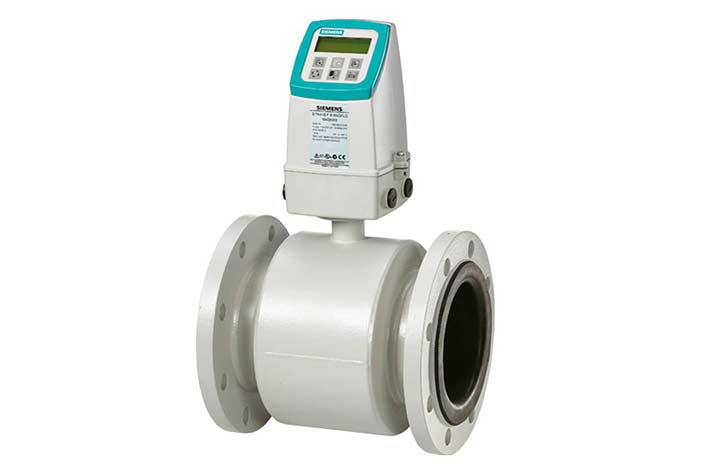

SITRANS MAG 3100P Magflo meter

  • Accuracy 0.2% +/- 1 mm/s
  • Ideal for almost all applications
  • RS Hydro are Siemens Stockists
Product Options

Overview

The SITRANS F M MAG 3100 P magflo meter is designed for use in most applications within the chemical and process industries. It has PTFE or PFA liners and Hastelloy electrodes in the most common combination.

The fully welded construction provides a ruggedness that fits almost every flow application. The 3100P magflo meter is designed for use in harsh environments with strong chemicals, high temperature and high pressures.

Benefits

  • Short lead time 5 days + transportation
  • Excellent chemical resistance also during high process temperature
  • Approved for hazardous areas
  • Designed to allow patented MAG in-situ verification using the SENSORPROM fingerprints

Manufactured by: Siemens-Milltronics
Model: SITRANS MAG 3100P Magflo meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Process industry
Chemical industry
Pulp and paper industry

Specification

Measuring Range 0 to 10 m/s
Nominal Sizes From DN 15 to DN 300 (1/2" to 12")
Accuracy 0.2 % ±1 mm/s
Operating Pressure Max. 40 bar (Max. 580 psi)
Ambient Temperature From -40 to 100 °C (-40 to 212 °F)
Medium Temperature From -20 to 130/150 °C (-4 to 266/302 °F)
Liners PFA
PTFE
Electrodes Hastelloy C22
Hastelloy C276
Materials Carbon steel with corrosion resistant two component epoxy coating
General Approval ATEX - 2 GD Zone 1, FM / CSA Class 1 div 2

Downloads

FAQ's

Yes, the ordering process is very easy. Orders can be made via purchase order or by credit/debit card. Once we have the paperwork we can delivery next day to any location in Europe. Provided with the equipment is a quick start guide, and if you need extra support, the technical support engineers can be contacted via phone call.
No, all of our flowmeters are competitively priced and rental is an ideal option for cutting costs to a fraction of a full priced new flowmeter.
Every flow meter is tested upon shipping and return as part of our ISO9001 procedure. Also, as part of this procedure, the flow meter is calibrated once a year. If a copy of the calibration certificate is needed let us know.
We are here to help. If the self-help and quick start guides do not help, then call one of our technical support engineers on +44 (0) 1527 882060. We have supplied and supported many clamp on rental installations throughout Europe.
First, contact us for a quote. If you are happy with the quote then send us a purchase order. Or alternatively call us with credit card details and fill out and send us a rental agreement form.
If the stock is permitting, and all paperwork is received by 12pm then flow meters can usually be available the next day.
The minimum hire period for flow meters is one week.
Once you have the meter you can rent it for as long as you need it. However, it would help if you can let us know that you wish to extend the rental period. Upon return the meter is off-hired and once checked and tested, an invoice will be issued to you. Also, if you extend your rental past a 4, 8 or 12 week rental threshold, then you are entitled to a discount.
You are only charged for the period of time for which you have the flowmeter. So, if a flowmeter is returned 3 days late you are only charged for 3 extra days, and each of these days is charged at one fifth of the weeks hire cost.
Normally, you will use your own courier but if you have any problems let us know and we can arrange a pick up the day after you notify us, but you will be charged for the carriage and this cost will be added to the invoice.
Without exception, all our flow meters are tested. If you need a 110v plug instead of the standard 230v plug let us know.
As long as the pipe is relatively clean, coatings or paint is usually not a problem for clamp on flow meters but if the pipe is corroded or the paintwork has bubbled then a quick sanding down with sandpaper or a wire brush is recommended.
An ultrasonic wall thickness gauge, that measures to within 0.05mm, is provided as standard with all flow meter rental packages.
The screendump facility on the integrated dataloggers on all our flow meters, allows you to photograph any screen and download it to your pc.
After the equipment has been shipped, it is the responsibility of the hirer. However, in our experience it is rare that any of our flow meters are damaged. Our flow meters are tough, as well as accurate, and reliable.
