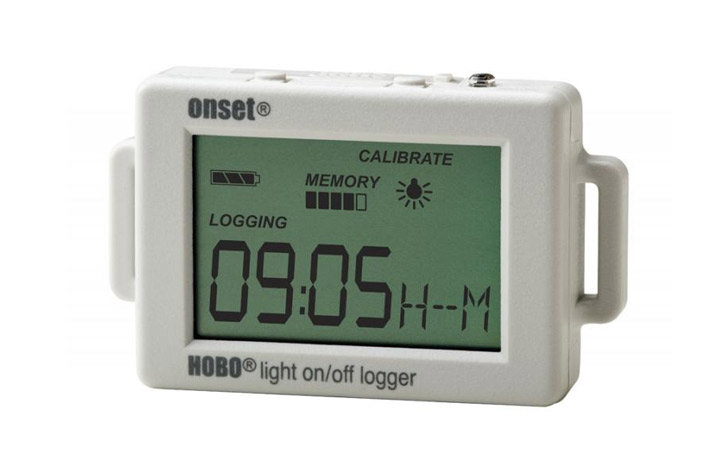

HOBO Light On/Off Data Logger
Product Options
Overview
The HOBO Light On/Off data logger monitors indoor light changes with an internal sensor and records light on and off conditions, making it ideal for building energy audits and light usage analysis. The HOBO UX90-002 Light On/Off Data Logger is available in a standard 128 KB memory model (UX90-002) capable of 84,650 measurements and an expanded 512KB memory version (UX90-002M) capable of over 346,795 measurements.
Manufactured by: Onset
Model: HOBO Light On/Off Data Logger
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Light on/off
Specification
| Temperature Sensor (MX2203) | |
| Light threshold | > 65 lux |
| Light type | LED, CFL, fluorescent, HID, incandescent, natural |
| Time accuracy | ±1 minute per month at 25°C (77°F) (see Plot A in manual) |
| Battery life | 1 year typical use |
| Memory | |
| UX90-002 | 128 KB (84,650 measurements, maximum) |
| UX90-002M | 512 KB (346,795 measurements, maximum) |
| Download type | USB 2.0 interface |
| Download time | 10 seconds for 128 KB; 30 seconds for 512 KB |
| Logger Operating Range | |
| Logging | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) |
| Launch/readout | 0° to 50°C (32° to 122°F) per USB specification |
| LCD | LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) |
| Weight | 23 g (0.81 oz) |
| Environmental rating | IP50 |
| The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | |
