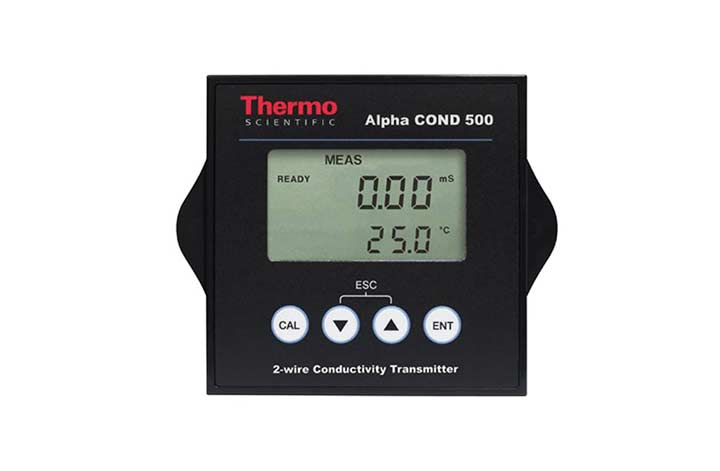

Alpha COND 500 Conductivity 2-Wire Transmitter
- Accurate Superb accuracy delivered across six conductivity ranges
- User Friendly This device is easy to use whilst delivering accurate results
Overview
RS Hydro are proud distributors of the Alpha COND 500 conductivity 2 wire transmitter, this user friendly device transmits clear, uninterrupted conductivity readings complete with temperature across six conductivity ranges. Reliable and accurate readings to ±1% accuracy are delivered at varying temperatures all with automatic temperature compensation, the offset adjustment function allows the user to adjust readings conveniently without the requirement to remove the electrode from the measurement tanl or pipe.
The Alpha COND 500 is low maintenance, calibration is a simple push button process which is quick, easy and no hassle making this meter one of the most user friendly conductivity meters.
This meter comes complete with a 1 year warranty.
Manufactured by: Eutech Instruments
Model: Alpha COND 500 Conductivity 2-Wire Transmitter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Specification
| Conductivity | |
| Range | ... to 19.99 µS/cm ; ... to 199.9 µS/cm ;
... to 1999 µS/cm ; ... to 10.00 mS/cm ; ... to 19.99 mS/cm ; ... to 199.9 mS/cm |
| Resolution | 0.01 µS/cm ; 0.1 µS/cm ; 1 µS/cm ; 0.01 mS/cm ; 0.1 mS/cm |
| Accuracy | ±1 % full scale |
| Cell Constant | k = 0.1, 1.0, 10.0 |
| Temperature | |
| Range | 0.0 to 110.0 °C |
| Resolution | 0.1 °C |
| Accuracy | ±0.5 °C |
| Sensor | Pt100; 2 or 3 wire |
| Compensation | Auto/manual |
| Coefficient | 0 to 10 % (selectable) |
| Normalization | 20.0 to 25.0 °C (selectable) |
| Transmitter | |
| Transmitter Function | 4 to 20 mA scalable outputs�????????????�???????????�??????????�?????????�????????�???????�??????�?????�????�???�??�?� for Conductivity |
| Out-Of-Range Current Output | 3.8 mA: ‘ON’ select selects 3.8 mA ‘OFF’ selects 4 mA (under range) Selects 20 mA (over range) |
| Hold Current Output | 22 mA: ‘ON’ select selects 22 mA ‘OFF’ selects last measured current value |
| Load | Max. 600 Ohm |
| Electrical Data and Connections | |
| Conductivity Input | 2-pin terminal |
| Conductivity Terminal | 3-pin & 8-pin terminal, detachable blocks |
| Display | |
| LCD | 7 segments display with symbols for status information |
| Power Supply | |
| Input | 12 to 24 VDC |
| EMC Specifications | |
| Emitted Interference | According to EN 61326 |
| Immunity To Interference | According to EN 61326 |
| Environmental Conditions | |
| Operating Temperature Range | 0 to 40 °C |
| Max. Relative Humidity | 80 % up to 31 °C decreasing linearly to 50 %Ã????????????Ã???????????Ã??????????Ã?????????Ã????????Ã???????Ã??????Ã?????Ã????Ã???Ã??Ã? at 40 °C |
