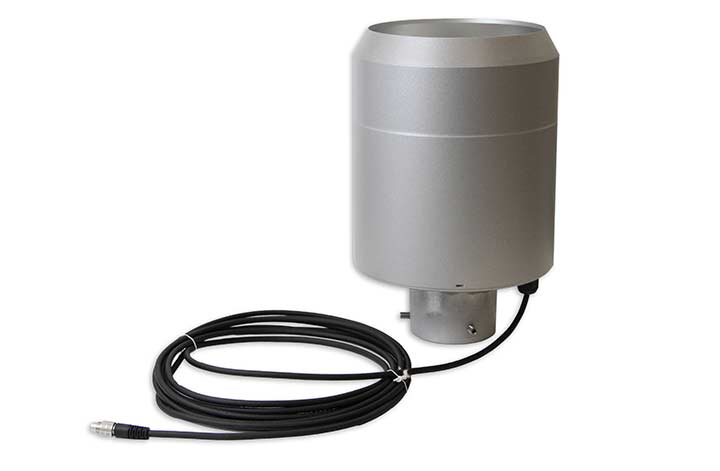

WMO Tipping Bucket Rain Gauge
- Professional Metorology Equipment Extremely robust and accurate device compliant to WMO requirements
- Variable Versions Available Heated version available for all year round measuring in cold climates
- Applicaitons Professional weather stations, hydrographics, hydrometrics, flood warning, industrial, municipal, utility rain guaging
- IN STOCK
Overview
Our Professional WMO approved Tipping Bucket Rain Gauge is an extremely accurate rainfall monitoring solution which is built to meet the needs of professional meteorologists. Our raingauges are made by one of the world's leading manufactrers of rain gauges which means they are very robust, with anodized aluminium bodies, cast aluminium bases and well balanced stainless steel spoons.
This rain gauge does exactly what the professional needs: measures rainfall to great accuracy with a well- balanced double tipping-bucket action. It requires very little maintenance.
The Professional Tipping Bucket Rain Gauge is available with 0.1mm and 0.2mm resolution and has an orifice size of 200cm2.
Long term accuracy is easily achieved with the Professional raingauge which requires hardly any calibration.
A sealed reed switch, capable of indefinite operation, and its solid mechanics ensure that this instrument has an extremely long working life with little need for maintenance and adjustment.
A spring mounted on the base of the funnel prevents bird droppings from clogging the inlet and a sharp edged ring around the orifice deters birds from landing on it.
A heated version is also available for year round measurements in cold climates.
Manufactured by: Adcon Telemetry
Model: WMO Tipping Bucket Rain Gauge
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Rainfall monitoring/intensity
WMO approved
0.1mm or 0.2mm 200cm2 versions
Specification
| Resolution in mm | 0.1 / 0.2 |
| Oriice in cm2 | 200 |
| Measuring Device | Double tipping bucket, made of stainless steel |
| Capacity / Minute | Ver, 0.1mm: 0-8mm/min Ver, 0.2mm: 0-16mm/min |
| Signal Output | Pulse Output (reed switch with two settings - normally open, or normally closed) |
| Pole Mounting | For poles up to 60mm |
| Weight | 2.1 kg (non-heated version) |
| Dimensions | H 292mm x Ø 190 mm |
| Material | Aluminium, anodised |
| Cable | 5m shielded |
| Operating Temperature | 0°C to 70°C (non-heated version) |
| Connector | 7-pin Binder |
| Heated Version | |
| Operating Temperature | -20°C to 70°C |
| Heating System | 2 heating circuits with electronic control system |
| Accuracy of Tem. Control | 4°C ±2°C from -20°C to 4°C |
| Heating Power | 150W |
| Supply Voltage | 24 VDC |
