Orion Dual Star Meter
- User Friendly Dual channel with simultaneous displayed measurements
- Retains Calibrations 10 methods stored per channel - retains calibrations among multiple electrodes
- Meter Prompts and Shortcut Keys
Overview

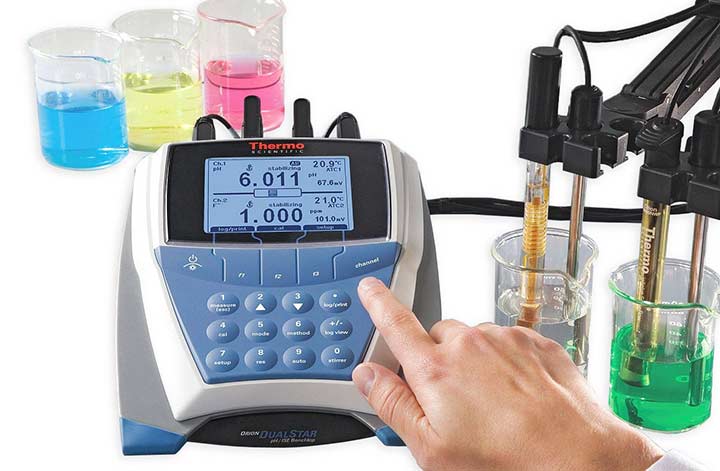

The Orion™ Dual Star™ meter features simultaneous display measurements with low concentration range reading stability. This is a user friendly device which features meter prompts and shortcut keys and the choice of five language settings: English, Spanish, French, German and Italian. An extremely handy feature is the capability of storing 10 methods per channel, the result of which is calibrations are stored among multiple electrodes.
The Orion™ Dual Star™ includes:
- Orion DUAL STAR Meter Only: 2115000 option includes quick start guide, swing arm electrode stand, RS-232 and mini-USB cables, stainless-steel ATC probe, universal power adapter and manual.
- Orion DUAL STAR Meter/Electrode: 2115101 option includes quick start guide, swing arm electrode stand, RS-232 and mini-USB to USB cables, stainless steel ATC probe, universal power adapter and manual, plus Ross™ Ultra Electrode 8102BNUWP
- Orion DUAL STAR Meter/Electrode: 2115102 option includes quick start guide, swing arm electrode stand, RS-232 and mini-USB to USB cables, stainless steel ATC probe, universal power adapter and manual , plus Ross Ultra pH/ATC Triode™ refillable electrode 8157BNUMD
- Orion DUAL STAR Meter Kit: 2115001 option includes quick start guide, electrode stand, RS-232 and mini-USB to USB cables, stainless-steel ATC Probe, universal power adapter and manual, plus Orion™ ROSS™ Ultra electrode 8102BNUWP and pint bottles of 4, 7 and 10 buffer and Orion™ ROSS™ electrode storage solution
Compatible with:
- 096019 Orion™ stirrer probe with paddle
- AT5050 Orion™ AutoTration™ -500 48-position autosampler
- AT5150 Orion™ AutoTration™ -500 28-position autosampler
- 8102BNUWP Orion™ ROSS™ Ultra pH electrode
- 8157BNUMD Orion™ ROSS™ Ultra pH/ATC Triode refillable electrode
- 9609BNWP Fluoride ion selective electrode
- 9512HPBNWP Ammonia ion selective electrode
Manufactured by: Thermo Scientific
Model: Orion Dual Star Meter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
pH
ISE
mV/Rel
mV/ORP
Temperature
Specification
| Accuracy (ISE) | ±0.2 mV or ±0.05 of reading, whichever is greater |
| Accuracy (mV) | ±0.2 mV or ±0.05% of reading whichever is greater |
| Accuracy (pH) | ±0.002pH |
| Data Points | 1000 |
| Description | Orion DUAL STAR pH/mV/ISE/Temperature Dual Channel Benchtop Meter |
| Display Type | Graphic LCD with backlight |
| Inputs | 2 BNC (pH or ISE), 2 x 8-pin Mini-DIN (temperature), 2 reference pin-tip, stirrer input |
| Outputs | USB, RS232 |
| Power Supply | Universal 90-260 VAC (included) |
| Range (ISE) | 0 to 19999 in ppm, M, %, ppb or unitless |
| Range (mV) | ±1999.9mV |
| Range (pH) | -2.000 to 19.999pH |
| Resolution (ISE) | Up to 3 significant digits |
| Resolution (mV) | 0.1mV |
| Resolution (pH) | 0.1, 0.01, 0.001pH |
| Temperature (English) Operating | 41° to 113°F |
| Temperature (Metric) Operating | 5 to 45°C |
| Accuracy (Temperature) | ±0.1°C |
| Range (Temperature) | -5 to +105°C |
| Resolution (Temperature) | 0.1°C |
| Warranty | 3 year meter replacement |
| Certifications/Compliance | IP-54 |
| Advanced ISE Functions | Linear point to point, non-linear selectable auto-blank, incremental techniques including single known addition and subtraction, double known addition and subtraction |
| Calibration Points (pH) | 2 to 6 |
| Calibration Points (ISE) | 1 to 6 |
| Calibration | pH, ORP, relative mV, ISE |
| Hertz | 50/60Hz |
| Includes | DUAL STAR Meter with Electrode Stand; Universal Power Adapter; 927007MD Stainless Steel ATC Probe |
| Voltage | 90 to 260VAC |
| Relative Humidity | 5 to 85 %, non-condensing |
