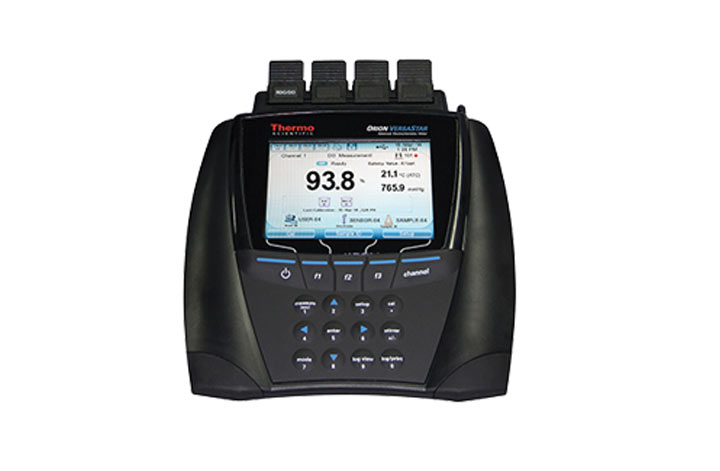

Orion VERSA STAR DO Benchtop Meter

Orion VERSA STAR DO Benchtop Meter

  • Direct Control Meter allows control of two Orion Star stirrer probes
  • User Friendly Clear display prompts with display of relevant information
  • Warranty This product comes with a three year warranty
  • Multi Language Feature
Product Options

Overview

The Orion™ VERSA STAR™ DO Benchtop Meter is an advanced electrochemistry meter which has many attractive features such as including a dissolved oxygen/temperature module and providing four channels that can be customized with any of the five available modules. All readings, connections, time, date, sample ID, user ID and calibration information are displayed on the large screen. Simple prompts make using this meter a very simple process. The large 2000 data point memory stores all readings time and date stamped, the transfer of this data and meter software updates is easy using the two USB ports and RS232 ports.

Other features which make this meter the ideal option are:

  • Meter allows direct control of two Orion Star stirrer probes for mixing samples without a stir plate
  • Electrode arm and newly designed probe holder make it easier to maintain and place probes into samples
  • IP54-rated housing withstands splashes
  • Universal power adapter works with almost every AC power source

VERSA STAR Dissolved Oxygen/RDO Module, VSTAR-RD:

  • Dissolved oxygen as percent saturation or concentration with temperature measurements
  • Flexibility to use Orion polarographic or RDO optical dissolved oxygen probes with automatic meter recognition of the probe type
  • Calibration options for water-saturated air, air-saturated water, custom value using a Winkler titration or zero point
  • Automatic compensation for temperature and barometric pressure with option for automatic or manual salinity correction

Manufactured by: Thermo Scientific
Model: Orion VERSA STAR DO Benchtop Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Accuracy (Polarographic DO) ±0.2 mg/L; ±2 % saturation
Accuracy (RDO) ±0.1mg/L up to 8mg/L, ±0.2mg/L from 8 to 20mg/L, 10% of reading from 20 to 50mg/L; ±2 % saturation
Data Points 2000
Description Orion VERSA STAR Benchtop Meter with VSTAR-RD RDO/DO/Temperature Module
Display Type Color graphic LCD with user-customizable options
Hertz 50/60Hz
Inputs 9-pin Mini-DIN (RDO or polarographic DO with temperature probe), 2 stirrer inputs
Outputs USB, RS232
Range (Polarographic DO) 0 to 90 mg/L; 0 to 600 % saturation
Range (RDO) 0 to 50 mg/L; 0 to 500 % saturation
Relative Humidity Range 5 to 85 %, non-condensing
Resolution (Polarographic DO) 0.01, 0.1 mg/L; 0.1, 1 % saturation
Resolution (RDO) 0.01, 0.1 mg/L; 0.1, 1 % saturation
Salinity Factor 0 to 45ppt
Saturation Range (RDO) 0 to 500% Saturation
Saturation Range (Polarographic DO) 0 to 600% Saturation
Sensor Types Polarographic or RDO (optical) DO probe - purchase separately
Accuracy (Temperature) ±0.1°C
Range (Temperature) -5 to +105°C
Resolution (Temperature) 0.1°C
Voltage 90 to 260VAC
Warranty 3 year meter replacement
Percent Saturation Resolution (RDO) 0.1, 1% Saturation
Calibration Modes Water-saturated air, manual (Winkler), air-saturated water, zero point
Certifications/Compliance IP-54
Percent Saturation Relative Accuracy (Polarographic DO) ±2% Saturation
Percent Saturation Relative Accuracy (RDO) ±2% Saturation
Percent Saturation Range (Polarographic DO) 0 to 600% Saturation
Saturation Range 0 to 600 % Saturation(polarographic); 0 to 500 % Saturation(RDO)
Saturation Resolution 0.1, 1% Saturation
Electrical Requirements 90 to 260VAC 50/60Hz
