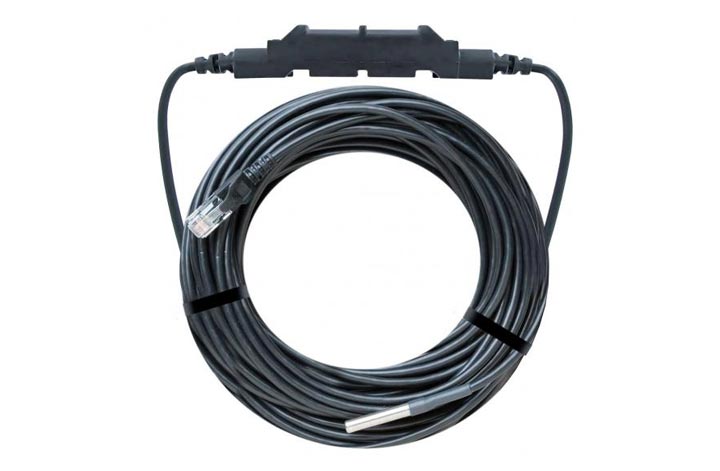

12-Bit Temperature Smart Sensor

Product Options

Overview

The 12-bit Temperature Smart Sensor provides < ± 0.2° C total accuracy (< ±0.36° F) and resolution of < ± 0.03° C (< ±0.054° F) over the range of from 0° to 50° C (32° to 122° F). The full measurement range is -40° to 100° C (-40° to 212° F). A selectable measurement-averaging feature further improves accuracy. Available in cable lengths of 2m, 6m and 17m.

Also available in a wireless model for use with the HOBOnet Field Monitoring System.

Manufactured by: Onset
Model: 12-Bit Temperature Smart Sensor

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Temperature
Water temperature

Specification

Measurement Range -40° to 100°C (-40° to 212°F) – sensor tip
Accuracy < ±0.2°C from 0° to 50°C (< ±0.36°F from 32° to 122°F)*
Resolution <0.03°C from 0° to 50°C (<0.054°F from 32° to 122°F)
Drift <0.1°C (0.18°F) per year**
Response Time (to 90% of change) <2 minutes typical in 2 m/sec (4.5 mph) moving air flow
<1 minute typical in stirred water bath
Environmental Operating Ranges Smart sensor adapter: -40° to 75°C (-40°F to 167°F); weatherproof, IP67
Stainless-steel sensor tip and cable jacket: Waterproof over the range of -40° to 50°C (-40°F to 122°F) for 1 year; operation up to 100°C (212°F) in air
Housings Stainless steel waterproof sensor tip; weatherproof polyamide housing for smart sensor adapter
Dimensions Temperature probe: 5.0 x 26 mm (0.2 x 1.0 inches)
Weight 2 meter: 0.09 g (3.3 oz)
6 meter: 0.14 g (5.2 oz)
17 meter: 0.30 g (11.2 oz)
Bits per Sample 12
Number of Data Channels*** 1
Measurement Averaging Option Yes
Cable Lengths Available 2 m (6.6 ft) S-TMB-M002
6 m (19.7 ft) S-TMB-M006
17 m (55.8 ft) S-TMB-M017
Length of Smart Sensor Network Cable 0.5 m (1.6 ft) for all models
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
*Radiation Shield strongly recommended for use in sunlight (listed in Compatible Items)
**The drift specification of <0.1°C (0.18°F) per year may be exceeded when using the probe continuously in water >50°C (122°F).
***A single HOBO station can accommodate 15 data channels and up to 100 m (328 ft) of smart sensor cable (the digital communications portion of the sensor cables).
