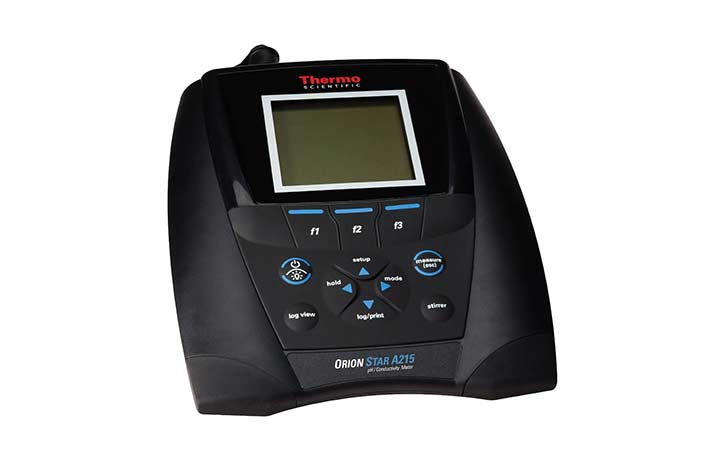

A215 pH/Conductivity Benchtop Multiparameter Meter

A215 pH/Conductivity Benchtop Multiparameter Meter

  • Durable and Dependable IP54 rated housing handles splashes
  • Warranty This product comes with a three year warranty
  • Large Memory Nonvolatile memory holds up to 2000 data points
  • Advance User Settings Featuring stability and averaging choices
Product Options
STARA2155

Overview

Get all the information you need quicker and easier using the Thermo Scientific™ Orion Star™ A215 pH/Conductivity Benchtop Multiparameter Meter. All information is clearly displayed on the large backlit graphic LCD which shows individual pH/mV/RmV or conductivity/TDS/salinity and resistivity results all with temperature and the option of all results at the same time. The A215 pH/Conductivity Benchtop Multiparameter Meter also provides additional information for ease of use such as electrode status, time, date, sample ID, user ID and calibration. Readings will never be missed using the AUTO-READ™ feature which locks in stable readings, all of which can be viewed in a choice of supported languages - English, Spanish, French, Italian, German and Chinese.

There are many additional features to using the A215 Meter and these are:

  • Errors can be fixed without the need for a complete calibration with up to five point pH calibration with automatic recognition for USA/NIST™ and DIN buffers and calibration editing
  • Use two or four cell conductivity cells with selectable cell constant
  • Selection of reading reference temperatures of 5, 10, 15, 20 or 25°C with linear, nonlinear nLFu or EP curve options for accurate conductivity results
  • Choice of practical salinity or natural sea water curves for salinity readings
  • Easy transfer of data and option to keep data up to date with the USB and RS232 ports and data analysis software
  • Samples can easily be mixed without a stir plate with direct control of the Orion Star stirrer probe (096019) sold separately
  • Nonvolatile memory which holds up to 2000 data points
  • IP54 rated housing handles splashes
  • Included electrode arm and newly designed probe holder makes it easier to maintain and place probes into samples

Manufactured by: Thermo Scientific
Model: A215 pH/Conductivity Benchtop Multiparameter Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Accuracy (mV) ±0.2 mV or ±0.05% of reading whichever is greater
Accuracy (pH) ±0.002pH
Data Points 2000
Description Orion Star A215 pH/mV/Conductivity/TDS/Resistivity/Salinity/Temperature Benchtop Meter
Display Type Graphic LCD with backlight
Inputs BNC (pH), 8-pin Mini-DIN (conductivity with temperature probe or ATC probe), reference pin-tip, stirrer input
Outputs USB, RS232
Range (mV) ±2000.0mV
Range (pH) -2.000 to 20.000pH
Resolution (mV) 0.1mV
Resolution (pH) 0.1, 0.01, 0.001pH
Temperature (Relative Accuracy) ±0.1°C
Temperature Range -5 to +105°C
Resolution (Temperature) 0.1°C
Warranty 3 year meter replacement
Certifications/Compliance IP-54
Calibration Points (pH) 1 to 5
Range (Conductivity) 0.001 µS/cm to 3000 mS/cm
Resolution (Conductivity) 0.001 µS minimum, 4 significant digits minimum
Relative Accuracy (Conductivity) 0.5% of reading ±1 digit
Conductivity Reference Temperatures (Metric) 5, 10, 15, 20, 25°C
Calibration Points (Conductivity) Up to 5
Range (Resistivity) 2 ohm to 100 meg-ohm
Resolution (Resistivity) 2ohms-cm
Relative Accuracy (Resistivity) 0.5% of reading ±1 digit
Range (Salinity) 0.01 to 80.0 ppt NaCl equivalent; 0.01 to 42 ppt practical salinity
Resolution (Salinity) 0.01ppt
Relative Accuracy (Salinity) ±0.1ppt
Salinity Measurement Modes Practical salinity or natural sea water (NaCl equivalent)
Range (TDS) 0 to 200ppt
Resolution (TDS) 4 significant digits
Relative Accuracy (TDS) 0.5% of reading ±1 digit
TDS Factor Range Linear 0.01 to 10.00
Accuracy (Temperature) ±0.1°C
Conductivity (Range) 0.001 µS/cm to 3000 mS/cm
Conductivity (Relative Accuracy) 0.5% of reading ±1 digit
Conductivity (Resolution) 0.001 µS minimum, 4 significant digits minimum
pH Calibration Points 1 to 5
pH Relative Accuracy ±0.002pH
Range (Temperature) -5 to +105°C
Temperature (Reference) 5, 10, 15, 20, 25°C
