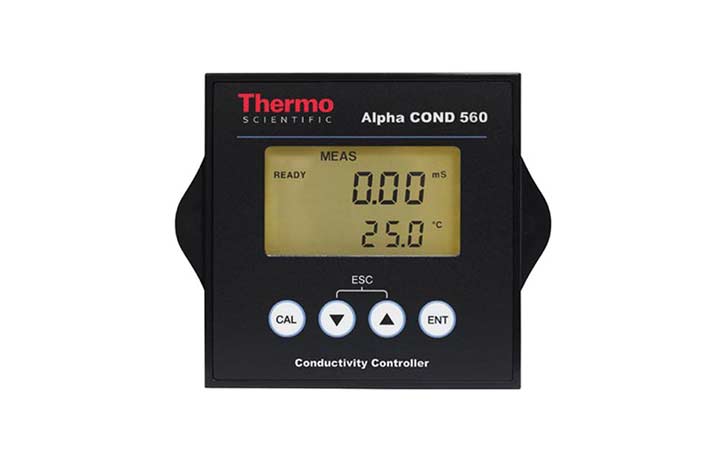

Alpha COND 560 Conductivity Controller

  • Superb Accuracy Accuracy delivered across six conductivity ranges
  • Warranty This product comes with a one year warranty
Product Options

Overview

RS Hydro are proud distributors of the Alpha COND 560, this conductivity controller delivers superb accuracy across six conductivity ranges with temperatures being controlled by automatic temperature compensation to ensure accuracy is delivered at every measurement. Process control is simplified through the Alpha COND 560 controller with seperately adjustable high/low hysteresis, with two switching contacts that act as set-point relays. In addition to this the user can set a time delay of up to 2000 seconds for minimal chattering and false alarms.

Handy features to ease the use for the use is the push button operation for easy set-up, programming and customization and a large UV light protected LCD with backlight.

This product is covered by a 1 year warranty.

Manufactured by: Eutech Instruments
Model: Alpha COND 560 Conductivity Controller

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Conductivity
Range ... to 2 µS/cm ; ... to 20 µS/cm ;
... to 200 µS/cm ; ... to 2000 µS/cm ;
... to 20 mS/cm ; ... to 200 mS/cm
Resolution 0.001 µS/cm ; 0.01 µS/cm ;
0.1 µS/cm ; 1 mS/cm ;
0.01 mS/cm ; 0.1 mS/cm
Accuracy ±1 % full scale
Cell Constant k = 0.1, 1.0, 10.0
Temperature
Range -10.0 to 125.0 °C / 14.0 to 157.0 °F
Resolution 0.1 °C / 0.1 °F
Accuracy ±0.5 °C / ±0.9 °F
Sensor Pt100; 2 or 3 wire
Compensation Auto/manual
Coefficient 0 to 10 % (selectable)
Normalization 20.0 to 25.0 °C (selectable)
Controller
Set Point 1 (SP1) /
Set Point 2 (SP2)
... to 2 µS/cm or ... to 20 µS/cm or
... to 200 µS/cm or ... to 2000 µS/cm or
... to 20 mS/cm or ... to 200 mS/cm
Switching Conductivity Hysteresis 0 to 10 % full scale reading
Function (Switchable) Limit control; off
Pickup/Dropout Delay 0 to 2000 sec
Contact Outputs 2 SPST relays
Switching Voltage/Current Power 1/8 HP:
at 125 VAC / max. 0.74 A / max. 93 VA
1/8 HP:
at 250 VAC / max. 0.37 A / max. 93 VA
Electrical Data And Connections
Conductivity Input 2-pin terminal
Connection Terminal 2-pin & 8-pin terminal, detachable blocks;
DC jack
Display
LCD 7 segments display with symbols for status information
Backlight Yes (on/off selectable)
Power Supply
Input 12 to 24 V DC or 9 V DC
EMC Specifications
Emitted Interference According to EN 61326
Immunity To Interference According to EN 61326
Environmental Conditions
Operating Temperature Range 0 to 40 °C
Max. Relative Humidity 80 % up to 31 °C decreasing linearly to 50 %
at 40 °C
Mechanical Specifications
Dimensions (WxHxD) 96 x 96 x 66 mm
Weight 210 g (unit) / 310 g (packed)
Ingress Protection IP65
