MicroFlu-blue Fluorometer

MicroFlu-blue Fluorometer

  • Innovative Miniaturized Design versatile in water quality and waste water applications
  • Depth Rating upto 500m underwater
  • Fully RS232 Controllable RS232 auto power down when not connected
Product Options

Overview

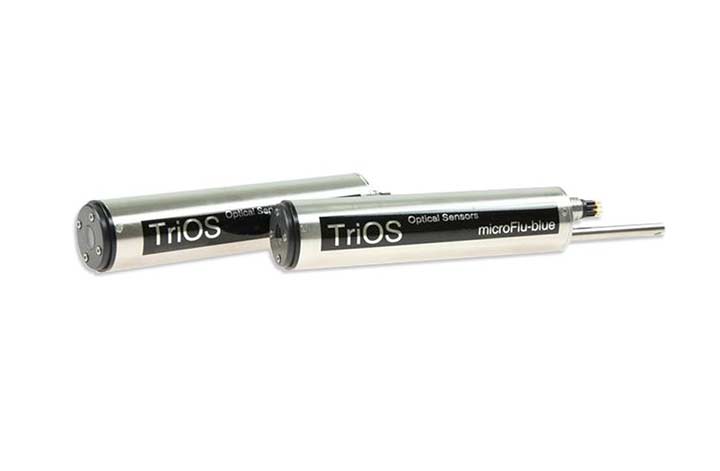

The MicroFlu Fluorometer is a low cost, miniaturized, submersible fluorometer for high precision measurements of cyanobacteria. It combines low power consumption and an innovative nano coating making it ideal for blue algae monitoring in applications such as rivers, lakes, seawater and for generally monitoring fields in water quality and waste water.

The MicroFlu's miniaturized design with long term stability makes this fluorometer extremely versatile and cost-effective. It can also be combined with a bluetooth battery pack Pocket-Power BT and the software Pocket-MSDA for operation with PDAs or mobile phones making it suitable for in-situ and field measurements.

Internal reference measurement of the emitted light compensates aging effects of the advanced LEDs, used for fluorescence excitation.

Manufactured by:
Model: MicroFlu-blue Fluorometer

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Light Source Ultra bright red LED (excitation: 620nm)
Detector Photodiodes with internal interference filter (emmission: 655nm)
Ranges 0.20 ug/l, 0.200 ug/l (other ranges on request)
Sensitivity 0.02 ug/l
Interface RS232 and one 0.5 V analogue output
Power Supply 5 - 15 VDC, max. 200mW
Construction stainless steel or titanium
Size 48 x 217mm
Depth Rating 500m
Connector SubConn Micro 5-pin, male
Weight in Air 0.7kg (stainless steel), 0.5kg (titanium)
