FieldCAL - Spectral field calibration device

FieldCAL

  • Low Power Consumption long lasting for use in the field
  • Ideal for RAMSES Radiance and Irradiance Devices special adapter included
  • Easy to Use
Product Options

Overview

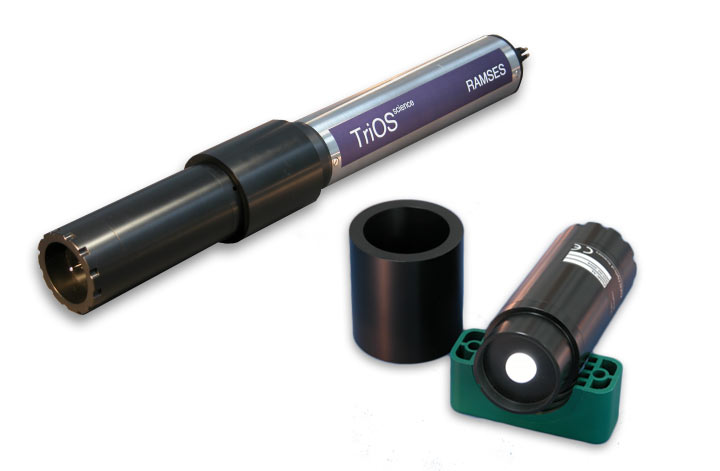

The FieldCAL device performs quick and reliable calibration checks for the RAMSES hyperspectral radiometer. It's technical advancements means radiance and irradiance (without adapter cone) devices can be checked in the field. Its specialist design makes the FieldCAL small with a low power consumption resulting in a very useful instrument for light measurement systems.

Specifically for radiance sensors, a special adapter cone is included in the set, all provided in a rugged transport for easy and safe transportation.

Manufactured by:
Model: FieldCAL

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Spectral Range

430 - 730 nm (measurement)

310 - 950 nm (with extrapolation software)

Light Source super-bright white LED with spherical diffuser
Stability typically better than 1% after 1 minute
Battery Pack 4 cell type AA; non rechargeables
Operation Time typically 50 hours per battery
Material POM, seawater resistant plastic, black
Size d = 50mm x 140mm
Operation Temperature 0 - 40C

Downloads
