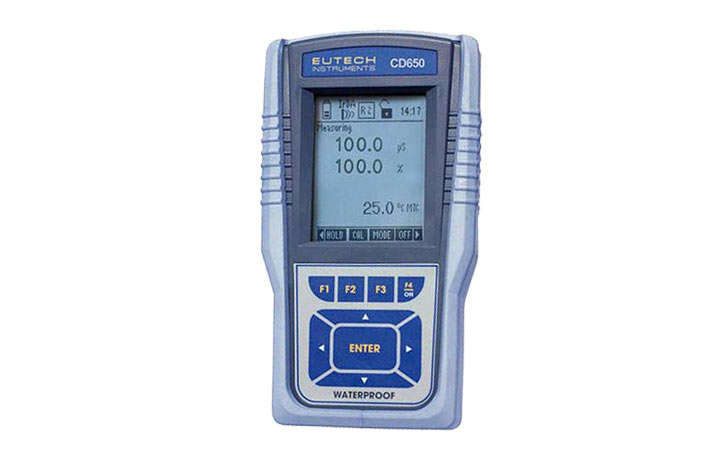

Eutech Multiparameter CyberScan CD 650

CyberScan CD 650

  • Multi-Parameter Conductivity, dissolved oxygen, salinity, temperature and pressure compensation in one handheld meter
  • Suitable for Harsh Conditions Waterproof and dustproof due to its IP67 rated housing
  • Informative Display Display shows electrode status report, calibration data and simultaneous display of up to 4 parameters
  • Conductivity / Total Dissolved Solids / Salinity / Resistivity / Dissolved Oxygen / Temperature
Product Options
ECCDWP65043K

Overview

The Eutech CyberScan CD 650 enables simultaneous measurement and display of conductivity and dissolved oxygen, accepting two-cell and four-cell conductivity probe to measure up to 500 m/s in pure water. This unique handheld is capable of measuring 90.00mg/L in DO concentration and 600% in DO saturation - this is one of the widest dissolved oxygen measurement ranges offered on the market today.

There is a choice of selectable multi-point calibration for more accurate conductivity measurements or single-point calibration for quick and easy calibration with no mistakes up to ±1% full scale accuracy at 3 decimal resolution across a wide measurement range. Fast and easy DO calibration with 100% calibration option against atmospheric air or 0% calibration against a zero solution. Salinity, temperature and pressure compensation readings are delivered accurately under varying conditions.

A large display screen displays electrode status report, calibration data and simultaneous display of up to 4 parameters. The CyberScan CD 650 is housed in a rugged IP67 rated waterproof casing ideal for applications in harsh environments

This device is easy to set up, calibrate and trouble shoot by following easy to understand prompt messages. Recorded readings are individually time and date stamped in GLP compliant format, auto logging meter saves readings automatically within seconds to prevent data loss. A handy HI-LO limit alarm is fitted for easy quality control alerting the user when readings fall outside selected ranges. Information is easily transferred from the meter using wireless information technology which has no wires or cables - data from the meter is transferred to a computer at the press of a button.

Manufactured by: Eutech Instruments
Model: CyberScan CD 650

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Environmental: water quality monitoring, monitoring health of aquatic ecosystems, groundwater drinking supplies, and meet EPA regulations.
Water quality testing: Water analysis of hard water, drinking water, effluent water and process water.
Industrial: For checking metal finishing, printing fountain solutions, cooling tower water, boiler water, rinse tanks, pollution control, waste water and industrial process solutions. Ideal for quality assurance testing and food analysis.
Aquacultural: monitoring oxygen levels in fish farming applications.

Specification

DO Range 0 to 90.00 mg/L or ppm / 0 to 600%
Resolution & Accuracy 0.01 mg/L or ppm / 0.1% ; ±0.2mg/L / ±0.2%
Salinity Correction Automatic
Resolution & Accuracy 0.0 to 50.0ppt & 0.1 ppt
Barometric Pressure Correction Automatic correction with built-in sensor
Resolution & Accuracy 450 to 825 mmHg / 59.9 to 109.9 kP &
0.1 mmHg or 0.1 kPa
Conductivity Range .. to 500 mS/cm
Resolution & Accuracy 0.05% FS & ±1% FS + 1 LSD
Cell Constant 0.010 to 10.000
Temperature Coefficient Linear & Pure
TDS Range .. to 500.0 ppt
Resolution & Accuracy 0.05% FS & ±1% FS +1 LSD
Salinity Range 0 to 80 ppt
Resolution & Accuracy 0.05% FS & ±1% FS +1 LSD
Temperature Range -10.0 to 110.0°C / 14.0 to 230.0°F (Meter)
Resolution & Accuracy 0.1°C/°F & ±0.5°C/ ±0.9°F
Temperature Compensation Automatic / Manual (0 to 100°C)
Memory 500 Data Sets with Date/Time stamping &
Security password protection
Output IrDA Wireless Communications
Display Multi-data Back-lit dot matrix; 7.2 cm (H) X 5.4 cm (W)
Special Functions Auto-Calibration; Data-logging options with time/date indexed, GLP compliance; Simultaneous Display and measurement of 4 parameters; Cal-due alarm; pH slope/offset Display & Self-diagnostic
Power 4 X 1.5 V "AA" Alkaline batteries or 9 V DC adapter, 500 mA
