RS Hydro - Eutech CyberScan PD 650

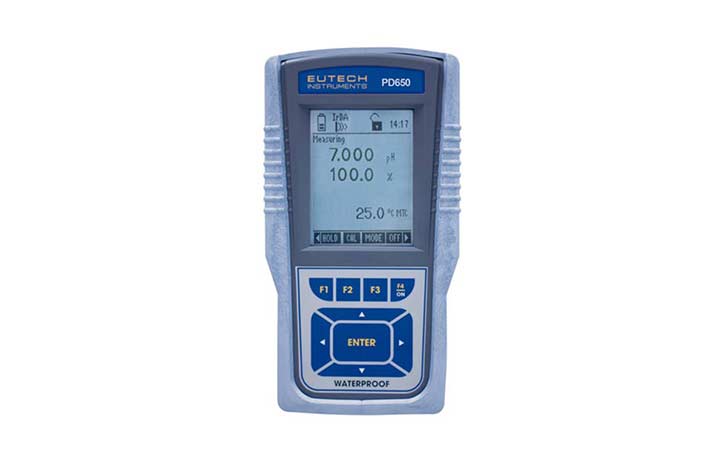

CyberScan PD 650

  • Multi-Parameter Dissolved oxygen, pH, salinity, temperature and pressure compensation in one handheld meter
  • Built-In Datalogger Up to 500 time and date stamped data sets can be stored
  • Suitable for Harsh Environments IP67 rated housing makes the PD 650 waterproof and dustproof
Product Options


Eutechs CyberScan PD 650 is the ideal device to use in the field for collecting accurate results to ±1 % full scale accuracy at 3-decimal resolution across a wide measurement range. Measuring 90.00mg/L in DO concentration and 600% in DO saturation, this is currently one of the widest dissolved oxygen measurement ranges offered in the handheld market today. Fast and easy DO calibration with 100% calibration option against atmospheric air or 0% calibration against a zero solution.

Handy features which make the CyberScan PD 650 the optimum choice are the HI-LO limit alarm feature which alerts when readings fall outside selected ranges. The auto logging function which records up to 500 data sets time and date stamped in GLP compliant format, results are saved within seconds in the non-volatile memory protecting against data loss, information and meter settings. Ion measurement capabilities with 3 digit resolution. Selectable multi-point calibration for advanced conductivity measurements or single point calibration option for quick, convenient calibration with no mistakes plus a calibration alarm to alert the user so there will never be out-dated calibration settings. The CyberScan PD 650 does not require any warm up time due to the galvanic system of measurement.

All information is displayed on the large display screen detailing electrode status report, calibration data and simultaneous display of up to 4 parameters.

Setting up the meter is a simple process by following the prompt, easy to understand on screen messages, calibration and trouble shooting messages are all displayed on the screen clearly for the user to follow. The transfer of data is a simple process with a simple press of a button using wireless information technology; no wires or cables.

The CyberScan PD 650 is rugged and ideal to use in harsh conditions in the field as it is housed in an IP67 rated waterproof casing with the advantage of being able to float! This meter is covered by a 3 year meter warranty.

Manufactured by: Eutech Instruments
Model: CyberScan PD 650

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance


Environmental: water quality monitoring, monitoring health of aquatic ecosystems, groundwater drinking supplies, and meet EPA regulations.
Water quality testing: Water analysis of hard water, drinking water, effluent water and process water.
Industrial: For checking metal finishing, printing fountain solutions, cooling tower water, boiler water, rinse tanks, pollution control, waste water and industrial process solutions. Ideal for quality assurance testing and food analysis.
Aquacultural: monitoring oxygen levels in fish farming applications.


pH Range -2.000 to 20.000 pH
Resolution & Accuracy 0.1/0.01/0.001 pH & ±0.002 pH
No. of pH Calibration Points 1 (Offset) to 6 points
pH Buffer Options USA, NIST, DIN, PWB, Custom
mV Range ±2000.0 mV
Resolution & Accuracy 0.1 mV & ±0.2 mV
Ion Concentration Range 0.001 to 19900
Resolution & Accuracy 2 or 3 digits & ±0.5% FS (mono); 1% FS (div)
No. of Ion Calibration Pts Up to 8
DO Range 0 to 90.00 mg/L or ppm / 0 to 600%
Resolution & Accuracy 0.01 mg/L or ppm / 0.1% ; ±0.2mg/L / ±0.2%
Salinity Correction Automatic
Resolution & Accuracy 0.0 to 50.0ppt & 0.1 ppt
Barometric Pressure Correction Automatic correction with built-in sensor
Resolution & Accuracy 450 to 825 mmHg / 59.9 to 109.9 kP &
0.1 mmHg or 0.1 kPa
Temperature Range -10.0 to 110.0 °C / 14.0 to 230.0 °F (Meter)
Resolution & Accuracy 0.1°C/°F & ±0.5°C/ ±0.9°F
Temperature Compensation Automatic / Manual (0 to 100°C)
Memory 500 Data Sets with Date/Time stamping &
Security password protection
Output IrDA Wireless Communications
Display Multi-data Back-lit dot matrix; 7.2 cm (H) X 5.4 cm (W)
Special Functions Auto-Calibration; Data-logging options with time/date indexed, GLP compliance; Simultaneous Display and measurement of 4 parameters; Cal-due alarm; pH slope/offset Display & Self-diagnostic
Power 4 X 1.5 V "AA" Alkaline batteries or 9 V DC adapter, 500 mA
