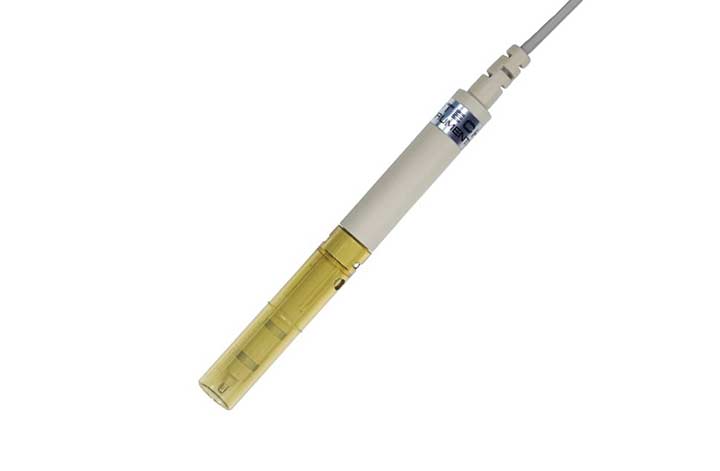

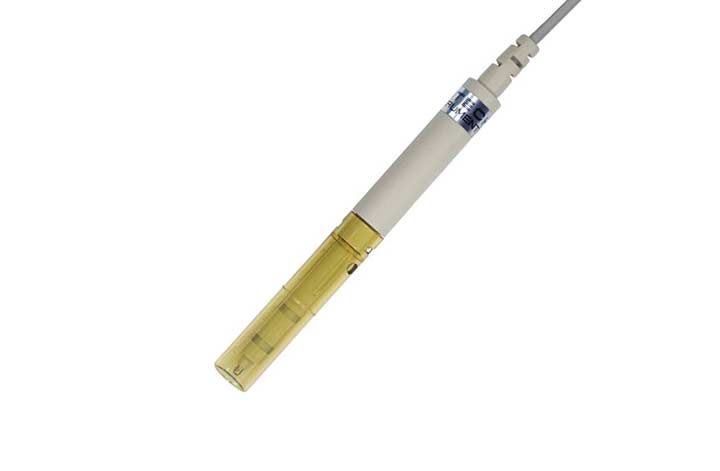

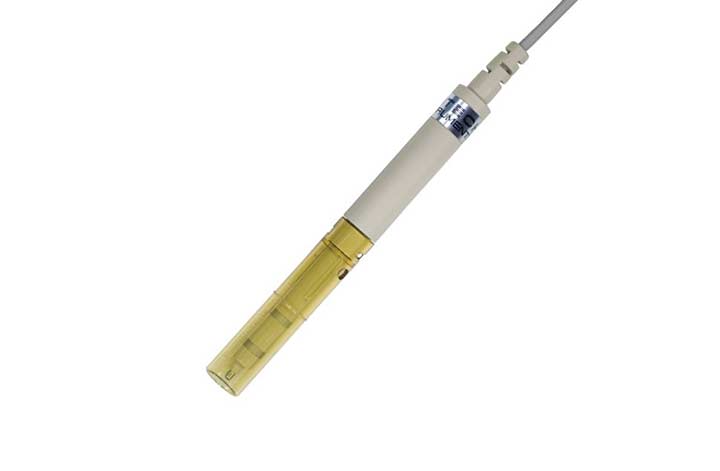

Conductivity electrode with stainless steel rings, PBT and ultem body

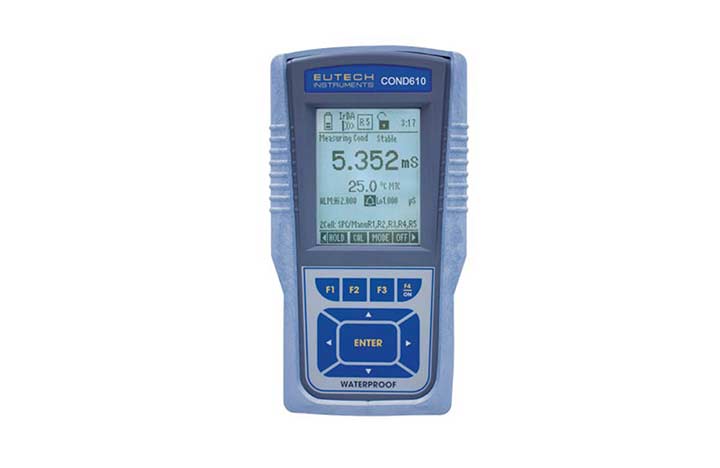

CyberScan COND 610
- Advanced Data Management Meter logs reading automatically within seconds of measurement
- Wider Measuring Range Up to 5 Conductivity ranges in one meter with convenient auto-ranging capabilities
- Warranty This product is covered by a 3 year meter warranty
Product Options
Overview
The CyberScan COND610 benefits from the capability to measure pure water or seawater, it has a broad conductivity range of up to 500mS with auto-ranging capabilities and even measures pure water with pure water temperature coefficient option. A mega-memory space stores and recalls up to 500 data sets with temperature readings and time/date stamping formatted to meet GLP standards. Accuracy is ensured with ±1% full scale accuracy at 3-Decimal resolution.
Featuring a large easy to read custom screen which displays readings, calibration and status data which allows optimum viewing with user-friendly icons, a hold function which momentarily freezes readings for easy viewing and recording and self diagnostics with message codes for easy troubleshooting. A non-volatile memory and individual password protection keeps settings and stored data safe if the device runs out of power however, there is the option to power with batteries or optional AC adapter for use in the field or bench top.
Wireless and cable free data transfer with infared IrDA technology, comes with PC based complimentary data acquisition software for hassle free data import and report generation into any popular spreadsheet program of your choice.
Rugged and waterproof to IP67 standard with protective rubber boot and handy Velcro strap for better grip. This product is covered by a 3 year meter warranty.
Manufactured by: Eutech Instruments
Model: CyberScan COND 610
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Environmental - use to test water quality, monitor health of aquatic ecosystems, survey surface and ground water drinking supplies and to meet EPA regulations
Industrial - ideal for checking quality of plant water intake and discharge, wastewater and water treatment, recirculating systems and industrial process systems, water conditioning plants and chemical process verification
Aquaculture - use to monitor water conditions in catfish and shrimp farming, game stocking ponds, ornamental fish tanks and ponds as well as other fish farming applications
Specification
| Conductivity Range | .. to 500.0 mS |
| Resolution & Accuracy | 0.01 µS/cm / 0.1 µS/cm / 0.001 mS/cm / |
| TDS | .. to 500 ppt |
| Resolution & Accuracy | 0.01 ppm / 0.1 ppm / 0.001 ppt / 0.01 ppt / 0.1 ppt ±1% Full Scale + 1 LSD |
| Salinity | .. to 80 ppt |
| Resolution & Accuracy | 0.05% &±1% Full Scale + 1 LSD |
| Resisitivity | 0 to 20.00 mΩ |
| Resolution & Accuracy | 0.05% &±1% Full Scale |
| Temperature Range | -10.0 to 110.0 °C (14.0 to 230 °F) (Meter |
| Resolution & Accuracy | 0.1 °C/ 1.0°F |
| Temperature Compensation | Automatic / Manual (0 to 100 °C) |
| No. of Calibration Points | 4 (1 per range) Auto |
| Cal Due Alarm | Yes (Days - Max 30) |
| Auto-Cal Options | 84, 1413 uS/cm 12.88, 111.8 mS/cm |
| Slope/ Offset Display | Yes (Display + Icon) |
| Input | DC phono sockets, 8-pin connector |
| LCD Display | Back-lit Dot Matrix |
| Memory | 500 data sets |
| Output | Yes (IrDA/ RS232C |
| Special Functions | Stability Indicator; Self-diagnostic; Non-Volatile Memory; Hold & Auto-Power Off after 20 minutes |
| GLP | Yes |
| Ingress Protection | IP67 |
| Power | 4 ‘AAA’ x 1.4V batteries or 9VDC power adapter |
