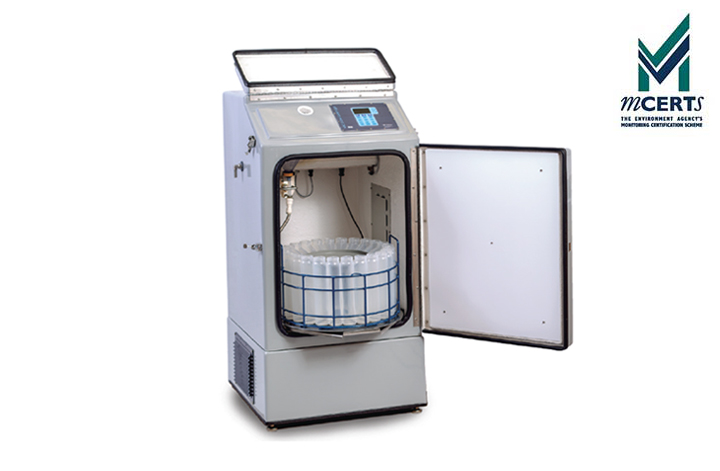

PLATINUM Vacuum Wastewater Samplers

  • MCERTS MCERTS accredited QVL and CVE versions
  • Adjustable Sample Size 20-500mL, samples can be collected at different volumes without a tubing change
  • Variable sampling Time or flow (1-24)
  • Delay start 1 thru 9999min
  • Variable inputs Pulses, 4-20mA, 0-10Vdc, 0-5Vdc
Product Options

Overview

The refrigerated Teledyne ISCO PLATINUM Vacuum samplers deliver high sample integrity and reliable performance.The vacuum samplers are built with a fibreglass base and body, making the unit heavy duty and suitable for use in all seasons, as well as in severe or corrosive environments.

The PLATINUM vacuum pumps provide consistent long-term sampling with vertical lifts of up to 8.5m (28ft), with no replacement of the internal tubes needed.  The powerful pump allows samples to be drawn from a larger distance.

The samplers use two different technologies:

  • The Platinum QLS system uses a load cell to precisely weigh and self-calibrates to maintain the sample size. Samples can be collected at different volumes without a tubing change.
  • The PLATINUM CVE has a consistent volume extraction system which trims each sample to the same volume.

Manufactured by: Teledyne ISCO
Model: PLATINUM Vacuum Wastewater Samplers

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Refrigeration Unit and Controller
Size 124.5 H x 65 W x 65 W cm
Weight 86.2 kg (190 lbs.) approximate
Refrigeration Body 6.35 cm (2.5"), fully insulated cabinet
Power Requirements 115 Vac, 60 Hz, 230 Vac, 50 Hz
Operational Temperatures -29° C to 50° C (-20° F to 122° F)
Corrosion Protection Refrigerated copper lines, phenolic coated
Intake Tubing Diameter: Vinyl 9 mm (3/8 in.), 12 mm (1/2 in)
Length: 1-45 m (3-150 ft)
Bottle Configurations 1-liter PP (24), 2.5-liter PP (12), 15-liter PP (4), 20-liter PE (1), 10-liter PE or glass (1)
Maximum Lift QLS: 28 feet (8.5 m)
CVE: 23 feet/28 feet (7m/8.5 m)
Line Velocity Greater than 1.0 m/s (3.25 FPS) @ 6.1 m (20') with 9 mm (3/8") tubing
Repeatability QLS: ± 4 mL
CVE: ± 5 mL
Programmable Functions Pre-purge: 0–99 sec.
Programmable sample size: 20–500 mL in 1mL increments
Post-purge: 1–99 sec.
Auto shut off
Delay Start
Flow inputs: pulses, 4–20 mA, 0–10 Vdc, 0–5 Vdc
Sampling interval: 1 to 9999 min.
Sampling Modes Constant Time, Contant Volume
Variable Time, Constant Volume
Constant Flow, Constant Volume
Variable Flow, Constant Volume
Time and Flow Based Sampling
(refer to the manual for more info)
Incremental Flow per Bottle
Controller Microprocessor control
Controller Protection Nema 4X, IP66
Warranty Two year from shipment
