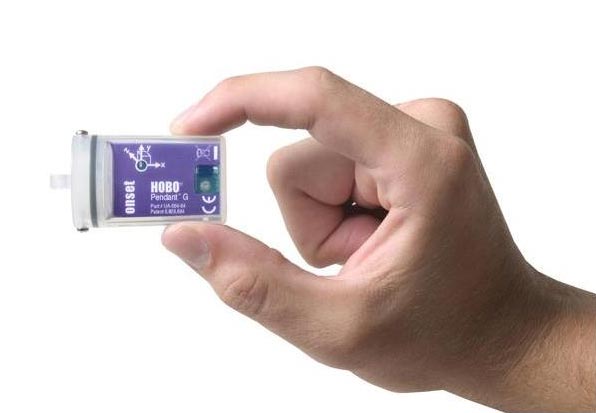

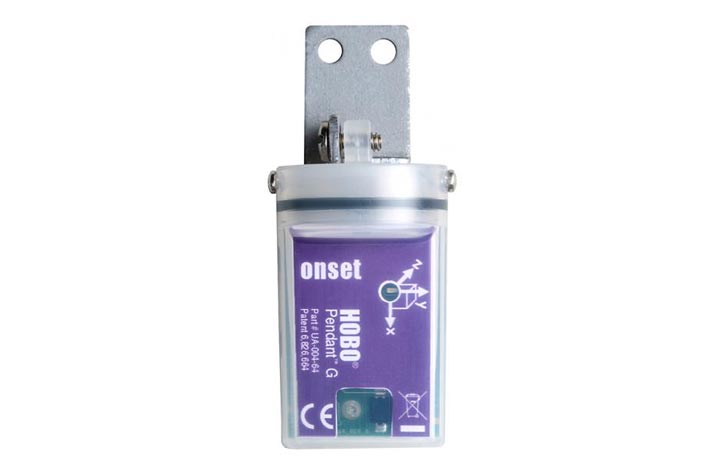

HOBO Pendant G Data Logger

Product Options
UAON004ON64

Overview

Measure 3-dimensional motion, such as sports activity or medical therapy compliance with the HOBO® Pendant G data logger. With this logger, users can measure acceleration and angular displacement in 1, 2 or 3 axes. Use this data to monitor activity and improve performance.

Manufactured by: Onset
Model: HOBO Pendant G Data Logger

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Acceleration and Tilt

Specification

Measurement Range ± 3 g; 29.4 m/s2 (96.5 ft/s2)
Accuracy ± 0.075 g; 0.735 m/s2 (2.41 ft/s2) at 25°C (77°F);
± 0.105 g; 1.03 m/s2 (3.38 ft/s2) from -20°C to 70°C (-4°F to 158°F)
Resolution 0.025 g; 0.245 m/s2 (0.8 ft/s2)
Logging Interval
In Normal mode 1 second to 18 hours, 12minutes, 15 seconds
In Fast mode 0.01 seconds (100 Hz) to 0.99 seconds (1.01 Hz)
Time accuracy ± 1 minute per month at 25°C (77°F)
Operating Range
In water/ice -20° to 50°C (-4° to 122°F)
In air -20° to 70°C (-4° to 158°F)
Water depth rating 30 m from -20° to 20°C (100 ft from -4° to 68°F)
Battery life
In Normal mode 1 year typical use
In Fast mode 7 days logging at 0.01 seconds (100 Hz)
Battery Type CR2032

Memory 64K bytes (approximately 21.8K combined x-, y-, and z-axis readings or events)
Materials Polypropylene case; stainless steel screws; Buna-N o-ring
Weight 18 g (0.6 oz)
Dimensions 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
Environmental Rating IP68
The CE Marking identifies this product as complying with the relevant directives in the European Union (EU).
