AV38 DataStick Local Monitor and Controller
- Compatible Equipment
- Connects to any DataStick system to display sensor and temperature data, control calibration, configuration and diagnostics
- Approved Local Monitor and Controller Equipment
- Meets CE requirements for heavy industiral use
- Connect multiple datasticks over modbus

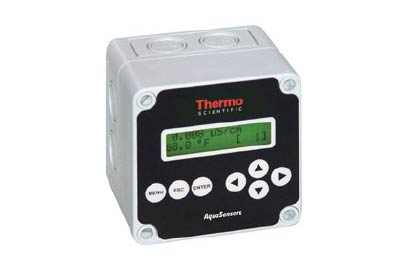

The AV38 Local Monitor and Controller connects to any DataStick System to display sensor and temperature data, and control calibration, configuration and diagnostics. It has two 4 to 20 mA current outputs, two form C relays for alarm, control and wash, and a PID controller for use with pH and conductivity. The convenient DIN enclosure has an ingress rating of NEMA 4X.
The unit has 7 conduit knockouts for easy cabling. The high contrast, backlit display is a 2 line by 16 character LCD. The straightforward keypad consists of 4 directional arrows and MENU, ESCAPE and ENTER keys. Ambient operating temperature range is -20 to 65°C and maximum relative humidity is 95% (non-condensing).
