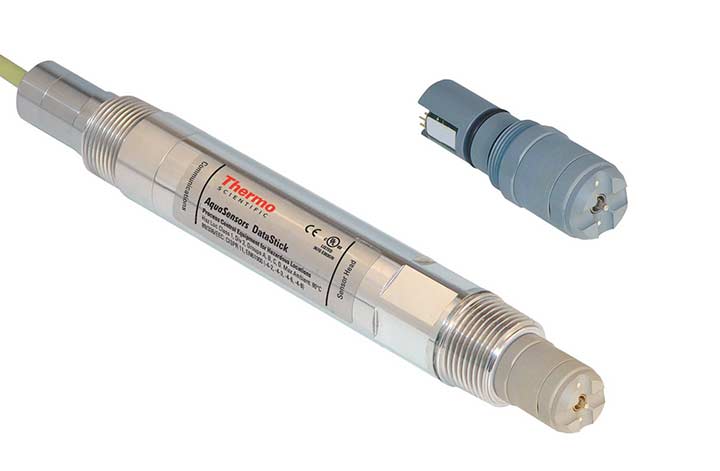

Datastick ORP REDOX Sensor

  • ORP Measurement Range ORP measurement range from -2100 mV to 2100 mV
  • ORP Sensor Head ORP sensor head is precalibrated for ORP and temperature. Plug into any Datastick to yield accurate 24-bit data.
  • Universal DataStick Provides conversion of sensor signals and interactive communication for measurement calibration configuration and diagnostics
Product Options
0

Overview

Provides differential ORP/REDOX measurement with no field calibration required. The ORP/REDOX sensor can be connected directly to a PLC(Programmable Logic Controller), and any computer can be used to display data and to customize and calibrate the sensor. The ORP/REDOX probe is offered in a variety of materials and has replaceable quad junction salt bridges. Pre-calibrated sensor heads can be replaced or exchanged with any other type of sensor without any system downtime, saving time and money.

The REDOX/ORP sensor/electrode is constructed to be exceptionally chemically resistant and mechanically strong, and has non-flowing and anti-fouling characteristics. The sensor also has a built-in pre-amplifier and universal engineering units conversion. The electrode also has universal signal conditioning electronics and interactive communications with a host computer or display interface via a range of connectivity options, including Modbus? RTU, DeviceNet, Profibus, USB, CANopen or Ethernet.

A titanium ground electrode is included to eliminate ground loop currents in the measuring electrode and an integral temperature sensor measures temperature independently.

Manufactured by: Thermo Scientific
Model: Datastick ORP REDOX Sensor

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Wastewater treatment
Metal finishing (chrome/cyanide destruct)
Bleaching pulp
Disinfection control

Specification

Measurement System Performance†
Range -2100 mV to +2100 mV
Resolution 0.1 mV
Accuracy 0.1% of reading
Step Response Time 90% in 30 seconds
Operational Environment
PEEK Sensor Head Temperature Range: -5 °C to 95 °C
Maximum Pressure: 100 psig @ 95 °C
Maximum Flow Rate: 10 ft/second
CVPC Sensor Head Temperature Range: -5 °C to 75 °C
Maximum Pressure: 85 psig @ 75 °C
Maximum Flow Rate: 10 ft/second
Power Requirements‡
Voltage Range 10 to 30 VDC
Maximum Power 200 mW
Typical Power 120 mW
Construction
Process Electrodes Platinum or gold
Ground Rod Titanium (standard), 316 stainless
steel or Hastelloy C
O-rings Viton® (other materials available)
Sensor Head Material PEEK or CPVC
DataStick Material 316 stainless steel, PEEK, or CPVC
Weight 1.2 lbs (PEEK or CPVC)
2.6 lbs (316 stainless steel)
Units of Measure
Measurement Units mV
Temperature Units °C, °F
Calibration††
Sample 1 point
Temperature 1 point
Temperature
Compensation
Options‡‡
Temperature measurement is provided as an
independent measurement.
Other Configuration Options
Sensor Filter 0 to 100 seconds
Temperature Filter 0 to 100 seconds
Approvals and Ratings
Immunity & Emissions CE certified 89/336/EEC: CISPER 11, EN61000 (-4-2,-4-3,-4-4,-4-6, 4-8)
Safety cULus Listed; 367G E303570
Hazardous Locations Haz Loc Class 1, Division 2,
Groups A, B, C, D. Max Ambient 80 °C
† Note: Typical at 25 °C Performance unaffected by cable length
‡ Note: Class II DC power supply required
†† Note: ORP and temperature are pre-calibrated at the factory
‡‡ Note: Temperature can be entered manually
