SONO 3300 inline ultrasonic flow meter for industrial flow metering

SONO 3300 Inline Ultrasonic Flow Meter

  • Range of Sizes Available From DN 50 to DN 300 (2 to 12 inch)
  • Resistant to Impurities Is ideal when resistance to impurities and obstacles in the water is needed
  • Excellent Price/Performance Ratio Cost to performance ratio of the 3300 is hard to beat
Product Options

Overview

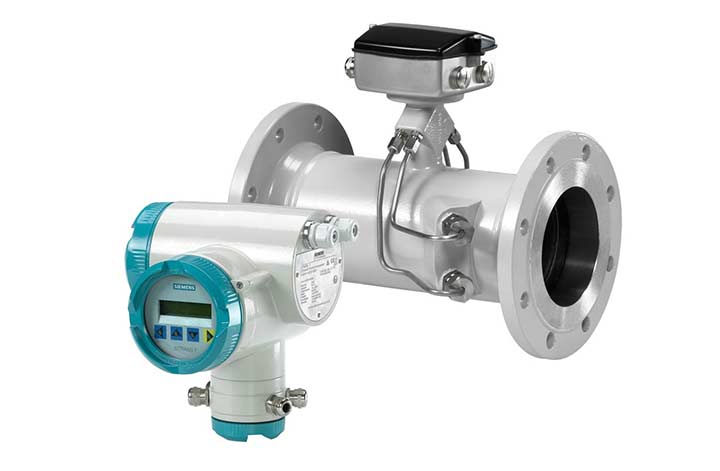

The SONO 3300 inline ultrasonic flow meter used in combination with the FUS060 transmitter is ideal for general industrial flow metering applications. Measurements are independent of liquid temperature, density, pressure and conductivity.

The main application for the SONO 3300/FUS060 in-line ultrasonic flowmeter is measurement of volume. SONO 3300/FUS060 can be used for water and treated waste water, oil and liquefied gases, hot water / cooling systems. This combination consists of a casted sensor (DN 50 to 150 (2" to 6")), welded pipes (DN 200 to 300 (8" to 12")) and the SITRANS FUS060 transmitter (the transmitter can only be mounted separately). Stainless steel pipes are used to protect the internal signal cables running from the transducers to the sensor connection box.

Benefits

  • Robust remote transmitter FUS060
  • Robust design for industrial applications
  • No pressure drop
  • Measures all liquids less than 350 cSt, conductive or non-conductive
  • Reliable and accurate flow measurements
  • ATEX approval
  • Long-time stability

Manufactured by: Siemens-Milltronics
Model: SONO 3300 Inline Ultrasonic Flow Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Water and treated waste water
Hot water / cooling systems
Oil and liquefied gases

Specification

Measuring Range Qn 10 to 2200 m3/h (depends on size)
Nominal Size From DN 50 to DN 300 (2" to 12")
Accuracy ±0.5% of flow rate
Operational Pressure Max 40 bar (Max. 580 psi)
Operational Temperature From -40 to 85 °C (-40 to 185 °F)
Medium Temperature From -10 to 160 °C (14 to 320 °F)
Design 2 tracks
Material Carbon steel
Approval ATEX
