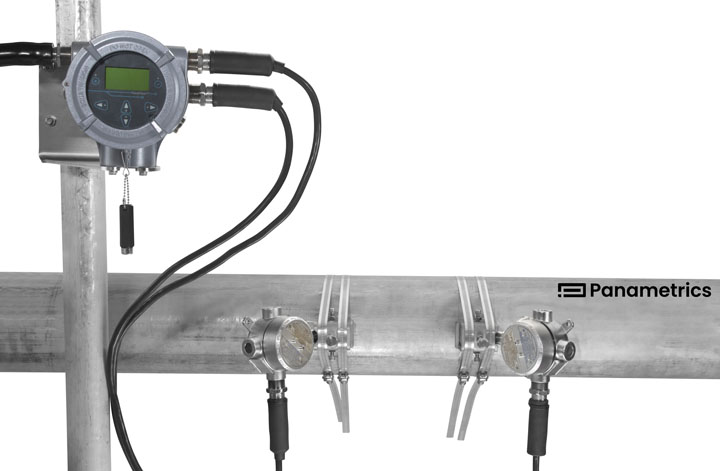

PanaFlow LC Clamp-on Liquid Flow Meter (XMT1000)

  • Suitable for hazardous area environment Either an explosion proof or flameproof design for vital process environments
  • Suitable for most pipe sizes and materials
  • Newest Generation of Ultrasonic Clamp-on from Panametrics
Product Options

Overview

The PanaFlow LC is the newest generation of Ultrasonic Clamp on Flow Meter, which is based on it's predecessor the XMT868, but features many advantages. The PanaFlow LC has a wide range of transducers available which make it suitable for many applications, even in hazardous environments. The PanaFlow LC is Hazardous area certified with either an explosion proof or flame proof design.

Other advantages of the PanaFlow LC include: improved accuracy and repeatability, HART and Foundation Fieldbus digital protocols, Wider flow range for handle more diverse flow measurements.

The Flow Meter is suitable for most pipe sizes and materials, both lined and unlined.

Manufactured by: GE Panametrics
Model: PanaFlow LC Clamp-on Liquid Flow Meter (XMT1000)

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

-Suitable for hazardous area environment with either an explosion proof or flameproof design for vital process environments.
-Designed for most refinery or chemical liquids including hydrocarbon liquids, crude oil, lubricating oils, refined hydrocarbons oils, solvents, chemicals, water, sea water, and more.
-Suitable for most pipe sizes and materials, both lined or unlined

Specification

Operation and performance
Fluid types Liquids: acoustically conductive fluids, including most clean liquids, and many liquids with small amounts of entrained solids or gas bubbles
Flow Measurement Patented Correlation Transit-Time™ model
Pipe Sizes 0.75 in to 300 in (20 mm to 7.5 m)
Pipe Wall Thickness Up to 4 in (100 mm); consult factory for other wall thicknesses
Pipe Material All metals and most plastics. Consult Panametrics for concrete, composite materials, and highly corroded or lined pipes.
Accuracy

±1% of reading: >=2 in/50 mm, >1 ft/s (0.3 m/s)
±2% of reading: <2 in/50 mm, >1 ft/s (0.3 m/s)
±0.5% in field calibration possible

Installation assumes a fully developed, symmetrical flow profile (typically 10 diameters upstream and 5 diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including pipe centricity, installation accuracy, and others.

Repeatability ±0.2% of reading typical
Range (Bidirectional) 0.1 to 65.6 ft/s (0.03 to 20 m/s)
Measurement Cycle 3 Hz typical (Adjustable to 10 Hz)
Measurement Parameters Velocity, Volumetric, Mass, Energy, Total Flow
Channels 1, 2, or 3 channels
Optional PC Software Vitality™ PC Software

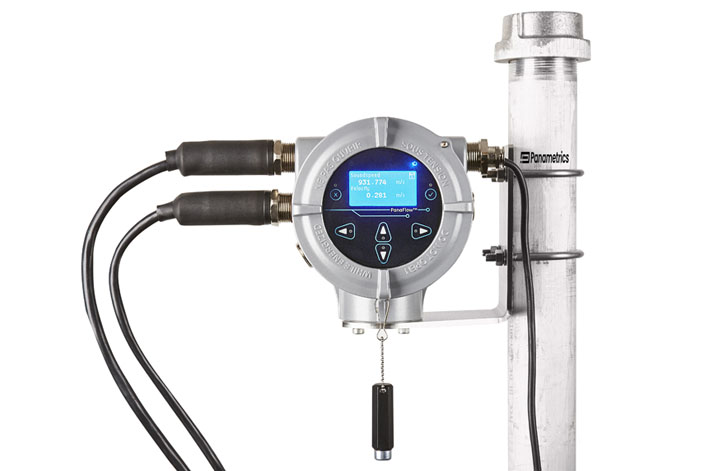

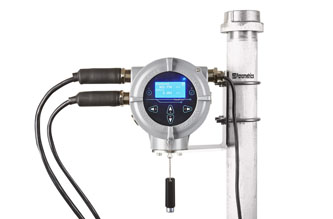

XMT1000 Flow Transmitter
Enclosure Epoxy-coated aluminum or stainless steel NEMX 4X / IP66 & IP67 rating
Specifications
  • Weight: 10 lb. (4.5 kg
  • Size (D x H x W): 8.40 in. x 6.42 in. x 5.87 in. (213.4 mm x 163.1 mm x 149.1 mm)
  • Mounting: 2 in. pipe or wall mount
Hazardous Area Rating US/CAN: Class I, Division 1, Groups B, C, D;
Class I, Zone 1, Ex d IIC T6;
Class I, Division 2, Groups A, B, C, D;
Class I, Zone 2, Ex nA IIC
ATEX/IECEx: Ex d IIC T6 FISCO outputs
Ta = -40° C to +60° C, Type 4X
Temperature Range
  • Operating: -40°F to 149°F (-40°C to +65°C)*
  • Storage: –67°F to 167°F (–55°C to 75°C)
*Maximum ambient temperature is 60°C (140°F) when foundation fieldbus option selected.
Display 128 x 64 mono-color LCD display, configurable for single or dual measurement parameters.
Keypad Built-in magnetic, six-button, lockable keypad
Standard Inputs/Outputs
  • One 4 to 20 mA isolated output, 600 Ohm maximum load
  • One additional output may be configured as either a pulse or frequency output.
Digital Communication
  • Standard: RS485/Modbus
  • Optional: HART® 7.0 protocol, with 4 dynamic variables, includes one additional 4 to 20 mA analog output
  • Optional: Foundation Fieldbus® FISCO, LAS capable with 5 AI blocks and a PID block.
Power Supplies Universal 100-240 VAC 50/60 Hz ±10% or 12 to 28 VDC
Power Consumption 15W maximum, Typically <7W
Inrush current: 25 A maximum @ 100 µs
15 A maximum @ 1 ms
