PanaFlow LZ System - Ultrasonic Inline Flow Meter

  • Bi-Directional Measurements No need to install additional meters
  • No Drifting and No Periodic Calibration Required No loss of process control, optimization of assets and efficiency, no downtime or expense from calibration
  • No Pressure Drop No wasted energy from running a pump or purchase of a larger size pump
  • Field Replaceable Transducers No risk in measurement, no shutdown costs for transducer maintenance
  • Explosion-Proof Transducer Design More power to transducer at higher voltages, less risk of attenuation in fluid
Product Options

Overview

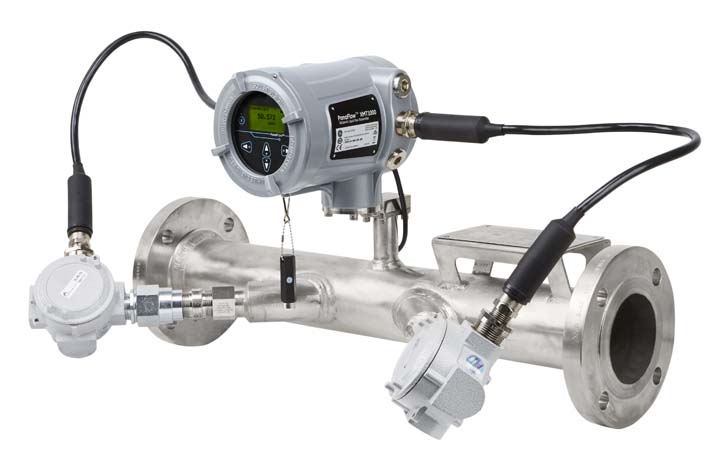

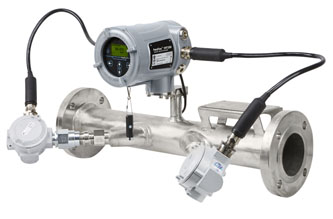

The PanaFlow LZ is offered as a one- or two-path wetted, ultrasonic flow meter that brings all of the advantages of ultrasonic technology at an affordable price.

Unlike other flow measurement technologies, the PanaFlow LZ requires no maintenance as it does not have any obstruction in the flow path that could clog the line nor does it have any moving parts that could be damaged by the flowing fluid. PanaFlow LZ measurements are not affected by changing process conditions, such as temperature, pressure and conductivity variations. In addition, because the measurements do not drift over time, no periodic calibration is required. Thus, the PanaFlow LZ is a very attractive flow meter, providing a lower overall total cost of ownership along with the superb reliability and performance expected from a Panametrics ultrasonic flow meter.

Several electronics packages can be paired with the PanaFlow meter system to provide local or remote electronics. For local electronics, the XMT1000 transmitter is used. Other electronics platforms are available for remote locations. With both electronics configurations, the system is preprogramed with setup information for your application making it is quick and easy to install.

Manufactured by: Panametrics
Model: PanaFlow LZ System - Ultrasonic Inline Flow Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Pipeline metering
Water/cooling water/wastewater
Internal allocation metering
Loading/unloading
Fuel oils
Hydrocarbon liquids
Crude oils
Chemicals
Blending
Solvents
Weak acid solutions

Specification

Operation and performance
Fluid types Liquids: acoustically conductive fluids, including most clean liquids, and many liquids with small amounts of entrained solids or gas bubbles
Flow measurement Correlation Transit Time model
Paths

1 Path: 2 in. to 24 in. (50 mm to 600 mm) pipe
2 Path: 3 in. to 24 in. (80 mm to 600 mm) pipe

Pipe sizes 2 in. to 24 in. (50 mm to 600 mm)
Pipe material

Carbon steel

Stainless steel (316/316L)

Accuracy

±0.5% of reading for velocity above 2 ft/s (0.6 m/s) up to 40 ft/s (12.2 m/s) with a resolution of ± 2 mm/s

Accuracy statement assumes measurement of a single phase homogenous liquid with a fully developed symmetrical flow profile passing through the meter. Applications with piping arrangements that create an asymmetrical flow profile may require extended piping straight runs and/or flow conditioning for the meter to perform to this specification.

Repeatability ±0.3% of reading typical
Range (bidirectional) ±0.1 to 40 ft/s (0.03 to 12.19 m/s)
Measurement parameters Dependent upon meter electronics used. Please refer to individual flow meter electronics product data sheet.
Electronics/transmitter
Temperature range

Operating: -40°F to 140°F (-40°C to +60°C)

Storage: –67°F to 167°F (–55°C to 75°C)

Meter body and transducer
Pressure rating Up to maximum allowable flange operating pressure at temperature, per ASME B16.5
Temperature range

WT Transducers:
-40 to 175°C (-40 to 347°F)

BWT Transducers:
-40 to 100°C (-40 to 212°F)
-40 to 250°C (-40 to 482°F)

Temperature rating of -20°C if used with carbon steel meter body.

Transducer material 316L Stainless steel (buffers)
Meter body materials

Carbon steel

Stainless steel (316/316L)

Certification

Electronics/Transducers:
Explosionproof Class I, Division 1, Groups B,C&D
ATEX Flameproof II 2 G Ex d IIC T6
IECEx Flameproof II 2 G Ex d IIC T6 (BWT Only)

Flow Cell: NACE MR0175 and MR0103
PED 2014/68/EU

Transducer cables
Integral cables
  • Mineral insulated cables with potted cable glands (for North America and Canada hazardous locations)
  • Armored flame retardant coaxial cables with ATEX/IECEx certified cable glands (for European hazardous locations)
Remote cables

ATEX/IECEx: Armoured RG62 for ATEX/IECEx
US/CAN: Non-armoured RG62, conduit not included

Remote cables are not included and must be ordered separately. Maximum cable length is 1000 ft (300 m).
