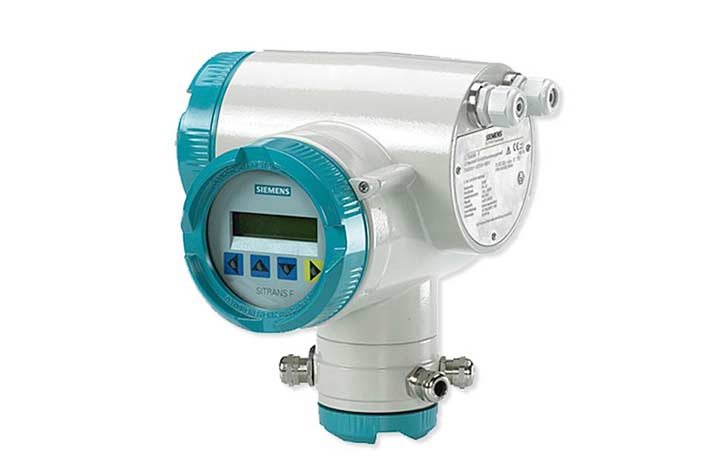

Siemens FUS060 Ultrasonic Transit Time Transmitter

SITRANS FUS060 Ultrasonic Transit Time Transmitter

  • High Accuracy +/- 0.5% of flow rate
  • Compatibility FUS060 is compatible with sensors SONO 3100, SONO 3300 and SONOKIT to make a complete flow meter
  • Features Advanced Technologies Advanced technologies optimise efficiency and accuracy. It also has bus communication, advanced diagnostic capabilities and ATEX certification.
Product Options

Overview

The SITRANS FUS060 is a transit time based transmitter designed for ultrasonic flowmetering with any sensor in the FUS in-line series up to DN 4000. It is suitable for 1-, 2- and 4-tracks flowmeters and is engineered for high performance. The transmitter is designed for use in a flowmeter system together with sensors type SONOKIT, SONO 3300 and SONO 3100. It is designed for remote installation in both hazardous and non-hazardous areas.

The SITRANS FUS060 is ordered as part of a complete flowmeter system. It can be ordered separately as a spare part and manually programmed with the sensor data.

Benefits

  • Superior signal resolution for optimum turn down ratio
  • Self-monitoring and diagnostic
  • Operate up to 4-tracks
  • Simple menu-based local operation with two-line display and four optical input elements, for unlimited use in potentially explosive atmospheres
  • ATEX II 2G Ex dem [ia/ib] IIC T6/T4/T3
  • Remote installation up to 120 m from sensor
  • PROFIBUS PA Profile 2, 1 digital frequency or pulse output
  • 1 analog output (4 to 20 mA) standard with HART-protocol, 1 digital frequency or pulse output, 1 relay output for limit, alarms, flow direction

Manufactured by: Siemens-Milltronics
Model: SITRANS FUS060 Ultrasonic Transit Time Transmitter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Petrochemical industry
Water and waste water
Power engineering

Specification

Accuracy ± 0.5% of flow rate
Input/Output Input:
1-, 2-, 4-track interfaces

Output:
1 analog
1 pulse
1 relay
Communication HART
Profibus PA
PDM (Process Device Manager)
Display 2 x 16 alphanumeric digits LCD with backlight
Enclosure IP65 (NEMA 4)
Power Supply 24V AC/DC
115/230V AC
Operating Temperature From -20 to 50 °C (-4 to 122 °F)
Approvals ATEX

Downloads

FAQ's

Yes, the ordering process is very easy. Orders can be made via purchase order or by credit/debit card. Once we have the paperwork we can delivery next day to any location in Europe. Provided with the equipment is a quick start guide, and if you need extra support, the technical support engineers can be contacted via phone call.
No, all of our flowmeters are competitively priced and rental is an ideal option for cutting costs to a fraction of a full priced new flowmeter.
No problem. The quick start guide is designed to make installing the flow meters a simple task. Everything you require for set up will be found in the peli-box supplied with the flowmeter.
Every flow meter is tested upon shipping and return as part of our ISO9001 procedure. Also, as part of this procedure, the flow meter is calibrated once a year. If a copy of the calibration certificate is needed let us know.
The flow meters typically provide an accuracy of ±1 to 2% of rate, so if you are measuring 100l/sec then the accuracy is between 98-102l/sec.
We are here to help. If the self-help and quick start guides do not help, then call one of our technical support engineers on +44 (0) 1527 882060. We have supplied and supported many clamp on rental installations throughout Europe.
First, contact us for a quote. If you are happy with the quote then send us a purchase order. Or alternatively call us with credit card details and fill out and send us a rental agreement form.
If the stock is permitting, and all paperwork is received by 12pm then flow meters can usually be available the next day.
The minimum hire period for flow meters is one week.
Once you have the meter you can rent it for as long as you need it. However, it would help if you can let us know that you wish to extend the rental period. Upon return the meter is off-hired and once checked and tested, an invoice will be issued to you. Also, if you extend your rental past a 4, 8 or 12 week rental threshold, then you are entitled to a discount.
You are only charged for the period of time for which you have the flowmeter. So, if a flowmeter is returned 3 days late you are only charged for 3 extra days, and each of these days is charged at one fifth of the weeks hire cost.
Normally, you will use your own courier but if you have any problems let us know and we can arrange a pick up the day after you notify us, but you will be charged for the carriage and this cost will be added to the invoice.
Without exception, all our flow meters are tested. If you need a 110v plug instead of the standard 230v plug let us know.
All of our standard transducers will do -40degC to +150degC, but this will depend on your application.
  • Liquid: below 50mm CFLP transducers are required, 50-1000mm CRS-402 transducers and 150-8000mm CRS-401 transducers. All the bits you need can be supplied, and delivered with the meter.
  • Gas: below 80mm CRS-402 is required, for 80-300mm the CRS-401/CRV-310 and for above 300mm the CRW-312 transducers are required.
  • High temperatures: For liquid we can measure +450degC for liquid and for gas/steam +250degC. But please consult RS Hydro.
Of course, we make a small surcharge for each set of transducers. Most applications only require one set, but on occasion some people may require two, for more diverse pipe sizes and applications.
An ultrasonic wall thickness gauge, that measures to within 0.05mm, is provided as standard with all flow meter rental packages.
The screendump facility on the integrated dataloggers on all our flow meters, allows you to photograph any screen and download it to your pc.
After the equipment has been shipped, it is the responsibility of the hirer. However, in our experience it is rare that any of our flow meters are damaged. Our flow meters are tough, as well as accurate, and reliable.
We have hired more ultrasonic clamp on flow meters than any other company in Europe. We are now one of the world's largest distributors of GE Panametrics flow meters. We always review your application before hire so no unwanted surprises are encountered. Every effort has been made to make your flow meter hire and enjoyable experience: quick start guides to help you set up with ease, online videos for further help, rugged packaging for extra durability anywhere, and real flow engineers available for online/telephone support.
