HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger
Product Options
Overview

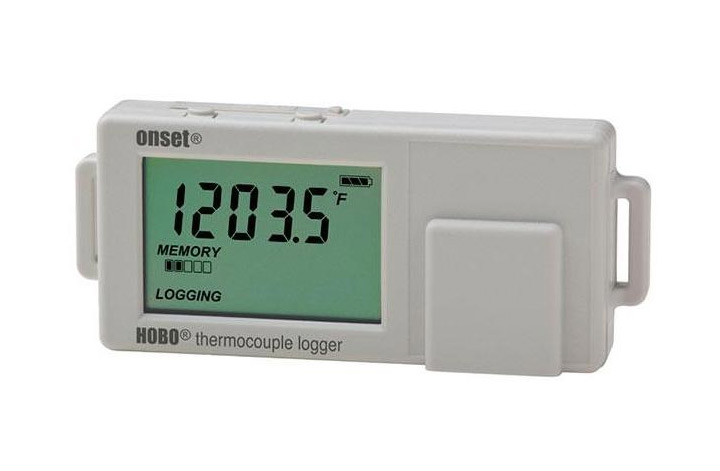

The HOBO UX100-014M Single Channel Thermocouple data logger records temperature in indoor environments with thermocouple sensors (sold separately). Designed for a broad range of monitoring applications – from industrial process monitoring to concrete maturity testing – the logger provides exceptional flexibility by accepting J, K, T, E, R, S, B or N type thermocouple probes.
Onset also offers a four-channel thermocouple data logger, the HOBO UX120-014M.
Manufactured by: Onset
Model: HOBO Type J, K, T, E, R, S, B, N Thermocouple Data Logger
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Temperature
Specification
| J Type Thermocouple | |
| Range | -210° to 760°C (-346° to 1,400°F) |
| Accuracy | ±0.6°C (±1.08°F) ± thermocouple probe accuracy |
| Resolution | 0.03°C (0.06°F) |
| K Type Thermocouple | |
| Range | -260° to 1,370°C (-436° to 2,498°F) |
| Accuracy | ±0.7°C (±1.26°F) ± thermocouple probe accuracy |
| Resolution | 0.04°C (0.07°F) |
| T Type Thermocouple | |
| Range | -260° to 400°C (-436° to 752°F) |
| Accuracy | ±0.6°C (±1.08°F) ± thermocouple probe accuracy |
| Resolution | 0.02°C (0.03°F) |
| E Type Thermocouple | |
| Range | -260° to 950°C (-436° to 1,742°F) |
| Accuracy | ±0.6°C (±1.08°F) ± thermocouple probe accuracy |
| Resolution | 0.03°C at (0.05°F) |
| R Type Thermocouple | |
| Range | -50° to 1,550°C (-58° to 2,822°F) |
| Accuracy | ±2.2°C (±3.96°F) ± thermocouple probe accuracy |
| Resolution | 0.08°C (0.15°F) |
| S Type Thermocouple | |
| Range | -50° to 1,720°C (-58° to 3,128°F) |
| Accuracy | ±2.2°C (±3.96°F) ± thermocouple probe accuracy |
| Resolution | 0.08°C (0.15°F) |
| B Type Thermocouple | |
| Range | 550° to 1,820°C (1,022° to 3,308°F) |
| Accuracy | ±2.5°C (±4.5°F) ± thermocouple probe accuracy |
| Resolution | 0.1°C (0.18F) |
| N Type Thermocouple | |
| Range | -260° to 1,300°C (-436° to 2,372°F) |
| Accuracy | ±1.0°C (±1.8°F) ± thermocouple probe accuracy |
| Resolution | 0.06°C (0.11°F) |
| Internal 10K Thermistor (Temperature) | |
| Range | Logging: -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A in manual |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F); see Plot A in manual |
| Drift | <0.1°C (0.18°F) per year |
| Logger | |
| Logger Operating Range | |
| Logging | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F) |
| Launch/readout | 0° to 50°C (32° to 122°F) per USB specification |
| Resolution | 22-bit |
| Logging rate | 1 second to 18 hours, 12 minutes, 15 seconds |
| Logging modes | Normal, Burst or Statistics |
| Memory modes | Wrap when Full or Stop when Full |
| Start modes | Immediately, Push Button, Date & Time or Next Interval |
| Stop modes | When Memory Full, Push Button, or Date & Time |
| Restart mode | Push Button |
| Time accuracy | ±1 minute per month at 25°C (77°F), see Plot B in manual |
| Battery life | 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater |
| Battery type | One 3V CR2032 lithium battery |
| Memory | 512 KB (208,076 measurements, maximum) |
| Download type | USB 2.0 interface |
| Full memory download time | 1 minute, 30 seconds |
| LCD | LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) |
| Weight | 30 g (1.06 oz) |
| Environmental rating | IP50 |
| The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | |
