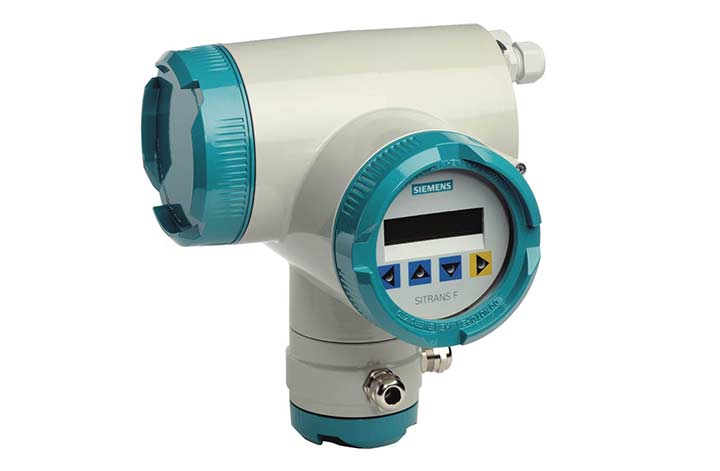

Siemens Transmag 2 Flow Transmitter

Transmag 2 Flow Transmitter

  • Truly Robust Designed for heavy-duty applications
  • High Signal-To-Noise Ratio By transient phenomenin - 10 times higher than the pulse DC version
  • Ideal for Slurries & Sludges Any liquid with high solid content.
Product Options

Overview

The Siemens Transmag 2 flow transmitters are designed for heavy-duty applications such as pulp & paper stock over 3%; heavy mining slurries and mining slurries with magnetic particles. This is a truly robust option compatible with911 flowmeters.

It has high signal-to-noise ratio by transient phenomenon - 10 times higher than the pulse DC version, 2 times higher than the pulse AC system in the market.

Measurement of magnetically conductive media is possible by measurement of the field strength in the transducer. Solids up to 85% and two phase materials are not a problem for this technology. It comes complete with self-cleaning electrodes, self-diagnostics for error detection and a mulit-lingual display.

Manufactured by: Siemens-Milltronics
Model: Transmag 2 Flow Transmitter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Pulp and paper industry
Mining industry
Slurries & Sludges

Specification

Measuring Range 0 to 10 m/s
Nominal Sizes From DN 15 to DN 1000 (½" to 40")
Accuracy ± 0.5 % of flow rate
Operating Pressure Max. 40 bar (Max. 580 psi)
Ambient Temperature From -20 to 60 °C (-4 to 140 °F)
Medium Temperature From -20 to 150 °C (-4 to 300 °F)
Liners Neoprene
PTFE
Hardrubber
Linatex
Novolak
Electrodes AISI 316 Ti (mat. No. 1.4571/316 Ti)
Hastelloy C4 (mat. No. 2.4610)
Platinum head with shaft (mat. No. 1.4571/316Ti)
Titanium
Tantalum
Enclosure Sensor IP67 (NEMA 4x)
IP68 (NEMA 6) - optional
Material Carbon steel
