HOBOnet Rainfall (metric) Sensor

Product Options

Overview

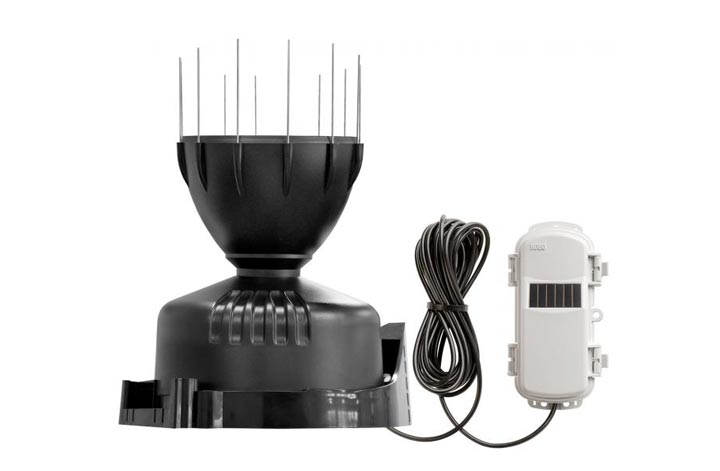

The HOBOnet Wireless AeroCone® Rain Gauge records rainfall in 0.2-millimeter increments. HOBOnet Wireless Sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.

Manufactured by: Onset
Model: HOBOnet Rainfall (metric) Sensor

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Rainfall

Specification

Sensor
Measurement Range 0 to 10.2 cm (0 to 4 in.) per hour, maximum 4,000 tips per logging interval
Accuracy ±4.0%, ±1 rainfall count between 0.2 and 50.0 mm (0.01 and 2.0 in.) per hour; ±5.0%, ±1 rainfall count between 50.0 and 100.0 mm (2.0 and 4.0 in.) per hour
Resolution 0.01 in.
Wireless Mote
Operating Temperature Range Mote: -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40° to 70°C (-40° to 158°F) with lithium batteries
Radio Power 12.6 mW (+11 dBm) non-adjustable
Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) high
Wireless Data Standard IEEE 802.15.4
Radio Operating Frequencies RXW-RGF-900: 904–924 MHz
RXW-RGF-868: 866.5 MHz
RXW-RGF-921: 921 MHz
RXW-RGF-922: 916–924 MHz
Modulation Employed OQPSK (Offset Quadrature Phase Shift Keying)
Data Rate Up to 250 kbps, non-adjustable
Duty Cycle <1%
Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station
Logging Rate 1 minute to 18 hours
Number of Data Channels 2
Battery Type/
Power Source
Two AA 1.2V rechargeable NiMH batteries, powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F)
Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical use
Memory 16 MB
Dimensions Sensor: 16.5 cm opening diameter (6.5 in.) x 24 cm (9.5 in.) high; 214 cm2 (33.2 in.2) collection area
Cable length: 2 m (6.6 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)
Weight Sensor and cable: 1.2 kg (2.7 lbs)
Mote: 223 g (7.87 oz)
Materials Sensor: UV-stabilized ABS plastic housing; tipping spoon mechanism with magnetic reed switch pivots on metal shaft
Mote: PCPBT, silicone rubber seal
Environmental Rating Sensor: Weatherproof
Mote: IP67, NEMA 6
