HOBO RX2100 MicroRX Station

Product Options

Overview

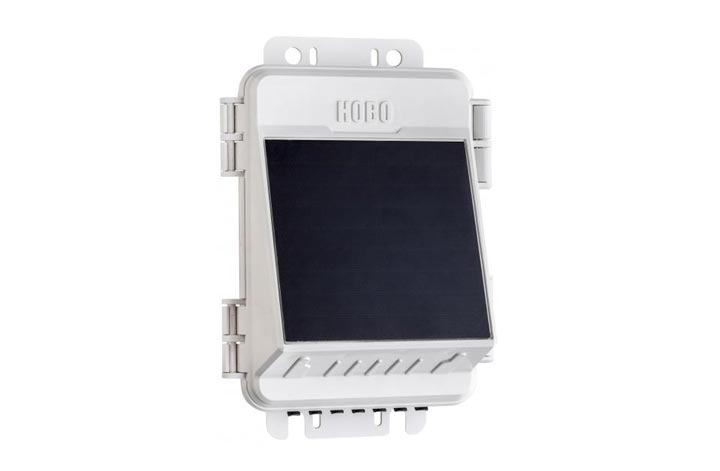

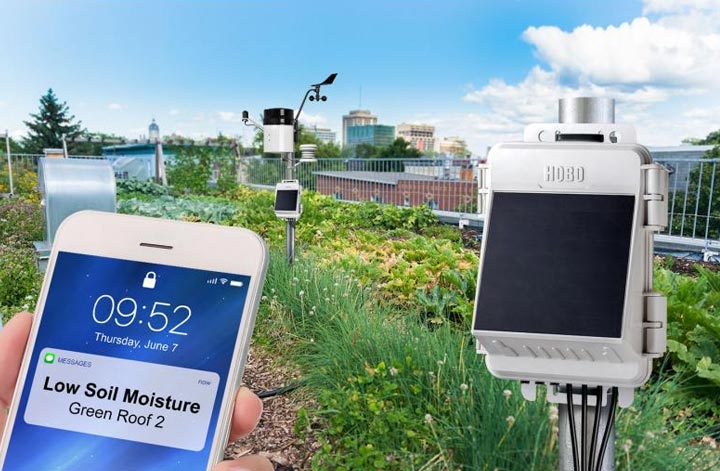

The compact and rugged HOBO RX2100 MicroRX Station is an easy-to-deploy, low-cost cellular solution for long-term, reliable field monitoring. Two power source options are available: a solar panel for extended deployments, and user-replaceable batteries for flexible mounting in covered or protected locations. The station includes inputs for up to five of Onset’s research-grade plug-and-play sensors, and can be ordered with an additional water level sensor input with integrated flow conversion. Configurable station-side alarms trigger immediate notifications of critical conditions, and Onset’s cloud-based HOBOlink platform makes it easy to view, access, and share data.

Manufactured by: Onset
Model: HOBO RX2100 MicroRX Station

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Absolute Pressure, 4-20mA, AC Current, AC Voltage, Amp Hour (Ah), Barometric Pressure, DC Voltage, Dew Point, Evapotranspiration, Kilowatt Hours (kWh), Leaf Wetness, Light Intensity, PAR, Power Factor (PF), Pulse Input, Rainfall, Relative Humidity, Soil Moisture, Solar Radiation, Temperature, Volt-Amp Reactive hour, Water Flow, Water Level, Watt Hours (Wh), Watts (W) and Wind

Specification

Operating Range MicroRX Station, battery-powered (RX2101 and RX2105) and Micro RX Water Level Station, battery-powered (RX2103): -40° to 60°C (-40° to 140°F)
MicroRX Station, solar-powered (RX2102), MicroRX Water Level Station, solar-powered (RX2104) and MicroRX Station for HOBOnet, solar-powered (RX2106): -20° to 60°C (-4° to 140°F)
Smart Sensor Connectors 5
Smart Sensor Network Cable Length 100 m (328 ft) maximum
Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Logging Rate 1 minute to 18 hours
Time Accuracy ±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source RX2102, RX2104 and RX2106: Integrated 1.7 watt solar panel and NiMH rechargeable battery pack; optional AC power adapter (P-AC-1) or external solar panel (SOLAR-xW) can be used in place of integrated solar panel
RX2101, RX2103 and RX2105: 6 AA 1.5 V lithium batteries or AC power adapter (P-AC-1)
Battery Life

RX2102, RX2104 and RX2106 Battery Life:

Typical 3–5 years when operated in the temperature range -20° to 40°C (-4° to 104°F); operation outside this range will reduce the battery service life.

Maximum connection rates with built-in solar panel, in full sun:

  • 10 minute connections year round for latitudes less than ±40°
  • 10 minute connections through three seasons in other regions, reduced to 30 minute connections in winter

Maximum connection rates with external 5W or 15W solar panels:

  • 10 minute connections year round, in full sun
  • Connection rate with external solar panels may be less if deployed in partial sun

Battery life without solar recharging, with hourly connections and
1 minute logging:

  • RX2102: 3 months
  • RX2104: 2 months
  • RX2106: 3 months

RX2101 and RX2103 Battery Life:

Battery life with daily connections:

  • RX2101: 1 year with 1 minute logging
  • RX2103: 1 year with 2 minute logging

Battery life with hourly connections and 1 minute logging:

  • RX2101: 3 months
  • RX2103: 2 months

Note: Deployments in areas with weak cellular strength could reduce battery life.

RX2105 Battery Life:

Runs continuously with the included AC adapter. Batteries can be used as a backup to AC power; battery life of 3 months with 1 minute logging and daily connections or 2 months with 1 minute logging and hourly connections, and with approximately 10 motes. Note: Deployments in areas with weak cellular strength could reduce battery life.

Memory 16 MB, 1 million measurements, continuous logging
Alarm Notification Latency Logging interval plus 2–4 minutes, typical

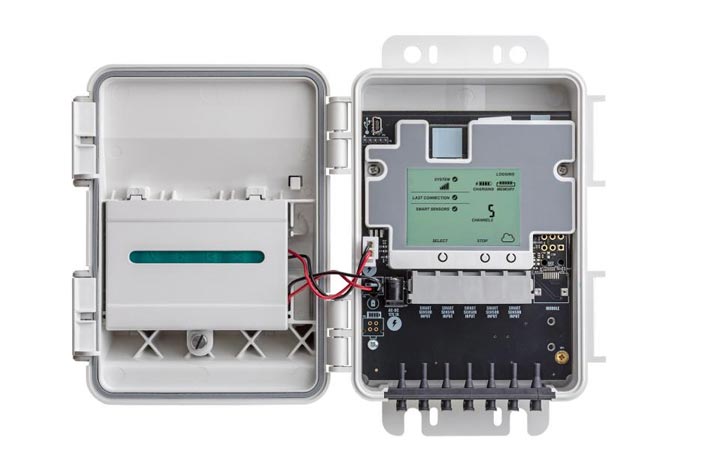

Enclosure Access Hinged door secured by two latches with eyelets for use with user-supplied padlocks
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
Materials Outer enclosure: Polycarbonate/PBT blend with brass inserts; Interior: Polycarbonate/PBT; Gasket: Silicone foam; Cable channel: Santoprene™ TPE; U-Bolts (not included): Steel with zinc dichromate finish
Dimensions 19.95 x 13.68 x 7.49 cm (7.85 x 5.39 x 2.95 in.)
Weight 678 g (23.9 oz)
Mounting Optional U-bolts are compatible with masts up to 4.14 cm (1.63 in.) mast diameter; can also be mounted with zip ties or mounted to a flat surface with screws
Environmental Rating Weatherproof enclosure, NEMA 4X and IP66 (requires proper installation of cable channel system)
Wireless Radio GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
Antenna 4G LTE
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU)
Taiwan Compliance - RX2105 and RX2106 Micro RX versions only
FCC ID QIPPLS62-W, IC ID:7830A-PLS62W
