Proteus Mobile Bluetooth Device
- Easily Access Data from the Proteus
- Wireless Bluetooth Connection to Mobile Device
- Compatible with a Range of Mobile Devices Android (Tablets and Smart Phones) and iOS (iPhone or iPad)
- Provides Power to the Multiprobe
Product Options
Overview
The Proteus Mobile wireless Bluetooth device provides a convenient, low cost way to access data from Proteus Instruments multiprobes.

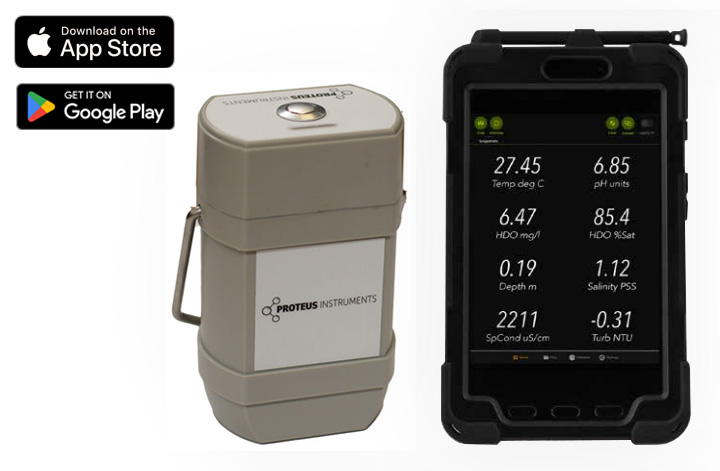

The Proteus Mobile device connects to the multiprobe using the underwater cable. A mobile device is then connected to the Proteus Mobile via Bluetooth allowing data to be viewed.
Manufactured by: Proteus Instruments
Model: Proteus Mobile Bluetooth Device
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Spot checking
Profiling
Low flow sampling
Lab use
Wireless communication to cable reels
Specification
| Operating Temperature | -5 to 50°C (23 to 122°F) |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
| Dimensions | 3 X 2 X 5 inches (7.62 X 5.08 X 12.7 cm) |
| Weight | 1.2 lb |
| Materials | PVC, Stainless Steel |
| Communications Protocol | BLE 4.2, 10 meter range indoors |
| Default Communication Settings | Baud: 19200; Data bits: 8; Parity bits: None; Stop bits: 1 |
| Battery Type | Lithium rechargeable, 4.4 A-Hr, 11.1 Volt |
| Battery Life | Fully charged will run up to 22 continuous hours with 13 sensors. Run time increases with fewer sensors; will vary depending on the type and number of sensors installed. |
| Charging Requirements | 12 V, 2 A, charger included |
| Warranty | 3 years |
