Amphibian Field Display Unit (Discontinued)

  • Ideal for downloading data in the field
  • Rugged and reliable
  • Instantaneous display of data Ideal for low-flow sampling
Product Options

Overview

This product has now been discontinued and replaced by the mantaMobile Bluetooth Device.

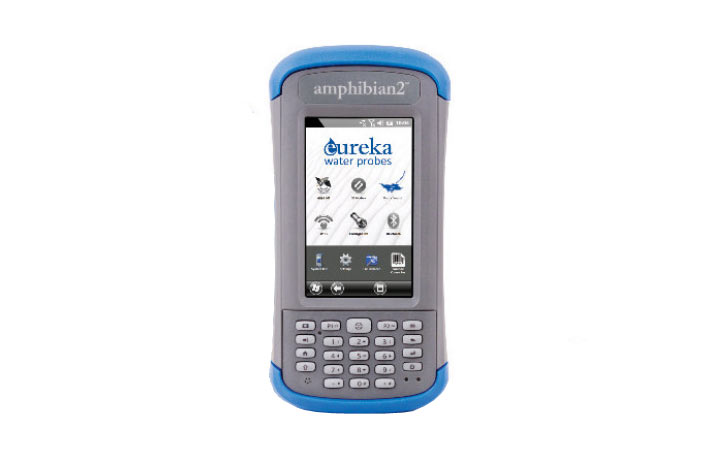

The Amphibian is a handheld Pocket PC which provides an effective solution to field monitoring needs. It has a waterproof, chrushproof case which meets military standards and has a built in rechargeable battery pack. It is suitable for use with the Eureka Multiprobe.

The Eureka software provides everything you need for use in the field and allows you to quickly view and graph your data.

The easy to use Pocket PC allows the user to set up rolling displays of data, capture a data frame, start a timed log, and average the data readings. It comes with Pocket Word and Excel.

The users contacts and address book can be easily managed. When connected, data is automatically connected to your desktop.

Components

  • Armor 3600 case with lifetime warranty
  • 12.0 volt rechargeable nickel metal hydride batteries
  • Battery charger
  • Sync cable

Manufactured by: Eureka
Model: Amphibian Field Display Unit (Discontinued)

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Downloading dataloggers & sensors in the field
Instantaneous display of readings.

Specification

Processor 520 Mhz PXA270 processor
Operating System and Software - Windows Mobile® 6.1 Classic
- Microsoft® Office Mobile
- Multiple languages
Memory and Data Storage - 128 MB RAM
- 512 MB internal data storage
- Compact Flash slot (Type I or Type II)
- SD/SDHC slot, SDIO supported
- CF and SD slots user accessible
Display - Active viewing area: 3.5” (89 mm) QVGA (240 x 320)
- High visibility active matrix TFT transflective backlit LCD
Keyboard

- Four-way directional button
- Discrete keys for Start, Applications Manager, Home, Context Menu, Return and Power/Suspend
- Key functions can be user-defined
- LED backlit keys

Ports - COM 1, RS-232C 9-pin D connector with 5VDC power on DTR pin
- USB Host - Mini A
- USB Client - Mini B
- 12 VDC @ 800mA power in, 10 - 18 V unregulated
- Communications module is user replaceable
Physical - Size: 6.5” length x 3.5” wide x 1.7” depth (165 x 89 x 43 mm)
- Weight: 17 oz (482g) with battery
- Magnesium case with scratch resistant powder coat
- Easy to grip, impact absorbing overmold
Environmental

- IP67 waterproof and dustproof
- Operating temperature: -22°F to 130°F (-30°C to 55°C)
- Storage temperature: -22°F to 140°F (-30°C to 60°C)
- Shockproof: multiple drops from 5 ft (1.5 m) onto concrete
- Tested to MIL-STD-810F for water, humidity, sand and dust, vibration, altitude, shock, temperature

Power

- Intelligent 3900mAh Li-Ion battery
- Operates for up to 20 hours on one charge
- Charges in 4 to 6 hours
- Battery easily changed in the field without tools

Wirelesss Connectivity Options - Internal Bluetooth® wireless technology option, 2.0 +EDR, Class 1, range 65 feet (20 meters)
- Wi-Fi supported (requires SDIO or CF Wi-Fi card for wireless networking)
Certifications and Standards - FCC Class B
- CE Mark
- EN60950
- RoHS Compliant
- FM Approved Class I, Div 2
