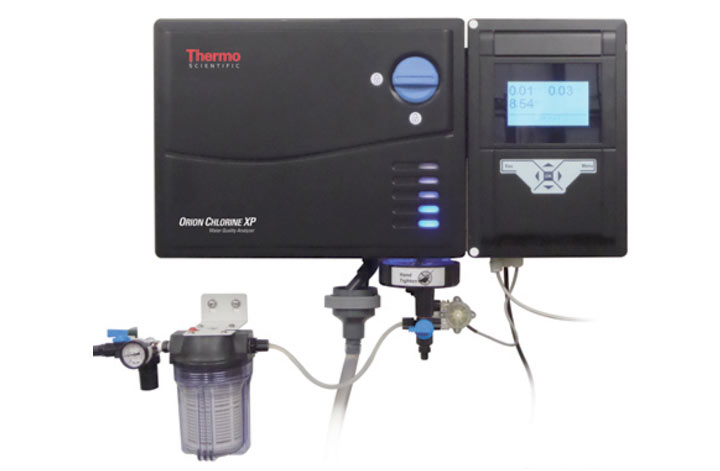

Thermo Scientific Orion Chlorine XP
- Low Maintenance Light source self calibration adjustment and maintenance reminders and alarms
- High Performance and Reliability Proven accuracy in the harshest sample conditions
- Warranty This product is covered by a 2 year warranty
Overview
The Thermo Scientific Orion Chlorine XP analyzer provides superb accuracy and stability for the measurement of chlorine in free, total and combined chlorine water. This analyzer provides one of the most comprehensive water quality monitoring solutions on the market. Self zero calibration before each reading gives a starting “0” reading. High performance and reliability in even the harshest of conditions has been proven, with a 0-10ppm measurement range in most applications.
The Chlorine XP analyzer is recommended as a general purpose chlorine measurement along with pH, temperature, ORP and flow in water quality measurement applications. �????�???�??�?� However, this new analyzer embodies the same quality and performance standards for which Orion process analyzers are well known for. Low maintenance requirements such as light source self calibration adjustment; maintenance reminders and alarms on average once a year, auto buffer recognition at 4, 7, 10 and hands free self cleansing of the photocell result in a user friendly device.
Manufactured by: Thermo Scientific
Model: Thermo Scientific Orion Chlorine XP
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Drinking Water Treatment
Wastewater Treatment
Power Generation
Food and Beverage Manufacturing
Dialysis Treatment
Specification
| Performance | |
| Accuracy | 3% |
| Repeatability | (+/- 5%) |
| Minimum Detection Limit | 10 ppb |
| Zero-Point-Adjustment | Self zero before each reading |
| Cycle Time | 2 to 10 minutes |
| Flow Monitoring | Rotary flow switch (see Additional Requirements section for inlet/outlet pressure) |
| Parameters | FC, TC, F&TC, ORP, pH, Temp. |
| Measuring Range | 0 to 10 ppm (Cl); 0-14 (pH); PT-100 Temp. |
| Reliability | |
| Warranty | 2 years |
| Validation | Contact factory |
| USEPA Accepted Method | Yes |
| CSA Certified | Yes |
| ISO Certified | Yes |
| Operations Requirements | |
| Maintenance | 1-2 months for reagent replacement and filter cleaning |
| Calibration | Every 6 months (pH and ORP only) |
| Reagent Usage | DPD up to 2 months at 5 min. cycle time |
| Power Consumption | Approx. 60VA |
| Power Supply | 100–115 VAC, 50/60Hz, 1.0A or 200–230 VAC 50/60Hz, 0.5A |
| Weight | 24 lbs. (11kg) |
| Dimensions | 67cm x 33cm x 14cm, 26” x 13” x 5.5” (WxHxD) |
| Options/features | |
| Alarms | Optional, see manual |
| Remote Monitoring | Not yet available |
| Enclosure | IP-65 rated enclosures (NEMA 4 equivalent) |
| Local I/O | 2 standard 4 to 20 mA outputs 4 optional 4 to 20 mA outputs |
| Memory | 256K |
| Lines | 1000 |
| Event Logger | Yes |
| Total Relay On Time | Yes |
| Display Type | 5.5” graphic monochromatic; character LCD with background light alarms and status |
| Password | Operator and technician |
| Servicing/ Maintenance | Self-cleaning photocell (minimum service requirement) |
| Additional Requirements | |
| Sample and Drain Connection | Pressurized sample inlet and gravity drain |
| Sample Temperature | 32°F to 212° F (0° C to 100° C) Ambient Temperature: 15° F to 131° F; (–10° C to 55° C) |
| Inlet Pressure | 5-15 psi |
| Sample Conditioning | Not required |
