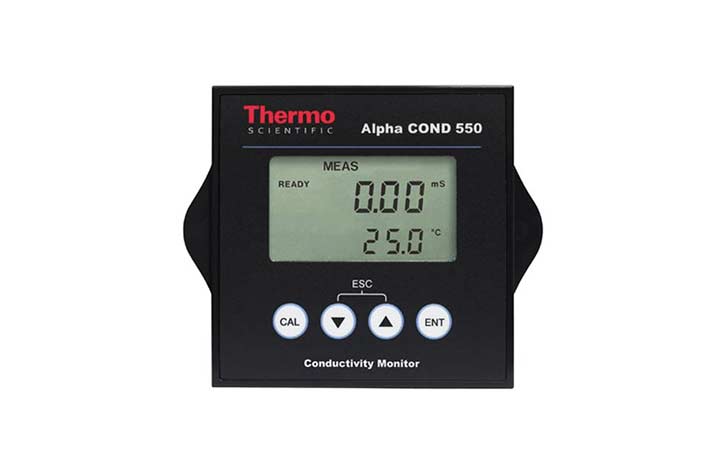

Alpha COND 550 Conductivity Monitor
- Automatic Temperature Compensation ATC ensures accurate measurements at different temperatures
- Warranty This product comes with a 1 year warranty
- Accuracy Ensured Accurcy across six conductivity ranges
Overview
If you require a no frills conductivity monitor the Alpha COND 550 Conductivity Monitor is the perfect option, featuring friendly operations and reliable conductivity measurements this is the ideal choise for a great price. This monitor features quick and easy calibration with push button off-set adjustment for ease of use, user selectable range, temperature coefficient to suit application needs including pure water measurements and cell constant.
±1% accuracy is delivered across six conductivity ranges, accurate measurements are ensured at different temperatures with Automatic Temperature Compensation. An additional feature of this monitor is that it comes with a large LCD screen for clear visuals in dark environments this is designed for both panel mounting and wall mounting.
This monitor comes with a 1 year warranty.
Manufactured by: Eutech Instruments
Model: Alpha COND 550 Conductivity Monitor
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Specification
| Conductivity | |
| Range | ... to 2 µS/cm ; ... to 20 µS/cm ; ... to 200 µS/cm ; ... to 2000 µS/cm ; ... to 20 mS/cm ; ... to 200 mS/cm |
| Resolution | 0.001 µS/cm ; 0.01 µS/cm ; 0.1 µS/cm ; 1 mS/cm ; 0.01 mS/cm ; 0.1 mS/cm |
| Accuracy | ±1 % full scale |
| Cell Constant | k = 0.1, 1.0, 10.0 |
| Temperature | |
| Range | -10.0 to 125.0 °C / 14.0 to 157.0 °F |
| Resolution | 0.1 °C / 0.1 °F |
| Accuracy | ±0.5 °C / ±0.9 °F |
| Sensor | Pt100; 2 or 3 wire |
| Compensation | Auto/manual |
| Coefficient | 0 to 10 % (selectable) |
| Normalization | 20.0 to 25.0 °C (selectable) |
| Electrical Data And Connections | |
| Conductivity Input | 2-pin terminal |
| Connection Terminal | 2-pin & 8-pin terminal, detachable blocks; DC jack |
| Display | |
| LCD | 7 segments display with symbols for status information |
| Power Supply | |
| Input | 12 to 24 V DC or 9 V DC |
| EMC Specifications | |
| Emitted Interference | According to EN 61326 |
| Immunity To Interference | According to EN 61326 |
| Environmental Conditions | |
| Operating Temperature Range | 0 to 40 °C |
| Max. Relative Humidity | 80 % up to 31 °C decreasing linearly to 50 % at 40 °C |
| Mechanical Specifications | |
| Dimensions (WxHxD) | 96 x 96 x 66 mm |
| Weight | 210 g (unit) / 310 g (packed) |
| Ingress Protection | IP65 |
