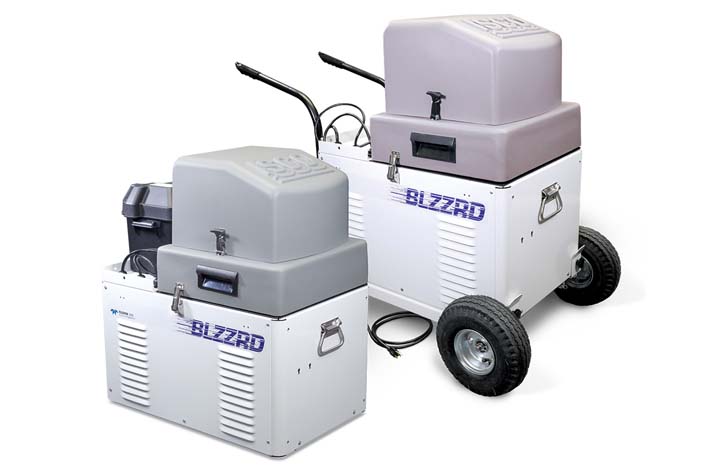

ISCO BLZZRD Portable Refrigerated Sampler

  • NEMA 4x, 6 (IP67) controller enclosure is watertight and dustproof
  • Patented pump revolution counter ensures accurate sample volumes
  • Sample delivery at the EPA-recommended velocity of 2 ft/sec., even at head heights of 26 feet
Product Options

Overview

BLZZRD is a portable refrigerated sampler with active cooling from either AC or battery power. Its controller offers all advanced controls, interfaces, data logging, and remote communication features.

Based on Teledyne ISCO’s industry-leading 6712 controller, you get all the advanced control, data logging, and communication features of the 6712, with cooling from either AC or battery power. Bottle? options include 5- and 2.5 gallon composites as well as 4 x 1-gallon and 14 x 950 ml sequentials. A 12V deep-cycle battery delivers 48 hours—or more—of refrigeration. The power-saving cooling system remains on standby until the first sample is drawn, and only then switches on to preserve the collected samples for pickup. Available routines include: pause-and-resume for intermittent discharge flow monitoring; sampler pacing by time, non-uniform time, flow or external event; and random interval sample collection.?

Manufactured by: Teledyne ISCO
Model: ISCO BLZZRD Portable Refrigerated Sampler

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

BLZZRD Sampler

Size (HxWxL): 28 x 18.5 x 31.5 (71 x 47 x 80 cm)
Weight: Dry, less battery - 74 lbs (34 kg)
Power Requirements: 12 VDC, 6 Amps (supplied by external battery), OR 90 to 264 VAC, 47 to 63 Hz, 2 Amps
Bottle Configurations: 5-gallon poly bottle
2.5-gallon glass bottle configuration
2.5-gallon poly bottle configuration
1-gallon poly bottle configuration (4 bottles)
950-mL poly bottle configuration (14 bottles)

Pump

Intake suction tubing: 3 to 99 ft (1 to 30 m); Material: Vinyl or Teflon; Inside dimension: 3/8 in (1 cm)
Pump tubing life: 3 to 99 ft (1 to 30 m); Material: Vinyl or Teflon; Inside dimension: 3/8 in (1 cm)
Typical repeatability: ±5 mL or ±5% of the average volume in a set
Maximum lift: 28 ft. (8.5 m)
Typical line velocity @ Head height: 3.0 ft./s @ 3 ft; 2.9 ft./s @ 10 ft; 2.7 ft./s @ 15 ft. (0.91 m/s @ 0.9 m; 0.87 m/s @ 3.1 m; 0.83 m/s @ 4.6 m)
Liquid presence detector: Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights.

Controller

Weight: 13 lbs. (5.9 kg)
Size: 10 x 12.5 x 10 inches (26 x 32.x 25 cm)
Enclosure rating: NEMA 4X, 6 (IP67)
Program memory: Non-volatile ROM
Flow meter signal input: 5 to 15 Vdc pulse or 25 millisecond isolated contact closure
External trigger: Initiates sample collection and cooling from contact closure signal
Number of programmable composite samples: 1 to 999 samples
Clock Accuracy: 1 minute per month, typical, for real time clock

Software

Sample frequency: 1 minute to 99 hours 59 minutes, in 1 minute increments. Non-uniform times in minutes or clock times 1 to 9,999 flow pulses
Sampling modes: Uniform time, non-uniform time, flow, event. (Flow mode is controlled by external flow meter pulses.)
Programmable sample volumes: 10 to 9,990 mL in 1 mL increments
Sample retries: If no sample is detected, up to 3 attempts; user selectable
Rinse cycles: Automatic rinsing of suction line up to 3 rinses for each sample collection
Program storage: 5 sampling programs
Sampling Stop/Resume: Up to 24 real time/date sample stop/resume commands
Controller diagnostics: Tests for RAM, ROM, pump, display, and distributor
