ISCO Glacier Portable Water Sampler

ISCO Glacier Refrigerated Portable Water Sampler from RS Hydro

MCERTS: The environment agency's monitoring certification scheme
Revolutionary Design: Easy transport, quick setup and accurate sample preservation delivered by 48 hours or more if refrigeration from 12 volt deep cycle battery or can run on AC power
Accurate Sample Volumes: Patented LD90 non-contacting Liquid Presence Detector and pump revolution counting system ensure accurate samples

The cart is updated.

Overview

Specifications

Downloads

Standard Features

Watertight and dustproof controller enclosure (NEMA 4x, 6 (IP67).
Runs on 12 Volt deep cycle battery or 240/120V AC power.
Programs can be recalled and run with two keystrokes.
Controller is easy to program and dependable, using field-proven technology to ensure ease of operation, reliability and durability.
Pump revolution counting system and LD90 non-contacting Liquid Presence Detector ensure sample volumes are accurate.
Min, max and average temperature are displayed on LCD screen, and in a file that's downloadable using Samplink software.
Actual measured sample temperature is stored by the controller.
Composite samples can be collected in 10 or 20 litre bottles
ProPak single-use liners can eliminate bottle washing

Services offered for this product

Sales
Rental
Installation
Calibration
Maintenance

Applications

Stormwater sampling
Biomonitoring - where accurate sample preservation is needed
Influent and effluent sampling - Glacier can be easily moved in-plant to collect monthly or weekly at multiple sampling points
MCERTS sampling

Glacier® Transportable Refrigerated Sampler
Size	25 x 15 x 24 inches (63 x 38 x 60 cm)
Weight	Dry, less battery - 60 lbs (28 kg)
Bottle Configurations	One 10 Liter PE or Glass; One 20 Liter PE; One 9 Liter ProPak composite sample container with disposable liners
Power Requirements	12 VDC (Supplied by external battery), or 120/240 VAC power with included line cord.
Cooling	CFC-free refrigeration system maintains sample temperature at 3°C ± 1°C at ambient temperature of 0°C to 40°C.
Pump
Intake Purge	Purge before and after each sample.
Tubing Life Indicator	Provides a message to change pump tubing.
Intake Suction Tubing	Length 3 to 99 ft. (1 to 30 m), Vinyl or PTFE lined, ID 0.375 in. or 0.250 in
Pump Tubing Life	2,000 samples
Typical Repeatability	±10 ml
Maximum Lift	26 ft. (7.9 m)
Typical Line Velocity @ Head Height	2.9 ft./s @ 3 ft; 2.5 ft./s @ 10 ft; 1.9 ft./s @ 15 ft. (0.88 m/s @ 0.9 m; 0.76 m/s @ 3.1 m; 0.58 m/s @ 4.6 m)
Sample Presence Detector	Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights.

Controller
Weight	8 lbs. (3.6 kg)
Size	10 x 12.5 x 10 inches (26 x 32.x 25 cm)
Operational Temperature	32° to 120°F (0° to 49°C)
Enclosure Rating	NEMA 4X, 6 (IP67)
Program Memory	Non-volatile ROM
Flow Meter Signal Input	5 to 15 volt DC pulse or 25 millisecond isolated contact closure for flow-paced sampling.
External Trigger	Initiates sample collection and cooling from contact closure signal
Number of Samples to Shutoff	999 samples maximum with 5 gallon (19 liter) bottle.
Clock Accuracy	1 minute per month, typical, for real time clock
Software
Sample Frequency Selection	1 minute to 9,999 minutes, in 1 minute increments. 1 to 9,999 flow pulses
Sampling Modes	Time or flow, event. (Flow mode is controlled by external flow meter pulses.)
Programmable Sample Volumes	10 to 9,990 ml in 1 ml increments
Program Storage	One program running, one stored
Controller Diagnostics	Tests for RAM, ROM, pump, and display

Files and software available to download:

Specification
Manual
Pocket Guide

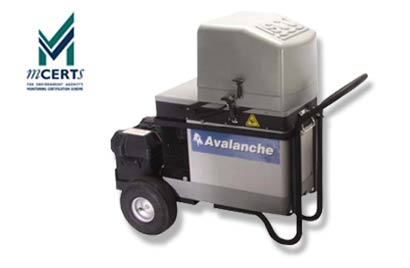

ISCO Avalanche Portable Refrigerated Sampler

Based on the industry leading 6712 controller the Avalanche Auto-Sampler combines on-the-go cooling via a 12-volt deep cycle battery (delivers 48 hours or more of refrigeration) or AC power, with the advanced control, communication and data logging features of the 6712 controller.
