AquaProbe Insertion Flow Meter

  • Accurate For temporary or semi-permanent flow logging to meet monitoring needs
  • Economical Measurement For Flow Eliminates the need for using full bore meters
  • Easy Installation No need for major excavation or alteration to pipework, fixes to existing pipelines
  • RENTAL Fleet available Experienced engineers available for support or installation
Product Options

Overview

Accurate probe for temporary or semi-permanent flow logging.

  • Flow Range 0-10m/sec
  • Accuracy ±2% of rate
  • Pipe Size: 200-5000mm
  • Fluids: any electrically conductive fluid >50mS/cmGeneral

Insertion meters are an economic alternative to full-bore metering and can be temporarily or permanently installed to meet flow monitoring needs. Insertion meters can be used as a portable survey too where occasional measurement at many points is required or to improve knowledge of the distribution network. They can be used for the measurement of flow in large diameter pipes more economically than using full bore meters.

Their high sensitivity and versatility also enables flow profiles to be measured within a pipe. A gauging rod is used to determine the exact position of the head in the pipe. This is ideally, but not necessarily, in the centre of the pipe, for example with large diameter pipes. Insertion and removal can be carried out on live mains, without disruption to the supply, by fitting suitable gate valves at the tapping points.

Key Features

  • Permanent or temporary deployment
  • Economical measurement of flow - especially in large diameter pipes
  • Useful for surveying and network analysis
  • Bulk meter calibration application
  • Can be used for flow profiling
  • Easy to install and use
  • Can be inserted and moved under pressure
  • Can be used with any pulse/4-20mA datalogger

Design

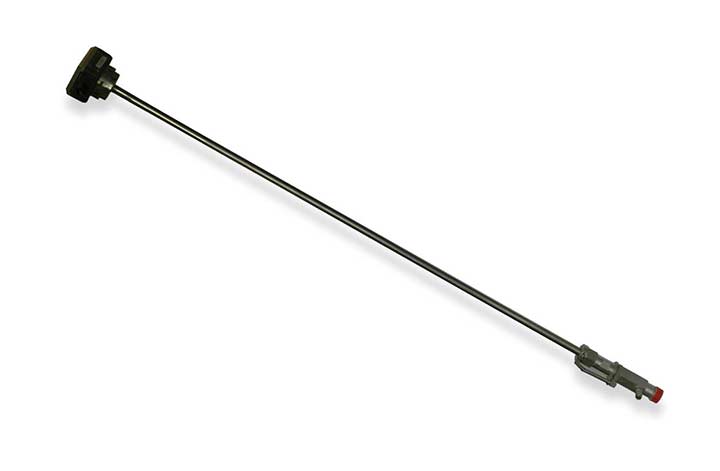

The AquaProbe insertion meter comprises an electromagnetic sensing head mounted on the end of a support rod. The whole assembly can be installed in existing pipelines without the need for the major excavation or alteration to pipework associated with full bore meters. It can also be fitted without interruption to the flow and can be easily removed for periodic calibration or inspection, or inserted at a second location through the provision of tappings and valves on the supply pipelines.

Key features are the wide flow range, with minimum velocities well below insertion turbine or DP devices, and no moving parts, resulting in increased reliability and reduced maintenance. The AquaProbe insertion meter meets the widest variety of site requirements and applications, from permanent monitoring through to site surveying. The transmitter is fully submersible, thus enabling it to be locally mounted in chambers, which are liable to flooding or up to 200m remote from the probe.

The AquaProbe insertion meter is the ideal solution where there is no external power. User-replaceable batteries provide up to 2 years of battery life. Flow Range 0-10m/sec Accuracy ?2% of rate or ?2mm/sec, whichever is the greater.

Manufactured by: ABB
Model: AquaProbe Insertion Flow Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Distribution flow monitoring
Temporary flow monitoring projects
Battery powered

Specification

Sensor
Maximum insertion length 300mm (12 in.), 500mm (20 in.), 700mm
(25 in.) and 1000mm (40 in.)
Pipe sizes 200mm to 8000mm (8 in. to 320 in.)
nominal bore
Max. pressure 20bar (295 psi)
Pressure tapping provision 1/8 in. BSP (1/8 in. NPT)
Connection 1 in. BSP, 11/2 in. BSP (1 in. NPT)
Flow condition Fully developed profile in accordance with
ISO 7145-1982 (BS1042 section 2.2.)
Conductivity >50µS/cm
Accuracy
Velocity ±2% of Rate or ±2mm/s (±0.08 in./s )
whichever is the greater
Volume Refer to ISO 7145-1982 (BS 1042 section
2.2) for details
Materials of construction Wetted parts: stainless steel, PVC (UKWFBS
listed)
Seals Nitrile rubber (UKWFBS listed)
Terminal box Aluminium alloy
Environmental data
Storage -20°C to +70°C (-4°F to 158°F)
Operation -20°C to +60°C (-4°F to 140°F)
Fluid (water) 0°C to +60°C (32°F to 140°F)
Mechanical data
Mounting Directly into the pipeline through a
fitting or valve with 25mm (1 in.) minimum
clearance
Protection IP68/NEMA6 [for submersion to 10m
(30 ft) indefinitely]
Weight < 3.5kg (7.7 lb)
Maximum flow The maximum velocity depends upon
the actual insertion length; typical
insertion lengths are 1�¢??8 and 1�¢??2 pipe
diameter. The graph gives an approximate
indication of the maximum
allowable velocity for different insertion
lengths.
Transmitter
Mounting Remote only
Battery life Typically 21/2 years (2 batteries)
1 year (1 battery)
Outputs
Pulse outputs Isolated ±35V d.c. 30mA - two bidirectional
solid state switches with common
Output 1- Forward only, or forward
plus reverse pulses
Output 2 - Reverse pulses or direction
indicator
Pulse output - 50 Hz maximum, 50%
nominal duty cycle
Serial data
communications
Local Port (option) - RS232 compatible
via ABB lead
Remote Port (option) - RS232 with RI,
RTS and CTS handshaking
Response time
(programmable)
a.c. and d.c. units <1s
Default 3s
Battery units - 15s
Materials of construction
Enclosure Aluminium alloy, glass window
Electrical connections 20mm glands (plastic or armoured),
or accepts 1/2 in. NPT threaded or
military style plug and socket
Sensor cable ABB supplied - 80m max. separation.
Special - 200m separation (on application)
Supplied and potted in lengths of 3, 10
and 30m (10, 30, and 100 ft) as standard
Optional plug and socket connection
Armored cable also available
Power supply
Type AC
Battery
Voltage range (V)
absolute rating
85 to 265
3.6 (Lithium)
Frequency (Hz) 47 to 440
VA <10
Environmental data
Operational temperature
limits of battery
for above specified battery life)
0°C to 50°C (0 to 122°F)
Temperature Storage -20°C to +70°C (-4°F to +158°F).
Ambient - 20°C to +60°C (-4°F to +140°F).
