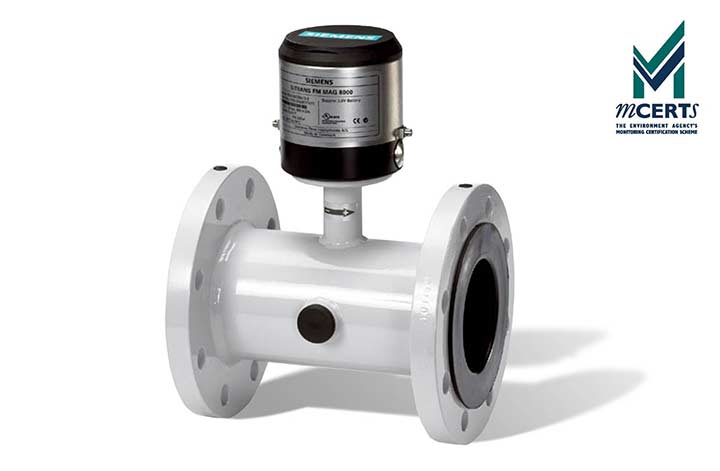

Battery Powered MAG 8000W Water Flow Meter

  • Battery Powered - Up to 10 years battery life Accuracy of down to 0.2% of rate
  • Choice of Transmitter Mounting Choice of compact or remote mount transmitter with factory mounted cable
  • Easy to Install The simple sensor needs to be be bolted into place before operation
  • IN STOCK & 2 YEARS WARRANTY Next Day Delivery
  • MCERTS Certified
Product Options
7ME6810-2YC31-1AA1

Overview

The Siemens MAG 8000W flow meter is an affordable battery powered water meter, providing the flexibility to install a reliable water meter virtually anywhere. No mains power is required as the MAG 8000 can use an internal or external battery pack, which allows operation in stand-alone applications for up to 10 years.

MAG 8000W water meter complies with the OIML R49 and European CEN EN 14154 water meter standard and is specially engineered for stand-alone water applications.

MAG 8000W battery powered flow meter boasts 6 - 10 years maintenance-free battery-powered operation, and delivers best-in-class performance to optimize water supply. It is optimized for leakage detection and is often used for accurate billing. The integrated datalogger can be twinned with the use of a selectable alarm to signal too-high or too-low flow.

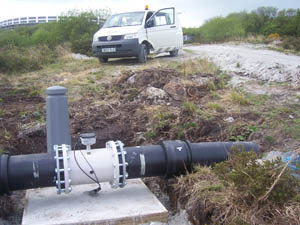

Installation is easy - there is a simple sensor that needs to be bolted in place before operation. There is no need for mains power and the flowmeter comes complete with a compact or remote transmitter with factory mounted cable . The MAG 8000W flow meter is built to withstand environmental influence and as the enclosure isIP 68/ NEMA 6P, it is robust and can be buried and flooded without damage to the flow meter. It also has a special coating to protect against abrasive media. It has no moving parts to wear or clog, so the MAG 8000 is resistant to solids and debris in the fluid. There will be no need for regular maintenance.

  • High accuracy down to 0.2% of rate
  • Bi-directional measurement
  • Repeatability of 0.1%
  • Long lasting performance
  • 6 - 10 years operation in typical revenue applications
  • No moving parts that wear and tear
  • Coned flow tube design for optimal low flow detection
  • Robust construction built to resist environmental influence
  • Intelligent information
  • Integrated data logger for consumption profile and operation
  • Battery power management with customer selectable alarm level
  • Advanced features like leakage detection and flow statistics
  • Advanced operation test and diagnostics information
  • Graphic display and key provides simple access to data on site.

MCERTS

The Siemens Battery Powered MAG 8000W is now MCERTS certified meeting the Environment Agency's performance requirements. View downloads for certificate.

Manufactured by: Siemens-Milltronics
Model: Battery Powered MAG 8000W Water Flow Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Abstraction - Monitor water collection and avoid draining
Distribution network - Optimize water supply and reduce leakage
Flexible power supply makes it useful for leak detection
Revenue metering - Provide correct billing and monitoring of consumption
Irrigation - Ensure long-term performance for optimal ownership

Specification

Nominal size From DN 25 to DN 1200 (1” to 48”)
From DN 50 to DN 300 (1” to 12”) (SITRANS F M MAG 8000 CT)
From DN 50 to DN 600 (2” to 24”) (SITRANS F M MAG 8000 Irrigation)
Accuracy 0.2% ± 2mm/s and 0.4% ± 2mm/s
0.8% ± 2.5 mm/s (SITRANS F M MAG 8000 Irrigation)
Input / Output 2 passive outputs
Communication

IrDA: Standard integrated infrared communication interface with MODBUS RTU protocol

RS232 or RS485 serial interface with
MODBUS RTU

Encoder interface (for Itron 200 WP) with "Sensus protocol"

Optional GSM/GPRS Wireless Communication Module

Power Supply Internal or external battery pack
12-24 V AC/DC and 115-230 V AC
Operating Pressure Max. 16 bar (Max. 150 psi)
Max. 7 bar (Max. 101 psi) (SITRANS F M MAG 8000 Irrigation)
Ambient Temperature From -20 to 60 °C (-4 to 140 °F)
Medium Temperature From 0 to 70 °C (32 to 158 °F)
From 0.1 to 50 °C (32 to 122 °F) (SITRANS F M MAG 8000 CT)
Liner EPDM
Ebonite hard rubber (SITRANS F M MAG 8000 Irrigation)
Electrodes Hastelloy C 276
Stainless steel AISI 316 (SITRANS F M MAG 8000 Irrigation)
Enclosure IP67 (NEMA 4)
IP68 (NEMA 6P)
Material Transmitter:Stainless steel top housing (AISI 316)
and coated brass bottom.
Sensor: Carbon steel
Approvals WRAS, KTW, DVGW 270, ACS, Belgaqua, NSF/ANSI Standard 61,
MID (EU), OIML R49, MCERTS Sira Certificate No. MC080137/00
NMI 10 for SITRANS F M MAG 8000 Irrigation (under preparation)
