Solinst 415 12V Submersible Pump

  • Lightweight, Portable & Compact System
  • Easy to operate
  • 3-Year Warranty* *3 year warranty on pump controller
Product Options

Overview

The Solinst 12V Submersible Pump provides an efficient means of purging and obtaining groundwater samples from monitoring wells.

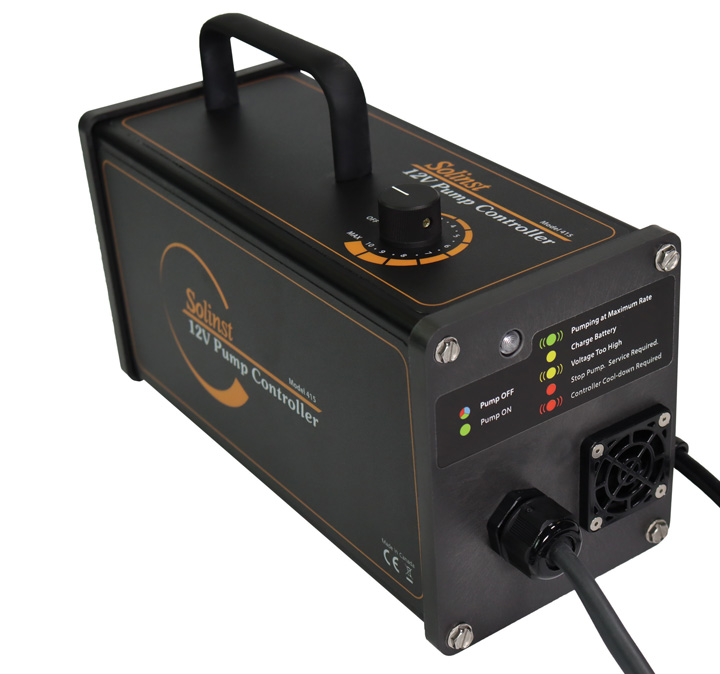

The 12V Submersible Pump and 12V Pump Controller are lightweight, portable, and easy to set up, deploy and operate. The Pump’s sleek, short design ensures it fits easily down wells without hang-ups.

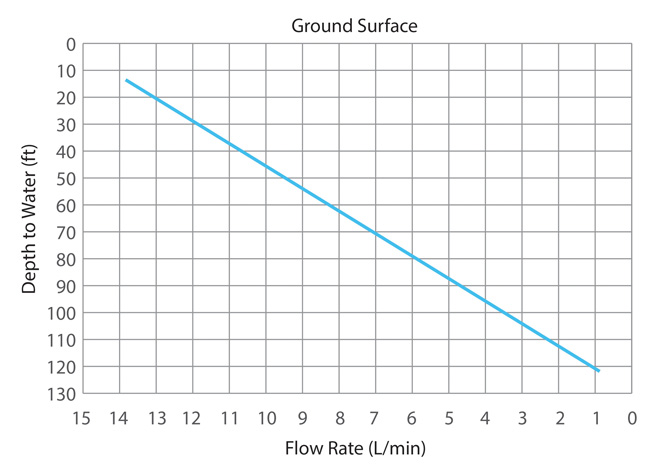

The Solinst 12V Submersible Pump is capable of pumping groundwater from 36.5 m (120 ft) below ground surface, with flow rates up to 13.5 L/min (3.6 US gpm) in shallow conditions.

Manufactured by: Solinst
Model: Solinst 415 12V Submersible Pump

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

- High and low-flow groundwater sampling for general chemistry
- High purge rates ideal when sampling using three volume purge protocol
- Useful when performing constant head tests in environments with high K (hydraulic conductivity)

Specification

Sampling Depth As much as 36.5 m (120 ft) below ground surface
Flow Rates Up to 13.5 L/min (3.6 US gpm)
Pump Cable Length 40 m (130 ft)
Pump Cable Weight 3.5 kg ( 7.8 lbs)
Wetted Materials ABS pump body, 304 stainless steel motor, impeller and eyebolt, poly-
propylene hose barb, nitrile/buna o-rings and seals, PVC jacket electrical wire
Pump Size 4.78 cm OD x 13.97 cm long (1.88" x 5.5")
Pump Weight 0.8 kg (1.8 lbs)
Controller Size 33 cm x 13 cm x 17 cm (13" x 5" x 6.5")
Controller Weight 3.4 kg (7.5 lbs)
Controller Cable Length 1 m (3.5 ft)
Power Source 12V Deep Cycle 60 amp AGM Battery or larger, or vehicle or marine battery.
Voltage Required 12.5V–15V at source
Power Draw 20mA (when dial is OFF), 3A (dial is at 1) to 36A (dial is at MAX (10)
Max. Run Time Continuous, as long as Pump fully submerged during operation
Warranty 12V Submersible Pump: 90 Days
12V Pump Controller: 3 Years

Downloads

FAQ's

No, Solinst certifies that PFAS is not used, or knowingly present in the manufacturer, or production of their products. www.rshydro.co.uk/files/Solinst-PFAS-Statement.pdf
