Solinst 101D Water Level DrawDown Meter

101D Water Level DrawDown Meter

  • Different tape lengths available Tape lengths up to 5000ft (1500m) available
  • Easy to switch between modes One convenient toggle makes it easy to switch between two functions
  • Replacement tapes are interchangeable with other Meters
Product Options

Overview

The new 101D Water Level DrawDown meter features the same qualities as the previous 101 P7 Water Level meter, with the added benefit of a simple toggle to switch from static water to drawdown mode.


The drawdown function is used to monitor falling hydraulic head during low flow sampling, pumping or other aquifer and well tests. It also ensures the submersion of a pump’s intake during purging or well development. Water level mode allows accurate depth water measurement for a range of applications.


The 101D uses a stainless steel probe that is corrosion resistant, that connects to a precisely marked flat tape which come in lengths up to 5000ft, fitted to reel. It is powered by a standard 9 volt battery. The battery test button can check the circuits for both modes.


In water level mode, the electronic circuit is completed when the zero point of the probe enters the water, activating a light and buzzer. The depth is then read off the tape. In drawdown mode the circuit is reversed and the light and buzzer are activated when the probe is in the air. The sensitivity control allows the buzzer to be turned down in cascading water, ensuring clear signal in both high and low conductivity conditions.

Manufactured by: Solinst
Model: 101D Water Level DrawDown Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Measuring depth to water in wells, boreholes, standpipes and tanks
Monitoring drawdown during:
Pumping, slug, hydraulic conductivity, step and other aquifer/well tests
Low flow groundwater sampling
Well development and purging
Dewatering applications

Specification

Operating temperature of reel: -20°C to +50°C
Submerged operating temperature (tape/probe): -20°C to +80°C
Wetted materials (tape/probe): PVDF, Santoprene, Delrin, Viton, 316 stainless steel
Probe pressure rating: Submersible to 1000 ft. (300 m)
Probe weight: ~4.5 ounces (128 g)
Probe size: 5/8" dia., 5.38" long (16 mm x 137 mm)
Reel IP rating: IP64 (dust and splash proof)

Downloads

FAQ's

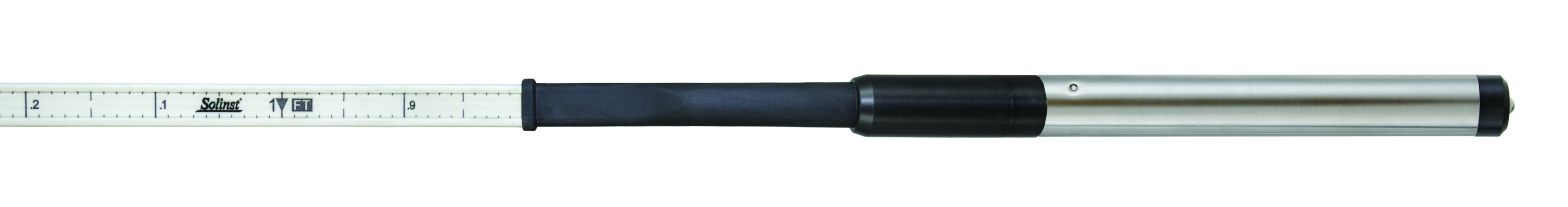

The P7 probe is pressure rated and can be entirely submerged up to 300m, so can be used to measure total well depth. The zero point on this probe is very near to the probe tip and therefore has near to zero displacement.


Size: 16mm x 137mm

Weight: 128g

The P7 probe connects promptly to the Tape seal plug of the Solinst PVDF Laser Marked flat tape used and, if required, the tape seal plug can be replaced with ease.

The P2 probe is used for tagging the water level and therefore should ideally not be submerged, but has a shielded design to significantly reduce false readings in descending water. The zero point is near the middle of the probe so more displacement may occur.


Size: 14mmx190mm

Weight: 200

The P2 probe is permanently installed onto the heat embossed high quality polyethylene tape.

Both use a flat tape which come with markings every millimetre or 1/1000 ft and have a thick dog-bone design to deter from attachment to wet surfaces.
