HOBO USB Micro Station Data Logger
Overview

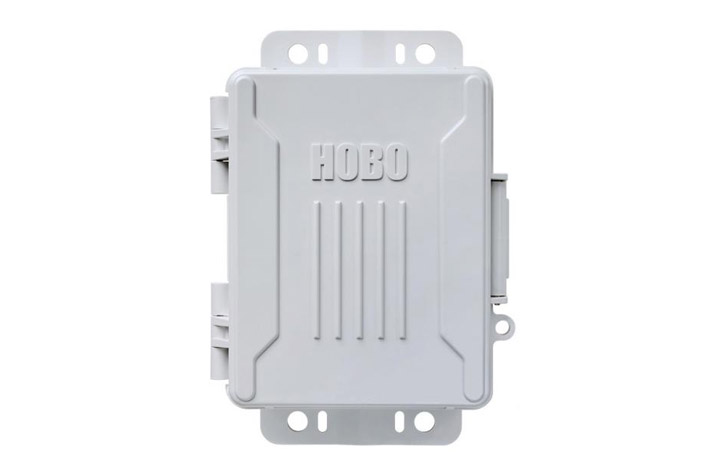

Rugged and compact, the redesigned HOBO USB Micro Station is a weatherproof data logger for multi-channel monitoring of microclimates. This battery-powered station accepts up to five plug-and-play Smart Sensors and has a hinged door to make sensor installation simple and quick. The Micro Station is equipped with a built-in USB port for fast, efficient data readout to a computer, and integrated mounting tabs for easy installation.
Looking for a cellular option? The MicroRX Station offers integrated solar panel or battery-power for affordable remote data offload via 4G cellular.
Interested in water level and flow monitoring? The MicroRX Water Level Station combines the MicroRX Station with Onset’s own water level sensor and pre-programmed water flow formulas.
Manufactured by: Onset
Model: HOBO USB Micro Station Data Logger
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
4-20mA
Amp hour (Ah)
Barometric pressure
DC voltage
Dew point
Kilowatt hours (kWh)
Leaf wetness
Light Intensity
PAR
Power factor (PF)
Pulse input
Rainfall
Relative humidity
Soil moisture
Solar radiation
Temperature
Volt-Amp Reactive, Volt-Amp Reactive hour, Volt-Amps (VA)
Water Flow
Watt Hours (Wh), Watts (W)
Wind
Specification
| Logger | |
| Operating Range | -20° to 50°C (-4° to 122°F) with alkaline batteries -40 to 70°C (-40 to 158°F) with lithium batteries |
| Smart Sensor Connectors | 5 |
| Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Logging Interval | 1 second to 18 hours |
| Start Modes | Immediate, at interval, push button, or delayed start |
| Memory Modes | Stop when full or wrap when full |
| Memory | 512 KB nonvolatile flash data storage |
| Time Accuracy | 0 to 2 seconds for the first data point and ±5 seconds per week at 25°C (77°F) |
| Battery Type | Four AA 1.5 V alkaline batteries for operating conditions of -20° to 50°C (-4° to 122°F); four AA 1.5 V lithium batteries for operating conditions of -40 to 70°C (-40 to 158°F) |
| Battery Life | 1 year, typical use (up to five sensors with 1 minute or greater logging interval) |
| Communication Type | USB 2.0 interface |
| Full Memory Download Time | 4 minutes |
| Enclosure Access | Hinged door secured by one latch with eyelet for use with user-supplied padlock |
| Materials | Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge pins; Gaskets: Silicone rubber; Cable channel: EPDM rubber |
| Dimensions | 17.04 x 11.94 x 4.47 cm (6.71 x 4.70 x 1.76 in.) see diagrams in manual Padlock hole diameter: 0.58 cm (0.23 in.) |
| Weight | 414g (14.6 oz.) |
| Environmental Rating | Weatherproof enclosure, NEMA 4X and IP66 |
