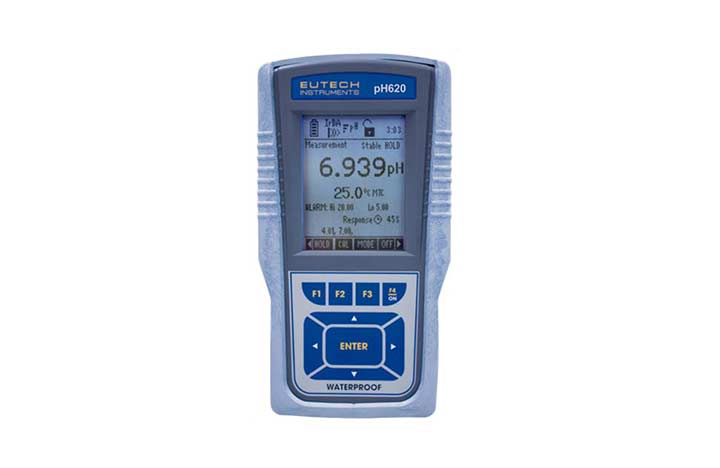

CyberScan pH 620

  • Warranty Covered by 3 year meter warranty
  • Buffer Options 20 buffer options with custom and auto buffer recognition
  • Complimentary Software Complete with Eutech CyberComm 600 DAS software
Product Options
ECPHWP62042K

Overview

The CyberScan pH 620 features a large easy to read screen with user-friendly icons making it the ideal equipment for measuring pH and Ion up to 0.001 resolution. On screen features include electrode status, calibration information, temperature and pH or Ion measurements at 3 digit resolution. For ease of use there is a hold function which momentarily freezes readings for easy viewing and recording. The CyberScan pH 620 is capable of storing/recalling up to 500 data sets with temperature readings, complete with time and date stamping formatted to meet GLP standards.

Other features which make the CyberScan pH 620 the ideal choice are cal-due alarm which prevent out dated calibrations, set point alarms which warn when readings are outside set-point limits, recall electrode slope, electrode offset value and previous calibration values for easy reference plus the advantage of being self diagnostic with message codes for easy troubleshooting. Another helpful feature of the CyberScan pH 620 is the volatile memory which holds settings and stored data even when the batteries runs out.

Data transfer is a simple process using the wireless and cable free data transfer with infrared IrDA technology. The addition of the complimentary Data Acquisition Software (DAS) software enables hassle free data import and report generation into any spreadsheet programme of your choice. Auto logging function automatically logs readings at user-set intervals which is perfect for continuous monitoring.

The CyberScan pH 620 comes protected in a rugged and waterproof casing to IP67 standard with protective rubber boot and handy Velcro strap for better grip. The CyberScan pH 620 has the option of being powered either by batteries or AC adapter for use in the field. This product is covered by a 3 year meter warranty.

Manufactured by: Eutech Instruments
Model: CyberScan pH 620

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Water Conditioning Plants
Conditioning Plants
Cooling Towers
Food Processing Water Testing
Printing and Chemical Industries
Water/Wastewater Treatment
Ecology Studies
Aquariums
Hydroponics

Specification

pH Range -2.000 to 19.999 pH
Resolution & Accuracy (±1 LSD) 0.1/ 0.01/ 0.001&±0.002 pH
mV Range ±2000 mV
Resolution & Accuracy (±1 LSD ) 0.1mV & ±0.2mV
Ion Range 0.001 to 19900
Units ppm/ molar/ mgL
Resolution & Accuracy 2/ 3 digits &
0.5% FS (Monovalent) / 1% (Divalent)
Temperature Range -10.0 to 110.0 °C (14.0 to 230 °F)
Resolution & Accuracy 0.1 °C/ 1.0°F
Temperature Compensation Automatic / Manual (0 to 100 °C)
No. of Calibration Points Up to 6 points
Cal Due Alarm Yes (Days - Max 30)
pH Buffer Options USA, NIST, DIN, PWB
Custom Buffer Calibration Yes (2 to 5)
Slope/ Offset Display Yes (Display + Icon)
Inputs DC phono sockets, 8 pin connector, BNC
LCD Display Back-lit Dot Matrix
Memory 500 data sets
Output Yes (IrDA/ RS232C)
Special Functions Stability Indicator; Self-diagnostic; Non-Volatile Memory; Hold & Auto-Power Off after 20 minutes
GLP Yes
Ingress Protection IP67
Power 4 “AAA”' x 1.4V batteries or 9VDC power adapter
