ISCO 710 Doppler Flow Meter Module (Discontinued)
- Flow and level measurement in streams Triggering the 6712 sampler based on level or flow
- Stormwater monitoring & Combined sewer overflow studies
- Non-contacting ultrasonic sensor
- Current flow and level values are viewable on the sampler's LCD display and logging software
Overview
PRODUCT DISCONTINUED - REPLACED BY THE 720 Submerged probe flow module, 730 Bubbler flow module, OR THE 750 Area Velocity Flow Module (APPLICATION DEPENDENT).

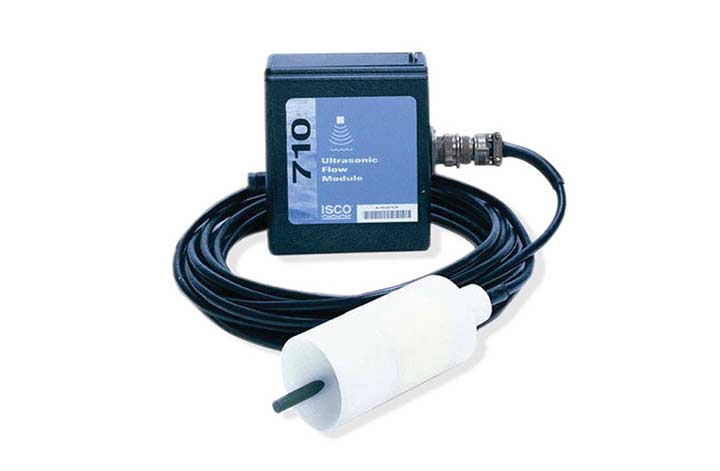

The ISCO 710 Doppler flowmeter module for open channels, streams and culverts plugs into the 6712 Sampler to create a combination sampler and flowmeter. The doppler sensor mounts above the flow stream and a pulse of sound is transmitted and reflected back from the surface of the liquid. The time elapsed between transmission and receiving the echo is proportional to the level of the liquid, which is then converted into flow rate by the sample controller.. The liquid level is then converted into flow rate by the sampler controller. To ensure measurement accuracy a temperature probe that's built-in to the sensor automatically compensates for changes in air temperature.
The 710 doppler flowmeter is the ideal choice for measuring flow streams with corrosive chemicals, suspended solids, high concentrations of grease, or silt, as the sensor does not contact the flow stream. This also gives long term dependability and reduces maintenance.
Standard Features of the 710 Module
- Ultrasonic, non-contacting sensor unaffected by the composition of flow streams.
- LCD display shows current flow and level values during operation.
- All level data stored in the sampler is available for retrieval and can be used in reporting, graphing and analysis using Flowlink software.
- Built-in flow conversions for most applications including Manning formula, flumes and weirs, data points, or equations for special situations.
Manufactured by: Teledyne ISCO
Model: ISCO 710 Doppler Flow Meter Module (Discontinued)
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Flow and level measurements in streams containing suspended solids, grease or harsh chemicals
Collecting flow proportional samples
Trigger 6712 sampler based on flow or level
Monitoring stormwater
Treatment capacity analysis
Long-term river/stream gauging
Combined sewer overflow studies
Specification
| 710 Module | |
| Size (HxWxD) | 4.9 x 5.7 x 2.0 in (12.4 x 14.5 x 5.1 cm) |
| Weight | 1.1 lbs (0.5 kg) |
| Material | Polystyrene |
| Enclosure | NEMA 4X, 6 IP67 |
| Power | 9 to 14V DC (provided by 6700 Series Sampler) |
| Program Memory | Non-volatile, programmable flash; can be updated via interrogator port on 6700 Series Sampler using a PC |
| Operating Temperature | 32° to 120°F (0° to 49°C) |
| Storage Temperature | 0° to 140°F (-18° to 60°C) |
| Ultrasonic Sensor | |
| Dimensions | 2.3 inches diameter x 6 inches long (5.7 x 15.2 cm) |
| Cable Length x Diameter | 25 ft x 0.3 in (7.6 m x 0.8 cm) |
| Weight (incl cable) | 2.1 lbs. (1.0 kg) |
| Materials | Delrin ® housing with PVC cable |
| Enclosure | NEMA 4X, 6; IP67 |
| Level Resolution | 0.013 ft (0.4 cm) [per count of digital timer] |
| Level Measurement Accuracy | A change of less than 1 foot (30.5 cm): ±0.02 ft (±0.6 cm) at 72°F(22°C). A change of 1 to 10 feet (30.5 to 305 cm): ±0.04 ft (±1.2 cm) at 72°F(22°C). The change is relative to the calibration level. |
| Maximum Error due to Temperature | ±0.000085 x (Distance to liquid surface) per °C; ±0.000047 x (Distance to liquid surface) per °F |
| Beam Angle | 10 degrees |
| Range | Minimum 1 foot (30.5 cm) from sensor to liquid at maximum level. Maximum 11 feet (335 cm) from sensor to liquid at minimum level. |
| Deadband | 1 foot (30.5cm) |
| Span | 0 to 10 feet (0 to 305 cm) . |
