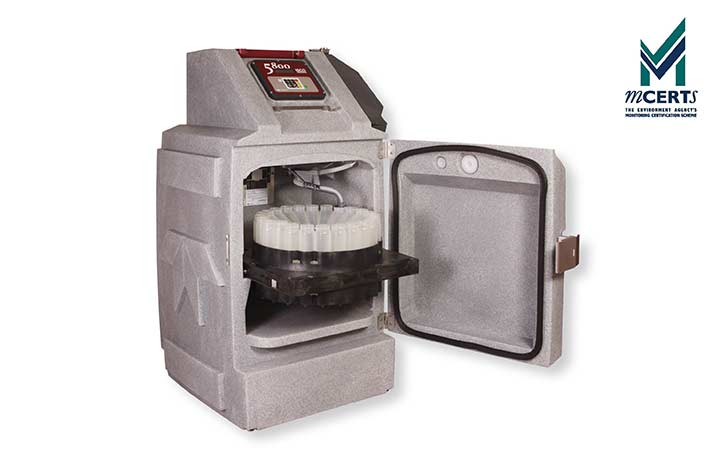

NOTE: The 4700 has now been replaced by the 5800.

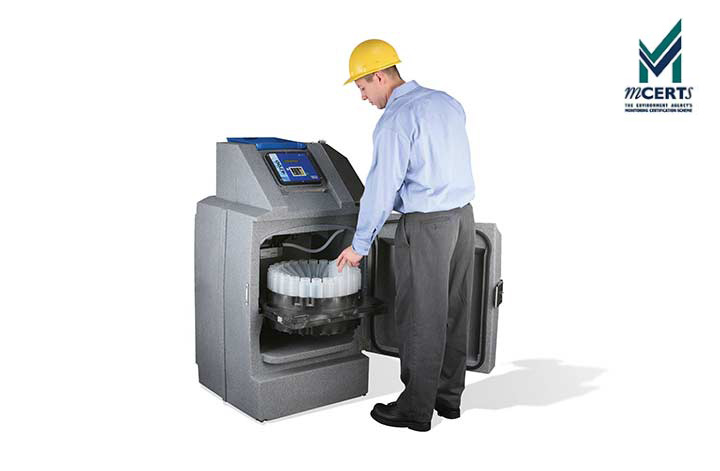

The ISCO 4700 MCERTS wastewater sampler is the ideal choice for stationary sampling in municipal and industrial wastewater applications. Programming and controlling the wastewater sampler is fast and easy. The sampler features a slide out bottle rack which eliminates the need for awkward bending to reach sample containers. The sample compartment temperature is displayed and regulated by the controller and logs a 24 hour summary to confirm proper sample cooling. The temperature logs can be downloaded using a basic utility program such as HyperTerminal.
The 4700 MCERTS Samplers have a tough, double wall LLDPE cabinet which creates a new standard of weather and corrosion resistance. The unit is well insulated to ensure efficient, economical cooling. The refrigeration system is protected by a heat treated polyester powder coating, ensuring long life and reliability in corrosive treatment plant conditions.
Manufactured by: Teledyne ISCO
Model: ISCO 4700 AutoSampler - MCERTS Samplers (now replaced by the 5800)
Versatile sampling modes make the 4700 ideal for wastewater compliance monitoring MCERTS
Uniform time intervals - uniform sample volumes
Uniform time intervals - flow-proportioned sample volumes
Uniform sample volumes - flow-proportioned time intervals
Isco 4700 Refrigerated Sampler | |
Size (H x W x D) | 51 x 28 x 33 in (130 x 72 x 84 cm) |
Weight | (empty) 159 lb (72 kg) |
Bottle Configurations | 12 different configurations available. 24 bottles, 1-liter PP or 350 ml glass; 4 bottles, 10-liter PE or glass; 2 bottles, 10-liter PE or glass; 1 bottle, 20-liter PE or glass; 1 bottle, 10-liter PE or glass; 24 ProPaks, 1-liter wedge-shaped; 1 ProPak, 10-liter round |
Refrigerator Body | Linear low-density polyethylene (LLDPE) |
Power Requirements | 120 VAC, 60 Hz, or 240 VAC, 50 Hz (specify) |
Operational Temperature | -20° to 120°F (-29° to 49°C) |
Pump | |
Intake Suction Tubing | Length - 3 to 99 feet (1 to 30 m); Material - Vinyl or PTFE-lined vinyl; Inside diameter - 3/8 inch (9 mm) |
Pump Tubing Life | Typically 1,000,000 pump counts. |
Maximum Suction Lift | 28 feet (8.5 m) |
Delivered Volume Accuracy | ±10 ml or ±10% of programmed value, whichever is greater. |
Typical Repeatability | ±5 ml or ±5% of the average of the maximum and minimum sample volume in a sample set, whichever is greater, at lifts up to 25 feet. |
Typical Line Velocity @ Head Height (with 3/8-in suction line) | 3.0 ft./s @ 3 ft; 2.9 ft./s @ 10 ft; 2.7 ft./s @ 15 ft. (0.91 m/s @ 0.9 m; 0.87 m/s @ 3.1 m; 0.83 m/s @ 4.6 m) |
Liquid Presence | Non-wetted, non-conductive sensor detects when liquid sample reaches the pump to automatically compensate for changes in head heights. |
Controller | |
Enclosure Rating | NEMA 4X, 6 (IP67) |
Program Memory | Non-volatile ROM. |
Flow Meter Signal Inputs | 5 to 15 volt DC pulse or 25 millisecond isolated contact closure for Isco flowmeters. 4-20 mA input for non-Isco flowmeters. |
Digital Alarms | 4 programmable outputs; 5V, 100 mA |
Number of Composite Samples | Programmable from 1 to 999 samples. |
Software | |
Sample Frequency | 1 minute to 99 hours 59 minutes, in 1-minute increments. 1 to 9,999 flow pulses. |
Sampling Modes | Uniform time, flow proportioned, flow paced. (Flow modes are controlled by external flow meter signal.) |
Programmable Sample Volumes | 10 to 9,990 ml in 1 ml increments. |
Sample Retries | If no sample is detected, up to 3 attempts; user selectable. |
Rinse Cycles | Automatic rinsing of suction line up to 3 rinses for each sample collection. |
Controller Diagnostics | Tests for RAM, ROM, pump, display, and electrical components. |
