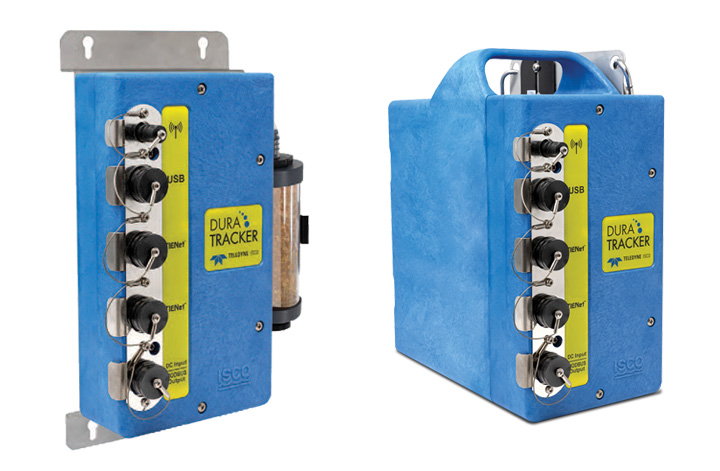

DuraTracker Flowmeter / DuraTracker EX Flowmeter

  • Ex Version Available for Hazardous Areas Areas classified as Class I, Div 1. Zone 0, ATEX Category 1G
  • Bluetooth Communication Bluetooth communication interface with wireless devices
  • Plug and Play Quick connect plug-and-play multiple sensors connectivity: Laser, area velocity and and ultrasonic
Product Options

Overview

The DuraTracker and DuraTracker Ex flowmeters are the most efficient and reliable flow monitoring solution for a wide range of open channel flow measurement applications. They support flow measurement technologies including ultrasonic, non-contact laser area velocity and submerged Doppler area velocity. The DuraTracker package cost-effectively integrates cellular communications and multiple flow technologies within a single module. The standard Bluetooth capabilities make the programming, sensor calibration, and data retrieval job easy through wireless devices. A field upgradable remote cell phone communication option is also available.

Flow is calculated by the DuraTracker, using standard open channel level-to-flow and area velocity conversions, user defined equations, level to area data points, or level to flow data points.

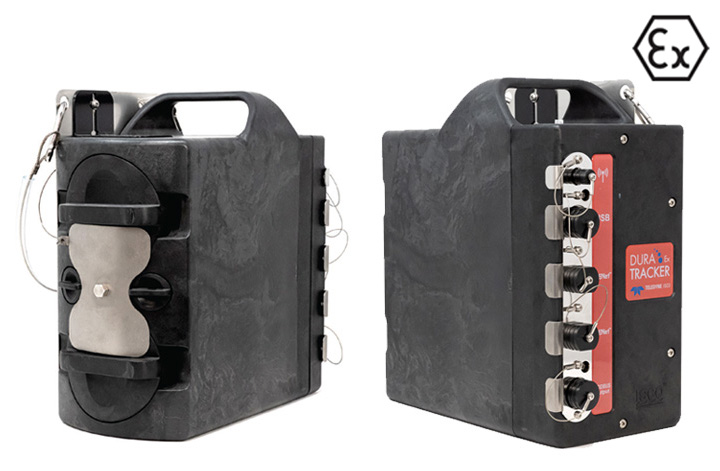

DuraTracker EX Flow Meter

The DuraTracker Ex flowmeter is specifically designed for use in hazardous (Ex) areas classified as Class I, Div 1. Zone 0, ATEX Category 1G. It provides ideal flow monitoring and remote communication solutions for wastewater systems.

Manufactured by: Teledyne ISCO
Model: DuraTracker Flowmeter / DuraTracker EX Flowmeter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

*DuraTracker*
Collection system flow monitoring
Surface water flow monitoring
Industrial pretreatment flow monitoring
WWTP flow monitoring
*DuraTracker Ex*
Collection system flow measurement
Industrial pretreatment flow measurement
Waste Water Treatment Plant flow measurement

Specification

DuraTracker Flowmeter Specifications
Size (H x W x D): DuraTracker: 12.25 x 6.25 x 12.75 in (31.12 x 15.88 x 32.39 cm)
DuraTracker w/o Battery Box 13.375 x 8.625 x 4.5 in (33.97 x 21.91 x 11.43 cm)
Weight DuraTracker 14.3 lbs. (6.49 kg) without batteries
DuraTracker w/o Battery Box 5.3 lbs. (2.4 kg)
Materials ABS, Delrin, Stainless Steel
Enclosure IP68
Temperature Range Operating: -40 to 140 °F (-40 to 60 °C)
Storage: -40 to 140 °F (-40 to 60 °C)
Power Source (each bank) 2 x Alkaline Lantern Batteries
8 x Alkaline D Cell Batteries
4 x Lithium Thionyl Chloride (Low Temperature Applications)
Battery Life:
(1 battery bank)
310 Ex Ultrasonic Sensor: 18 months a
350 Ex AV Sensor: 8 months a
360 Ex LaserFlow Sensor: 9 months a
Power Required DuraTracker: 9-15 Vdc
External Power: 7-28 Vdc

DuraTracker EX Flowmeter Specifications
Size (HxWxD) 12.25 x 6.25 x 12.75 in (31.12 x 15.88 x 32.39 cm)
Weight 16.1 lbs. (7.3 kg) without batteries
Materials ABS, Delrin, Stainless Steel
Enclosure IP68
Temperature Range Operating: -4 to 140 °F (-20 to 60 °C)
Storage: -40 to 140 °F (-40 to 60 °C)
Power Source (each bank) 8 x Alkaline D Cell Batteries
Power Source (each bank) 8 x Alkaline D Cell Batteries
Battery Life (1 battery bank) 310 Ex Ultrasonic Sensor: 12.5 months a
350 Ex AV Sensor: 5 months a
360 Ex LaserFlow Sensor: 6 months a
Power Required 9.5–13.2 Vdc
Certifications without Modem Class I, Division 1, Groups C-D, T4
Class I, Zone 0, AEx ia [ia] IIB T4 Ga
II 1 [1] G Ex ia [ia] IIB T4 Ga -20°C < Tamb < +60°C
Ex ia [ia] IIB T4 Ga -20°C < Tamb < +60°C
Certifications with Modem Class I, Division 1, Groups C-D, T4
Class I, Zone 0, AEx ia ma [ia] IIB T4 Ga
II 1 [1] G Ex ia ma [ia] IIB T4 Ga -20°C < Tamb < +60°C
Ex ia ma [ia] IIB T4 Ga -20°C < Tamb < +60°C

Downloads

Accessories

FAQ's

To view the software version on your DuraTacker, go to the DEVICES TAB once you have connected to the unit. Find your DuraTracker serial number in the list and go across to SOFTWARE VERSION to find your current version number.

The latest software version can be found here.

After updating the software, the DuraTracker unit should be reset. Once the DuraTracker has done a full reboot after the reset, it can be re-programmed.

To find your version number, in Flowlink go to HELP and then select ABOUT FLOWLINK. Version number will appear.

The latest software version can be found here. The Flowlink serial number is needed to complete the download.

Using the latest versions of code for the DuraTracker and/or Flowlink is advised when configuring a DuraTracker. Using old versions of code can result in performance problems/features not being found. To check your current version, please see the other FAQs.
