Rental PT900 Flow Meter
- Next Day Delivery Available* *Mainland UK when paperwork is received by 12 midday (stock permitting)
- Portable Flow Meter with Long Battery Life 18-20 hours continuous operation
- Built-In Datalogger 4 gb of transmitter storage for log files
- Measures a Range of Parameters Measure velocity, volume, mass, totalizer, energy flow rate measurements and more
- Channel Options Option of single or dual channel
Overview
NOTES: Next day delivery on the PT900 is available to mainland UK when rental paperwork is received by 12 midday (stock permitting).

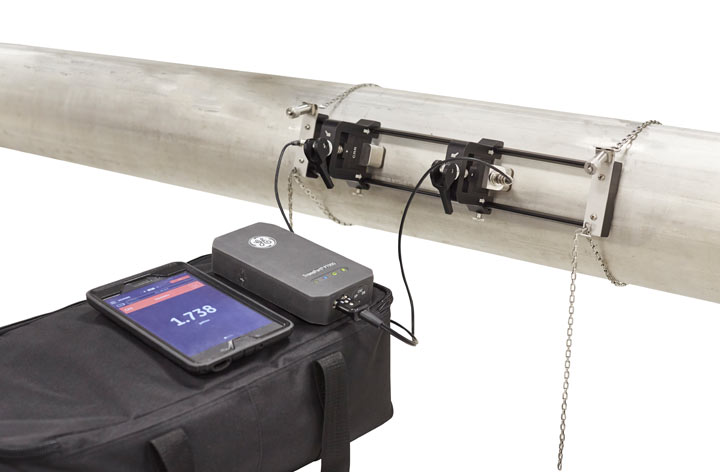

The PT900 clamp-on flow meter supersedes the successful PT878, and builds on its usability, powerful processor and ruggedness . It benefits from a long battery life, versatility, quick clamp system and a large internal memory making it the ideal portable flow meter for a wide range of applications.

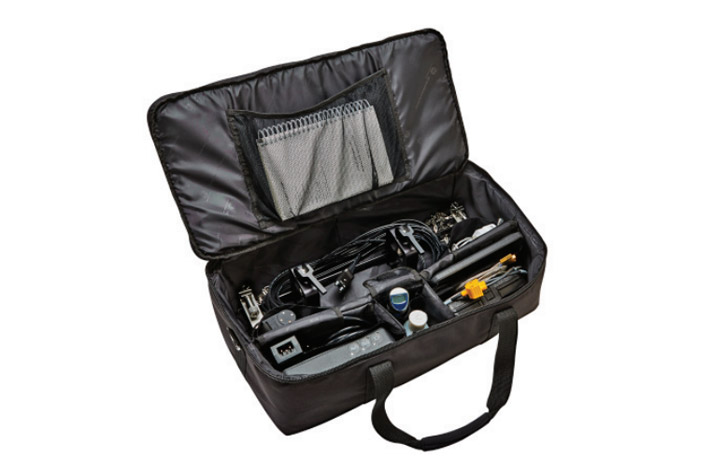

We stock a wide range of accessories and ancillary equipment to be used with the PT900 to suit your application needs.

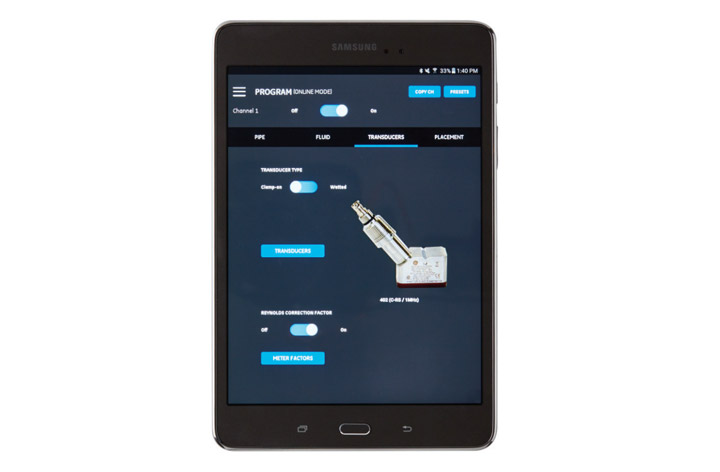

Our rental PT900s are supplied with the tablet to make programming even easier.
How the PT900 improves on the PT878
- Improved battery life
- New quick clamp system
- Bluetooth capability (program the meter from your phone or tablet)
- New improved user interface
Suitable for many types of survey including:
- Energy usage surveys - the PT900 can be combined with an energy kit to make a full energy meter for measuring energy used and lost in heating and cooling systems.
- Leak detection and water usage surveys - the PT900 can be used for monitoring water consumption and for basic leak detection. It can also be used for checking the accuracy of flow meters of different technologies e.g. electromagnetic, mechanical and vortex.
- Chemical dosing - to measure the dosage of chemicals. As there is no contact with the chemical, chemical compatibility or temperature does not cause an issue
Our Rental Service

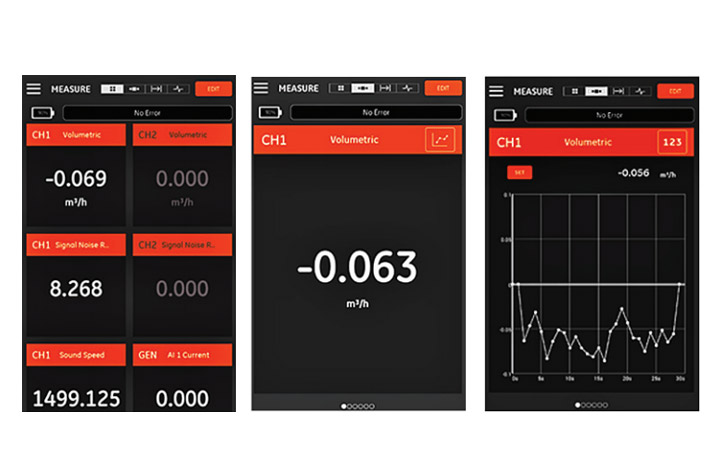

Whatever your experience with ultrasonic flow meters, we are confident that our quick start guides and technical support engineers should be able to get you up and running in minutes. The new and improved user interface makes it easier than ever to program the meter for your application. The app even has a range of instruction videos should you need any extra guidance. These videos can also be viewed in the FAQs section below.
Manufactured by: GE Panametrics
Model: Rental PT900 Flow Meter
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
Applications
Cooling and heating water
Potable water
Wastewater
Water/glycol solutions
Ultrapure water
Crude oil
Refined hydrocarbons
Beverages
Chemicals
Specification
| Operation and Performance | |
| Fluid Types | Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles |
| Flow Measurement | Patented Correlation Transit-Time™ mode |
| Pipe Sizes | Standard: 0.5 to 24 inch (15 to 600 mm) Optional: Upto 300 inch (7500 mm) available upon request |
| Pipe Wall Thickness | Up to 3 inch (76.2 mm) |
| Pipe Materials | All metals and most plastics (Consult RS Hydro for concrete, composite materials and highly corroded or lined pipes) |
| Accuracy | ±1% of reading (2 in / 50 mm or greater pipe sizes) ±2% of reading (0.5 in / 15 mm to <2 in / 50 mm pipe sizes) |
| Installation assumes a fully developed, symmetrical flow profile (typically 10 diameters upstream and 5 diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors. | |
| Repeatability | ±0.2% of reading |
| Range (Bidirectional) | 0.1 to 40 ft/s (0.03 to 12.19 m/s) |
| Response Time | Up to 2 Hz |
| Measurement Parameters | Velocity, volume, mass, energy, total flow |
| Channels | 1 or 2 channels |

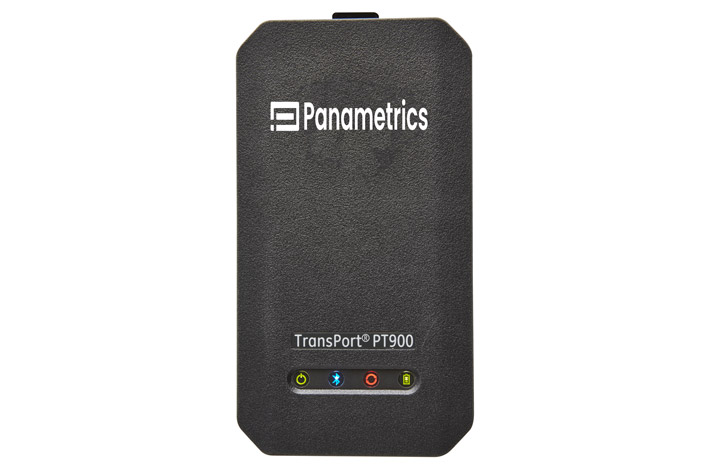

| PT900 Flow Transmiter | |
| Enclosure | IP65 |
| Specifications | Weight: 3 lb (1.4 kg) |
| Analog Inputs | 4-20 mA (qty 2) |
| Analog Output | 4-20 mA (qty 1) |
| Digital Output | Pulse (totaliser), frequency, alarm (qty 1) |
| Digital Communication | Modbus via RS485 port |
| Battery | Type: Lithium Ion (high-energy, rechargeable) Life (continuous operation): 18-20 hours Life (power saver mode): >4 days Charger: 100 to 240 VAC (50/60 Hz) Charging /time: Up to 3 hours (from 0% to 100%) |
| Operating Temperature | Charge: 0 to 45°C (32 to 113°F) Discharge: -20 to 55°C (-4 to 131°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Electronic Classifications | CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010 ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1 WEEE Compliant (Directive 2012/19/EU) RoHS Compliant (Directive 2011/65/EU) |
| User Interface | |
| Display | Requires a tablet. Android operating system (version 4.4 or greater) or iOS operating system (iOS version 11.0 or greater, BLE 4.0 or greater, capacity of 16GB and greater). |
| Dimensions | 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical |
| Battery Life | >12 hours of continuous use |
| Battery Charger | 100 to 250 VAC (50/60 Hz) |
| Communication with Flow Transmitter | Bluetooth® or wired (wired for Android only) |
| Clamp-On Transducers | |
| Temperature Range* | Standard: -40 to 302°F (-40 to 150°C) Optional: -328 to 752°F (-200 to 400°C) See individual transducer model specifications for exact temperature range |

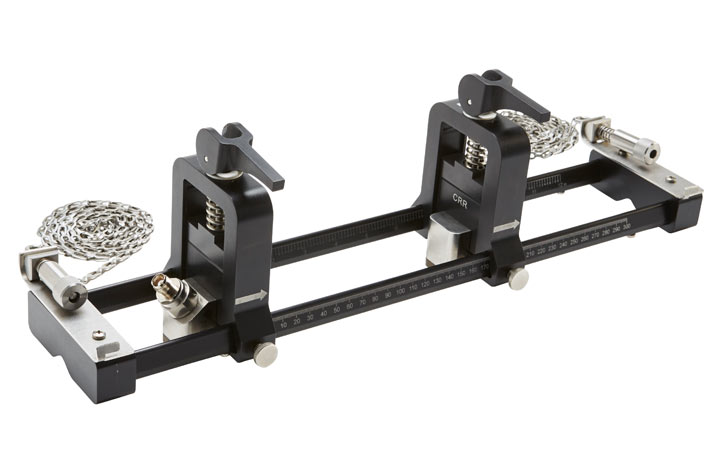

| Mounting | New PT clamping fixture for pipes ≥2 in. (50 mm) CF-LP clamping fixture for 1/2 in. (15 mm) to 2 in. (50 mm) pipes |
| PT9 Transducer Cables | Standard Length: 25 ft (8 m) or RG316 coaxial cable Maximum Length: 100 ft (30 m) of RG316 Temperature Range: -40 to 302°F (-40 to 150°C) |
Downloads
Related products
FAQ's
- Liquid: below 50mm CFLP transducers are required, 50-1000mm CRS-402 transducers and 150-8000mm CRS-401 transducers. All the bits you need can be supplied, and delivered with the meter.
- Gas: below 80mm CRS-402 is required, for 80-300mm the CRS-401/CRV-310 and for above 300mm the CRW-312 transducers are required.
- High temperatures: For liquid we can measure +450degC for liquid and for gas/steam +250degC. But please consult RS Hydro.
