601 Standpipe Piezometers

  • Range of Standard Lengths 15 cm, 30 cm, 60 cm and 90 cm (6 inch, 1 ft, 2 ft and 3ft)
  • Reliable
  • Low Cost
  • Ideal for metal sampling
Product Options
102433

Overview

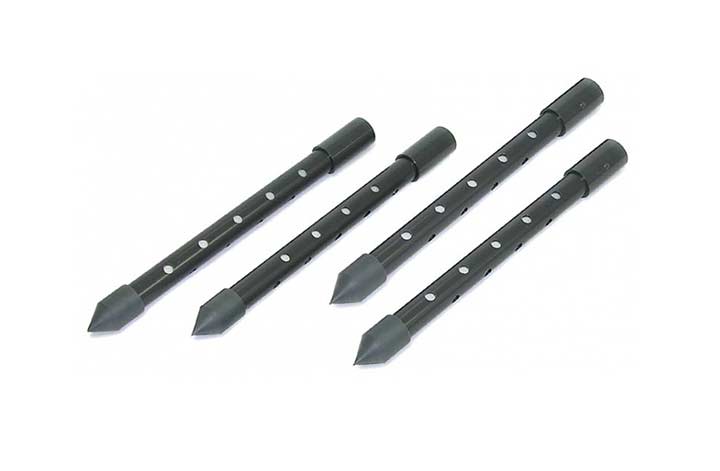

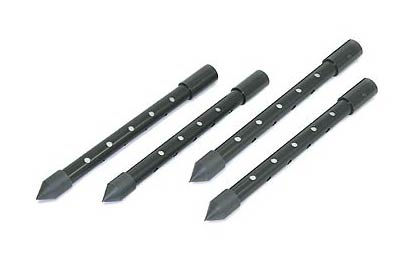

The Model 601 Standpipe Piezometer is designed to provide a filtered inlet point when it is placed within a drilled hole. Its pointed PVC tip makes it ideal for pushing into very loose sands at the base of a borehole, a stream or into loose tailings pond sediments.

It is composed of a pre-formed porous polyethylene tube set inside a perforated PVC Piezometer tip which makes it excellent for metals sampling. It is ideally suited for water level monitoring, de-watering drainage operations, permeability measurements, and construction control and slope stability investigations.

The Standpipe Piezometer tip connects to the surface with 3/4” ID PVC riser pipe using slip-fit couplings. It can also be used to connect to other sizes of riser pipe or casing if reducer couplings are used. The standard 601 lengths available are: 15 cm, 30 cm, 60 cm and 90 cm (6”, 1 ft, 2 ft and 3ft).

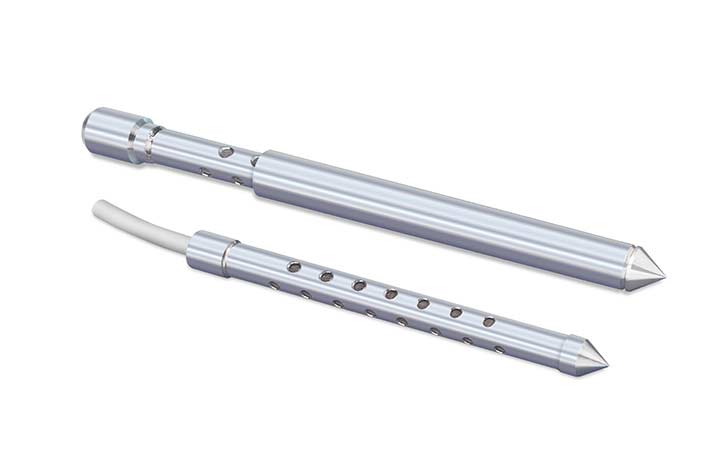

For applications with a need for the Piezometer to be pushed into the soil below the bottom of a borehole, Solinst offer the Model 615 stainless steel Drive-Point Piezometer. This can also be driven directly into the ground from the surface.

Manufactured by: Solinst
Model: 601 Standpipe Piezometers

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Water level monitoring
Permeability measurements
Construction control
Slope stability investigations
Air sparging: a 1ft. Piezometer has 18 x 3/8" diameter holes i.e 2 sq inches/ft
Metals sampling

Specification

Filter - Porous HDPE (Vyon)

- Average pore size 60 microns
- Keeps out silts and fine sands
Standard Lengths Available 15 cm, 30 cm, 60cm and 90 cm (6", 1 ft, 2 ft and 3 ft)

Downloads

Related products

FAQ's

660 Drive-Point Profilers - Drill rig hammers


615 Drive-Point Piezometers – Direct push/drilling methods


601 Standpipe Piezometers – Placed in a borehole or test pit

660 Drive-Point Profilers – Typically the limit is 9m below the water surface.


615 Drive-Point Piezometers – Typically 2-3m in loose deposits.


601 Standpipe Piezometers – Can go as deep as required.

615 Drive-Point Piezometers – Screened tips available in 6” and 1ft lengths. Can have a compression fitting, hose barb, or no barb as well as shielded options.


601 Standpipe Piezometers – Screened tips are available in 6”, 1ft, 2ft, and 3ft. These use a Vyon® filter.

For monitoring water levels:

  • 102 Water Level Meters with 10mm Probe
  • A 1” to ¾” stainless steel reducer coupling to install a Levelogger in a 1” drive extension section.

Sampling options include:

  • 410 Peristatic pump
  • 403 Mini inertial pump
  • Narrow diameter 429 Point-Source Bailer
The 601 and 615 are designed for permanent monitoring. So, neither are reusable, but the 615 can pulled out mechanically. However, grouting is the most favourable method of decommission on both of these pieces of equipment. The 660 Drive-point Profiler is a short-term monitoring point, therefore the hole left behind can be easily grouted using a grout tip Drive-point profiler.
The depth that these can be installed to depends on the material in which they are being installed in. Typically, you will get a deeper installation in peat over other ground materials.
No, Solinst certifies that PFAS is not used, or knowingly present in the manufacturer, or production of their products. www.rshydro.co.uk/files/Solinst-PFAS-Statement.pdf
