Solinst 615 Drive Point Piezometers
- Ideal for Site Investigations
- High Quality Stainless Steel tip
- Completes a simple, very cost effective well
- Drives 20 to 25 ft in suitable soils
Overview
The Model 615 Drive Point Piezometer is designed to provide an inexpensive solution to monitoring shallow groundwater and soil vapour in suitable applications.
Solinst Drive-Point Piezometers can be used for short term monitoring applications, but are more commonly installed as permanent well points.
The Drive-Points attach to inexpensive 20 mm (3/4”) NPT steel drive pipe which is widely available through local plumbing and hardware stores.
When polyethylene or PTFE/FEP lined tubing is attached to the stainless steel drive point, high quality samples can be obtained. Groundwater sampling and hydraulic head measurements can be taken within the tubing using small diameter equipment.
Drive Point Piezometers can be driven into the ground with any direct push or drilling technology, including the Manual Slide Hammer. To avoid smearing of the screen or clogging during installation, a shielded version is also available.

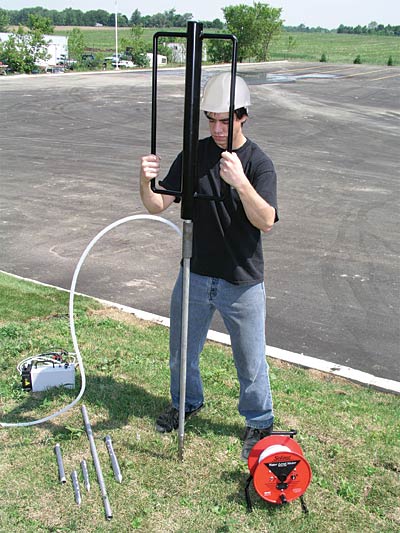

Manual Slide Hammer
The Manual Slide Hammer can be used, in the most inexpensive installations, to install the Drive Point Piezometers. The heavy duty drive head is used, on which the slide hammer impacts and a tubing by-pass ensures that the tubing does not get damaged during installation.
Manufactured by: Solinst
Model: Solinst 615 Drive Point Piezometers
Services offered for this product
- Sales
- Rental
- Installation
- Calibration
- Maintenance
- IoT Cloud Compatible
Applications
Groundwater sampling, including VOCs
Water level monitoring
Base flow monitoring in stream beds
Contaminant plume delineations
Soil gas sampling
UST monitoring
Low cost and minimal disturbance site assessment
Sparge points
Specification
| Material | Stainless steel |
| Filter Screen | 50 mesh cylindrical |
| Drive Pipe Diameter | 3/4” (20 mm) |
Downloads
Related products
FAQ's
660 Drive-Point Profilers - Drill rig hammers
615 Drive-Point Piezometers – Direct push/drilling methods
601 Standpipe Piezometers – Placed in a borehole or test pit
660 Drive-Point Profilers – Typically the limit is 9m below the water surface.
615 Drive-Point Piezometers – Typically 2-3m in loose deposits.
601 Standpipe Piezometers – Can go as deep as required.
615 Drive-Point Piezometers – Screened tips available in 6” and 1ft lengths. Can have a compression fitting, hose barb, or no barb as well as shielded options.
601 Standpipe Piezometers – Screened tips are available in 6”, 1ft, 2ft, and 3ft. These use a Vyon® filter.
- 1ft screened extensions to lengthen the screened intake, with or without a barb
- 25lbs slide hammer
- A drive head assembly, including a drive head, 2 ft drive extension and a tubing bypass for installing with tubing
- Sample tubing is a barb or compression fitting is being used (so sample water/vapour does come into contact with the pipe extensions)
For monitoring water levels:
- 102 Water Level Meters with 10mm Probe
- A 1” to ¾” stainless steel reducer coupling to install a Levelogger in a 1” drive extension section.
Sampling options include:
- 410 Peristatic pump
- 403 Mini inertial pump
- Narrow diameter 429 Point-Source Bailer
