Model 107 TLC

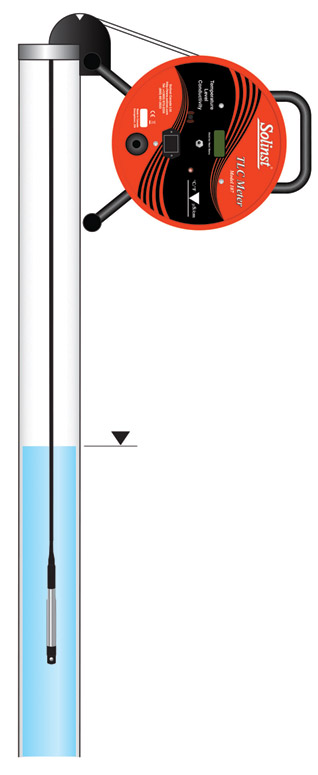

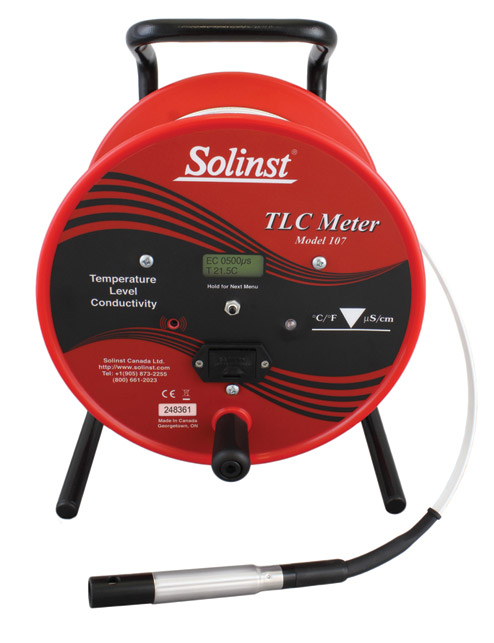

The TLC Meter is ideal for profiling conductivity and temperature in wells and open water. It displays accurate measurements of conductivity and temperature on a convenient LCD display.

Conductivity measurements are read from 0-80,000 µS/cm with readings giving accuracy of 5% of reading or 100 µS (which ever is greater).

Water level and probe depth measurements are read off the Solinst durable flat tape, which is accurately laser marked each millimeter or every 1/100 ft. Tape lengths are available up to 300 m (1000 ft).

For automated water level, temperature, and conductivity datalogging, Solinst also offers the Levelogger 5 LTC. (See the Model 3001 Levelogger 5 LTC Data Sheet).

Water Conductivity Measurements

The TLC Meter uses a ‘smart’ conductivity sensor with platinum electrodes to measure conductivity. The conductivity is displayed on the screen along with the associated temperature measurement. The ‘smart probe’ displays conductivity that has been standardized to 25°C, i.e. Specific Conductance (displayed as EC). The conductance temperature coefficient is 2.0% per °C.

Calibration is simple, using 1413 µS, 5000 µS, 12,880 µS, and/or 80,000 µS solutions for 1, 2, 3, or 4 point manual conductivity calibrations.

Water Temperature Measurements

The TLC Meter operates in a range from -15ºC to +50ºC (23ºF to 122ºF). You may choose to have the readings displayed on the LCD screen in ºC or ºF. Accuracy is +/- 0.2°C in Celsius, or +/- 0.4°F in Fahrenheit. The ‘smart’ TLC probe automatically adjusts the measured conductivity values to display as specific conductance standardized to 25ºC. This provides standardized, repeatably comparable measurements.

When the probe is turned on, the LCD screen displays both conductivity and temperature.

Manufactured by: Solinst
Model: Model 107 TLC
