Solinst Levelogger 5 LTC

  • Increased memory 100,000 sets of data
  • More stable communication Single-eye optical, easy to clean, more scratch resistant
  • Better thermistor and conductivity sensitivity Upgraded platinum RTD and conductivity sensor
Product Options
Desktop Reader 5
Field Reader 5
Barologger 5 Datalogger

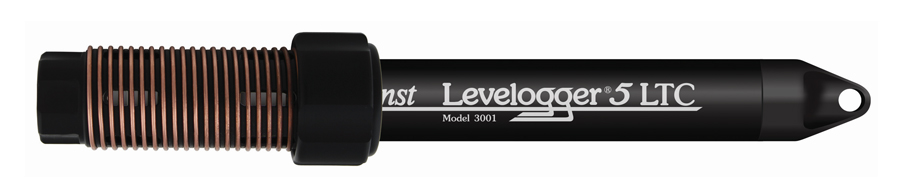

3001 BioFoul Screen
Kevlar Cord
Stainless Steel Cable

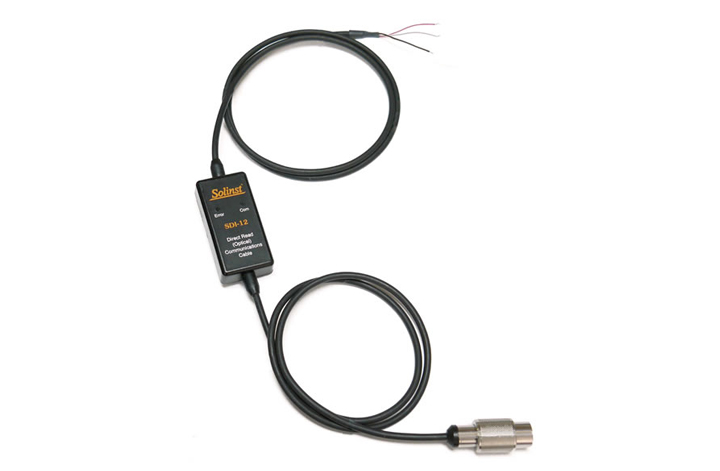

SDI-12 Interface Cable
Solinst Levelogger Direct Read Cable
Levelogger 5 App & App Interface
3001 DataGrabber 5
LevelSender 5
L5 to Edge DRC Adapter
Edge-L5 DRC Adapter
4001 SRU Solinst Readout Unit
Artesian Well Fitting Assembly
114609

Overview

The Levelogger® 5 LTC logs water level, temperature, and conductivity. It combines a datalogger, 8-year battery, Hastelloy® pressure sensor, temperature detector, and conductivity sensor within a small waterproof housing, 22 mm x 208 mm (7/8" x 8.2"). A baked-on coating using polymerization technology protects the body against corrosion, abrasion and high temperatures. The conductivity sensor is a 4-electrode platinum sensor, with autoranging capabilities. The minimal-maintenance, sealed Levelogger 5 LTC is simple to clean and calibrate, even in the field.

User-Friendly Operation

Software Calibration and Data Wizards guide you through conductivity calibration and barometric compensation, ensuring accurate data sets. The Data Wizard also converts conductivity readings to Specific Conductance (@ 25ºC).

Levelogger Software allows you to easily program your preferences, download data, and display data in a graph or table format or export to other programs. Real Time View allows immediate viewing of live water level, conductivity, and temperature readings.

Leveloggers are easy to deploy; install with direct read cables or wireline/cord suspension. The Levelogger 5 LTC is SDI-12 compatible using the Solinst SDI-12 Interface Cable.

Download data in the field using the new Field Reader 5, DataGrabber 5 USB data transfer device, or through Bluetooth® using the Levelogger 5 App Interface and your smart device. Integrate the Levelogger 5 LTC with Solinst Telemetry Systems, which use the latest wireless technologies.

Manufactured by: Solinst
Model: Solinst Levelogger 5 LTC

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance
  • IoT Cloud Compatible

Applications

Salt water intrusion and soil salination monitoring
Plume remediation monitoring and studies
Leachate monitoring at landfills, mine tailings, waste disposal storage sites, and more
Agricultural and storm water runoff monitoring
Create a historical database for potable water supply monitoring
Tracer tests

Specification

Levelogger 5 LTC Specifications
Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Ranges: 5, 10, 20, 30, 100, and 200 m
Accuracy: ±0.05% FS
Resolution: 0.001% FS to 0.0006% FS
Units of Measure: cm, m, ft, psi, kPa, bar (ºC, ºF)
Normalization: Automatic Temperature Compensation
Temp Comp. Range: 0ºC to 50ºC
Temperature Sensor: Platinum Resistance Temperature Detector (RTD)
Accuracy: ±0.05ºC
Resolution: 0.003ºC
Conductivity Sensor: 4-Electrode Platinum
Full Range: 0 – 100,000 µS/cm
Calibrated Range: 50 – 80,000 µS/cm
Accuracy: ±1%: 5,000 µS/cm – 80,000 µS/cm; greater of ±2% or 15 µS/cm: 50 µS/cm –5,000 µS/cm
Resolution: ±0.1 µS/cm
Temp Comp. Range: 0ºC – 50ºC
Normalization: Specific Conductance @ 25°C
Battery Life: 8 Years (1 reading every 5 minutes)
Clock Accuracy (typical): ±1 minute/year (-20ºC to 80ºC)
Operating Temperature: -20ºC to 80ºC
Maximum Readings: 100,000 sets of readings
Memory: Slate or Continuous
Communication: Optical high-speed: 57,600 bps with USB
Size: 22 mm x 208 mm (7/8" x 8.2")
Weight: 197 grams (6.95 oz)
Corrosion Resistance: Baked-on coating using polymerization
Wetted Materials: Platinum, Delrin®, Viton®, 316L Stainless Steel, Hastelloy, Regulator approved PFAS-free PTFE (inside and out)
Sampling Mode: Linear, Event & User-Selectable with Repeat Mode, Future Start, Future Stop, Real-Time View
Measurement Rates: 2 seconds to 99 hours
Barometric Compensation: Software Wizard and Barologger 5

Downloads

Accessories

Related products

FAQ's

As the Levelogger App Interface will not connect directly to the top of a Solinst datalogger, it is necessary to have connection accessories. With the Levelogger or Rainlogger, one of the following accessories is required:

  • Direct Read Cable, clients use this option to suspend dataloggers in the field when they wish to communicate downhole.
  • When working with Leveloggers that are suspended from wireline, or cord, the units must be removed from the well and connected to either a Direct Read Cable (as above) or an Optical Adaptor.
  • For the LevelVent, just connect to the unit via the Vented Cable and LevelVent Wellhead that all units are suspended from in the field – no other connection accessories are required.
  • The AquaVent communication connection is made from the App Interface to the AquaVent Wellhead using an App Connector Cable that is ordered separately.
The Levelogger App Interface is portable hardware that connects to the top of your Levelogger via a Direct Read Cable/Adaptor, to a LevelVent Wellhead, or to an AquaVent Wellhead cable. Bluetooth wireless technology allows communication between the Levelogger App Interface and the smart device with the app installed. It allows viewing/downloading of data, and programming of Solinst dataloggers, as well as many other features.
Solinst offers a wide range of dataloggers that can be used with the Leveloggger App Interface. They include the complete, current Levelogger Edge range of units (Edge, Junior Edge, LTC Edge, Rainlogger Edge), previous Gold Leveloggers/Barologgers, and the latest vented datalogger editions, the AquaVent and LevelVent.
  • Program and start dataloggers in the field.
  • Simplify data management in the field by transporting and using less equipment.
  • View real-time readings.
  • Download and e-mail logged data files.
  • Calibrate LTC Leveloggers (NEW).
  • Run the diagnostic utility (NEW) – used for troubleshooting

Leveloggers. Provides detailed information on the datalogger,
and includes options for running a self-test, doing a memory
dump and creating/emailing reports.

The most recent version of the Android App available is 1.2.5 but that is only available for download if your Android device has Android version 8 (oreo) or above. That means, any device running older Android versions can not download the most recent App-This is a restriction that Google has set.

Drivers checkup:

  1. Go to Control Panel
  2. Open Device Manager and look for the Optical Reader listed under “ports” or “other devices”. It will show up with an exclamation mark. To make sure you are looking at the right device, unplug it and plug it back in, the Optical Reader will disappear and appears from the list.
  3. Right click on the device
  4. Click on Update Driver Software (you must have Admin rights to do this, if not, ask to your IT Dept)
  5. Click on Browse My Computer
  6. The folder that contains the drivers should be highlighted in blue in the address bar. The right address should be C: Program Files x86 / Solinst / Levelogger 4_4 / Drivers. If this is not the address you see, click on Browse button and look for the Solinst folder: C: Program Files x86 / Solinst / Levelogger 4_5 / Drivers. Do not go any further, don’t select any subfolder under Drivers. Click OK.
  7. Make sure “include subfolders” check box below the address bar is checked
  8. Click Next
  9. At this time Windows should start installing the drivers from the correct folder.
  10. When finish, go back to Device Manager. If the device was previously listed under “other devices”, it will be now listed under “ports” as USB Serial Port (COM#) assigned.
  11. Please repeat the steps from 3 to 8 to make sure it was installed properly.
  12. Close Device Manager and go to Solinst Software. The USB Serial Port (COM#) assigned should be in the drop menu.
No, Solinst certifies that PFAS is not used, or knowingly present in the manufacturer, or production of their products. www.rshydro.co.uk/files/Solinst-PFAS-Statement.pdf
Yes, by using the Solinst Artesian Well Fitting Assembly, wells with pressures up to 30 psi (66 ft. (20 m)) of water column can be measured.
