Solinst 102 Water Level Meter- With New Laser Marked yellow Cable

  • New cable upgrade Features the upgraded yellow laser-marked cable
  • Highly Accurate And Reliable Readings Laser etched markings every millimetre, accurate & traceable to national standards
  • Affordable Solinst Quality Built from rugged, hardwearing corrosive proof components and strong coaxial cable
Product Options

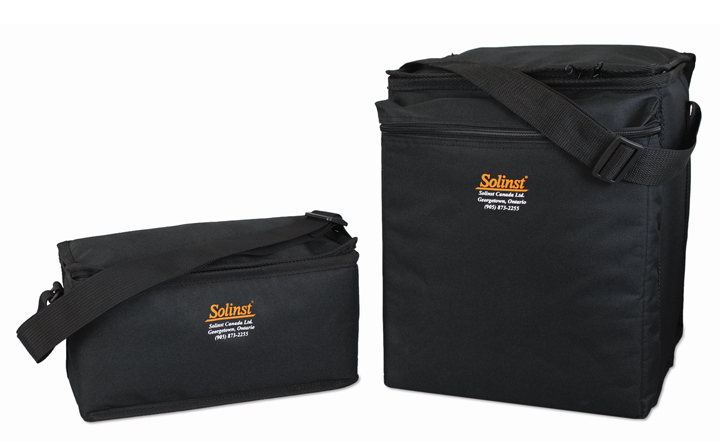

Carry Case Required
114914

Overview

The Solinst Model 102 Water Level Meter is designed to measure groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past down hole instrumentation.

Also available from Solinst, are the Model 101 and 101B Water Level Meters, which feature easy-to-read, easily repaired flat tape. (See Model 101 Water Level Meter Data Sheets).

Operating Principles

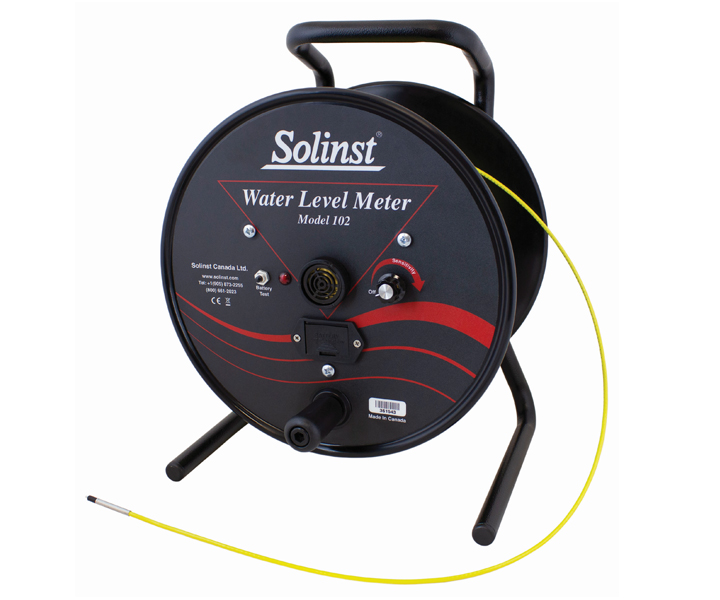

The Model 102 Water Level Meter uses a choice of two small diameter probe designs, attached to a narrow coaxial cable, fitted on a sturdy ergonomically designed reel. A standard 9 volt battery, housed in an easy-access battery drawer, powers the Water Level Meter.

When the probe enters water the electrical circuit is completed, sending a signal back to the reel where a light and clearly audible buzzer are activated. The water level is then determined by taking a reading directly from the cable at the top of the well casing or borehole.

A sensitivity control allows the buzzer to be scaled back or turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.

Narrow Diameter Probes

Model 102 Probes are designed for flexibility. The probe tips use a recessed design to minimize false signals in cascading water.

P10: 10 mm dia. x 70 mm long (3/8" x 2.75") stainless steel with 10 stainless steel weights, weighing 174 g (6.14 oz). This probe is ideal for the majority of water level measurement applications. The flexible weight assembly allows easy well access and keeps the cable hanging straight in monitoring wells.

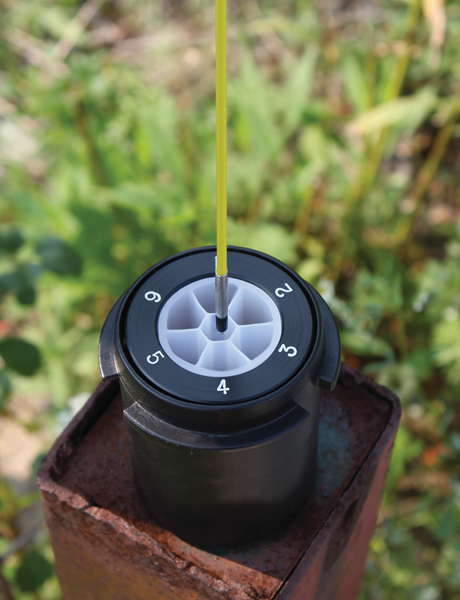

P4: 4 mm dia. x 38 mm long (0.157" x 1.5") stainless steel weighing 10 g (0.35 oz), with no weights. It is ideal for shallow applications and for accessing very narrow diameters, especially the channels of the Solinst CMT System, DrivePoint Piezometers or narrow open tubes.

Manufactured by: Solinst
Model: Solinst 102 Water Level Meter- With New Laser Marked yellow Cable

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Specification

Probes

Model 102 Probes are designed for flexibility. The PTFE/FEP tip uses a recessed design to minimize false signals in cascading water.

P4 4 mm x 38 mm long (0.157” dia. x 1.5”) stainless steel weighing 10 g (0.35 oz). It is ideal for accessing narrow diameters, especially the channels of a Solinst CMT System.
P10 10 mm x 70 mm long (3/8” dia. x 1.5”) stainless steel with 10 stainless steel weights, weighing 174 g (6.14 oz). This heavier probe assembly is ideal for greater depths.
Length Options Solinst Model 102 Water Level Meters are available on reels in the following
standard lengths:
Mini Reel 25 m / 80 ft
Small Reel 30 m / 100 ft
60 m / 200 ft
100 m / 300 ft
150 m / 500 ft
250 m / 750 ft
300 m / 1000 ft
