102M Mini Laser Marked Dip Meter

  • Accurate Markings precisely every 1/100ft. or mm
  • Robust Built from rugged, corrosion proof components
Product Options
Carry Case Required
114864

Overview

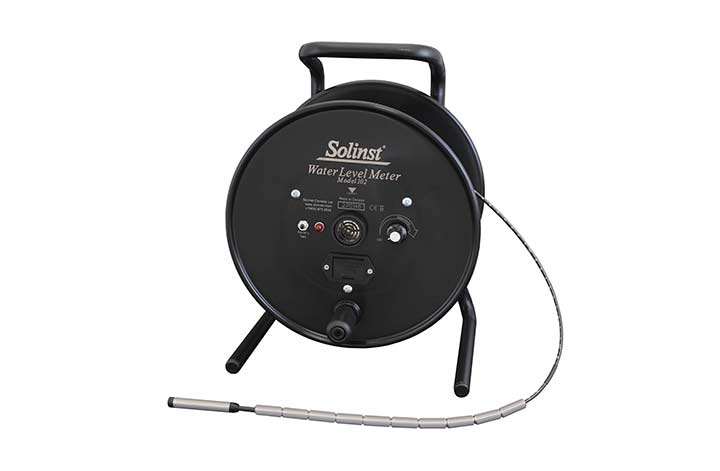

The Solinst 102M Mini Dip Meter is a convenient 25m laser marked water level indicator on a small light-weight reel which can be stored in a small bag. The accurate cable is marked each 1/100 ft. or each millimeter. The 102M Mini Water Level Dip Meter is available on a 25m reel. The dip meter is available with P4 or P10 Probes and segmented weights.

Features

  • Built from rugged, corrosion proof components
  • 0.157" (4 mm) diameter probe
  • Precise, accurate laser markings to each millimeter

Narrow Diameter Probes

Model 102 Probes are designed for flexibility. The probe tips use a recessed design to minimize false signals in cascading water.

P10: 10 mm dia. x 70 mm long (3/8" x 2.75") stainless steel with 10 stainless steel weights, weighing 174 g (6.14 oz). This probe is ideal for the majority of water level measurement applications. The flexible weight assembly allows easy well access and keeps the cable hanging straight in monitoring wells.

P4: 4 mm dia. x 38 mm long (0.157" x 1.5") stainless steel weighing 10 g (0.35 oz), with no weights. It is ideal for shallow applications and for accessing very narrow diameters, especially the channels of the Solinst CMT System, DrivePoint Piezometers or narrow open tubes.

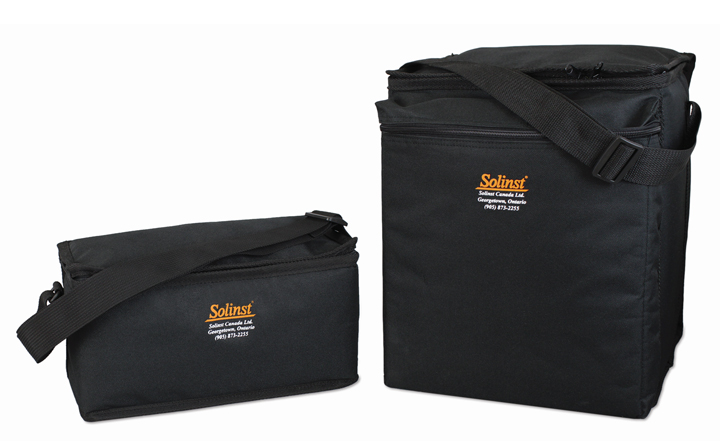

An optional carry case is available to purchase separately.

Manufactured by: Solinst
Model: 102M Mini Laser Marked Dip Meter

Services offered for this product

  • Sales
  • Rental
  • Installation
  • Calibration
  • Maintenance

Applications

Narrow diameter boreholes
Tank measurement

Specification

Probes Model 102 Probes are designed with segmented weights for flexibility. The PTFE/FEP tip uses a recessed design to minimize false signals in cascading water.
P4 4 mm x 38 mm long (0.157" dia. x 1.5") stainless steel weighing 10 g (0.35 oz). It is ideal for accessing narrow diameters, especially the channels of a Solinst CMT System.
P10 10 mm x 38 mm long (3/8” dia. x 1.5”) brass 10 mm x 70 mm (3/8" dia. x 2.75") stainless steel with 10 stainless steel weights, weighing 174 g (6.14 oz). This heavier probe assembly is ideal for greater depths.
Mini Reel Tape Length 25 m / 80 ft
